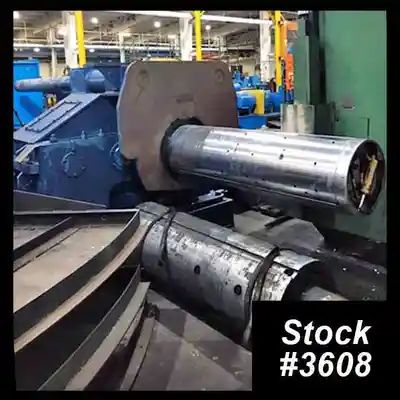

40,000 Lb. x 60″ COMEQ STAMCO Recoiler

SPECIFICATIONS:
Maximum Coil Weight: 40,000 Lbs.
Drum Diameter: 20″ x 24″
Drum Face: 68″
Gripper Slot: 67″
49″ to Top of Mandrel
Main Gear Box Ratio: 24:1
EQUIPPED WITH:
Hydraulic Strip Clamp
Hydraulic Push Off
Pneumatic Overarm Separator, 53″ Length
Gear Box: 2 Speed
Motor: 100H, D.C. 500V, 650-1950 RPM
Speed: 200 and 400 FPM (60-121 MPM)
Line Direction: Right to Left

EQUIPPED WITH: Hydraulic Strip Clamp Hydraulic Push Off Pneumatic Overarm Separator, 53″ Length Gear Box: 2 Speed Motor: 100H, D.C. 500V, 650-1950 RPM Speed: 200 and 400 FPM (60-121 MPM) Line Direction: Right to Left
