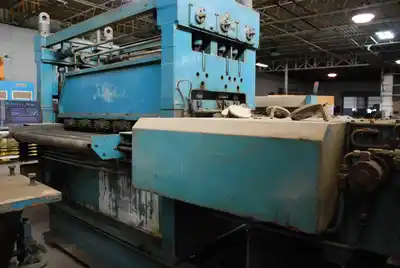

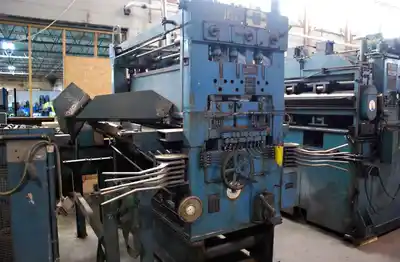

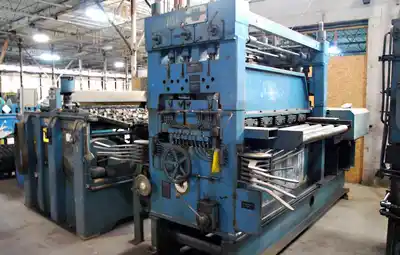

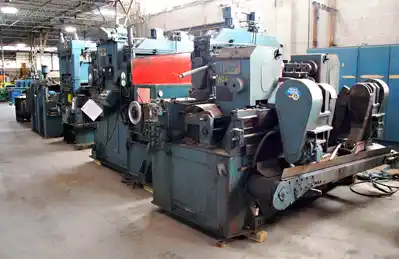

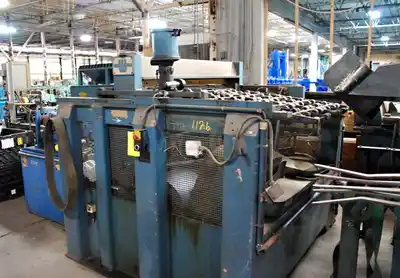

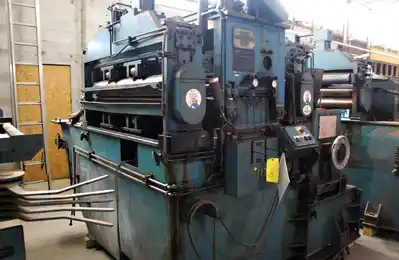

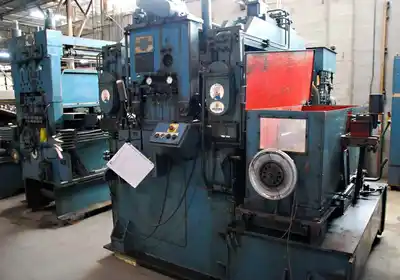

51″ WILHELMSBURGER Cut To Length Line

SPECIFICATIONS:
Maximum Width: 51" (1300 mm)
Minimum Width: 16" (400 mm)
Gauge Thickness: .080" (2.00 mm)
Line Speed: 96 FPM (30 M/Min.)
Maximum Cut Length: 10′ (3 M)
Entry Pinch Rolls
Hydraulically Operated Entry Pinch Rolls Backed Up Over 2 Flights
Edge Trimmer:
Width: 16" – 52" (400 mm – 1300 mm)
Arbor Diameters: 3.15" (80 mm)
Cutter Detail: 7.87" x .80" (200 mm x 20 mm)
Speed: 96 FPM (30 M/Min.)
Gauge: .020" – .080" (0.63 mm – 2 mm)
Leveler:
Maximum Width: 51" (1300 mm)
Minimum Width: 16" (400 mm)
Type: 8 Roll (4 over 4)
Work Roll Dia.: 2.25" (55 mm)
Back Ups: 3 Flights Top and Bottom
Electric Screwdowns:
Driven Pinch Rolls: 5-1/2" (140 mm) Dia. Entry and Exit
Hydraulically Operated and Backed Up
Over 2 Flights
Flying Shear:
Travel: 52" (1320 mm)
Gauge Thickness: .080" (2.00 mm)
Fully Automatic Upcut Flying Shear Matched to Leveler
Electrical:
Dedicated Modern Electrical Control Gear Offering All the Facilities of a Fully Automated Cut to Length.
WILHELMSBURGER Sheet Leveler:
21 Roll Precision Sheet Leveler (11 over 11)
Work Roll Diameter: 1.38" (35 mm)
Back Ups: 5 Flights Top & Bottom
Roll Face Width: 51" (1300 mm)
Maximum Capacity: 060" (1.5 mm)
Line Speed: 13 – 42 M/Min.
Screwdown: Manual c/w DTI Readouts
Back Up Rolls Adjustment: Manual to All Bottom Flights
Main Drive: 22 Kw, 1460 RPM
Pass Line Height: 1225 mm
Full Roll Banking & Tilting Facility in 2 Sections Over 3 Sets of Work Rolls and 8 Sets of Work Rolls Respectively.
NOTE: No Uncoiler is included in this line
OVERALL DIMENSIONS: Multiple Pieces, 2 Truckloads
APPROXIMATE WEIGHT: 65,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
