| Dimensions | Cut Off: 7′ x 4′ x 4-1/2′ | Cut Off: 7′ x 4′ x 4-1/2′ |
| Weight | Cut-Off: 5,155 Lbs. | Cut-Off: 5,155 Lbs. |
SPECIFICATIONS:
Maximum Tube Diameter: 2-1/2"
Maximum Wall Thickness: .095"
Cutting Stroke: 4"
Maximum Strokes Per Minute: 50
Maximum Stock Speed: 150 FPM

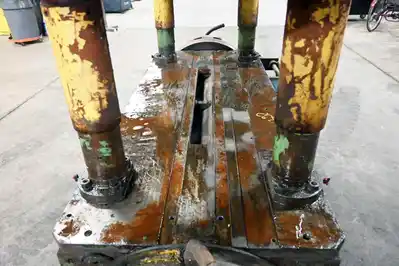

Bottom Die Rails: 58-1/2" x 6"
Maximum Sheet Width: 36"
Post Diameter: 3-3/4"
Distance Between Posts: 40-1/2" (Left – Right), 13-1/2" (Front – Back)
EQUIPPED WITH:

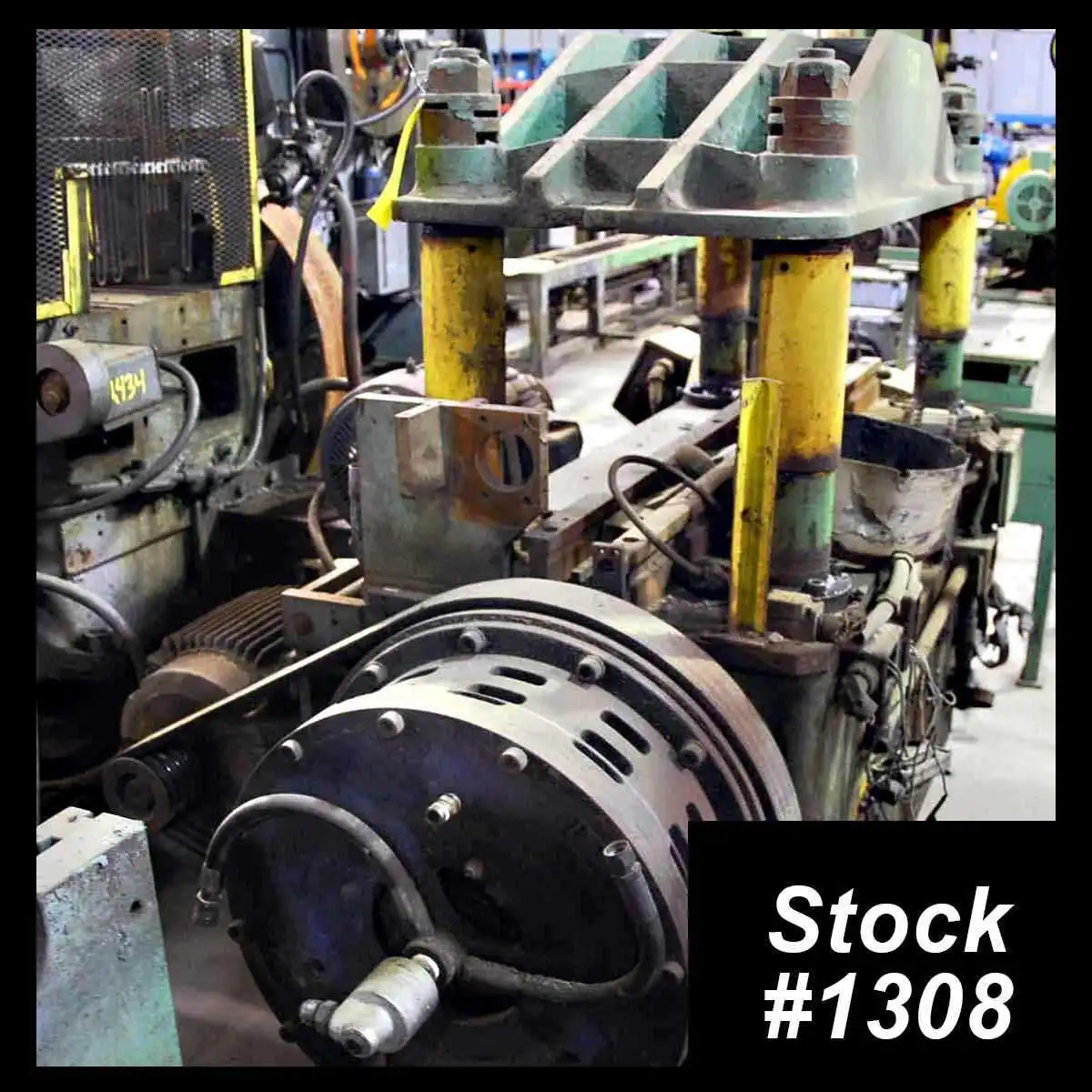

WICHITA Air Tube Clutch
Gemco Rotary Limit Switch
RELIANCE AC Motor, 15 HP, 160 RPM, 230 / 460 / 3 / 60
OVERALL DIMENSIONS:
Cut Off: 7′ x 4′ x 4-1/2′
Hydraulic Tank: 4′ x 3′ x 4′
APPROXIMATE WEIGHT:
Cut-Off: 5,155 Lbs.
Hydraulic Tank: 1,940 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: WICHITA Air Tube Clutch Gemco Rotary Limit Switch RELIANCE AC Motor, 15 HP, 160 RPM, 230 / 460 / 3 / 60
