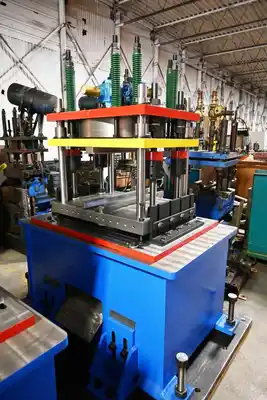

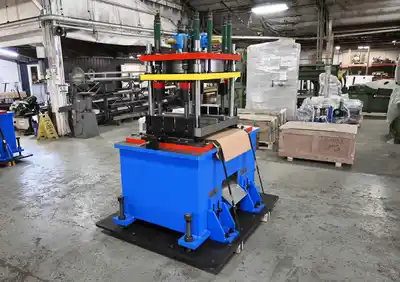

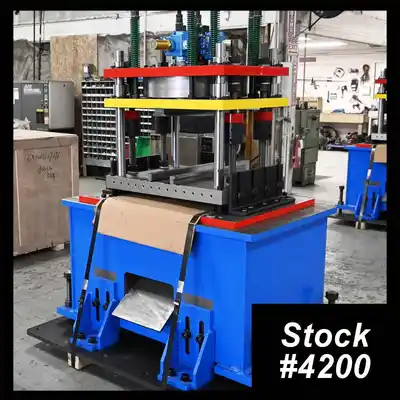

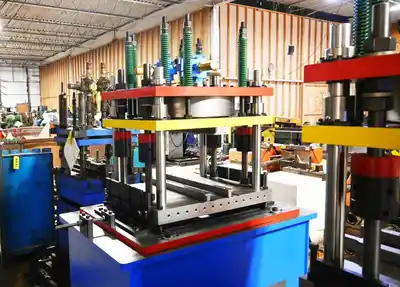

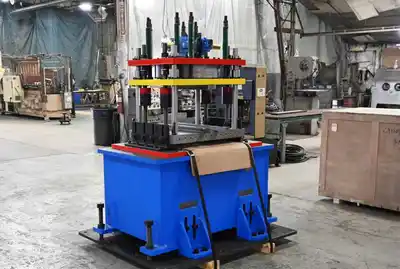

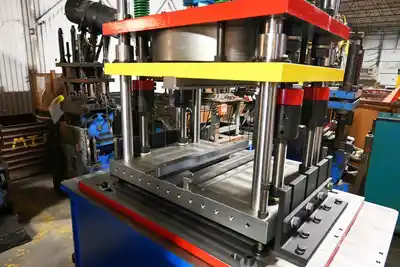

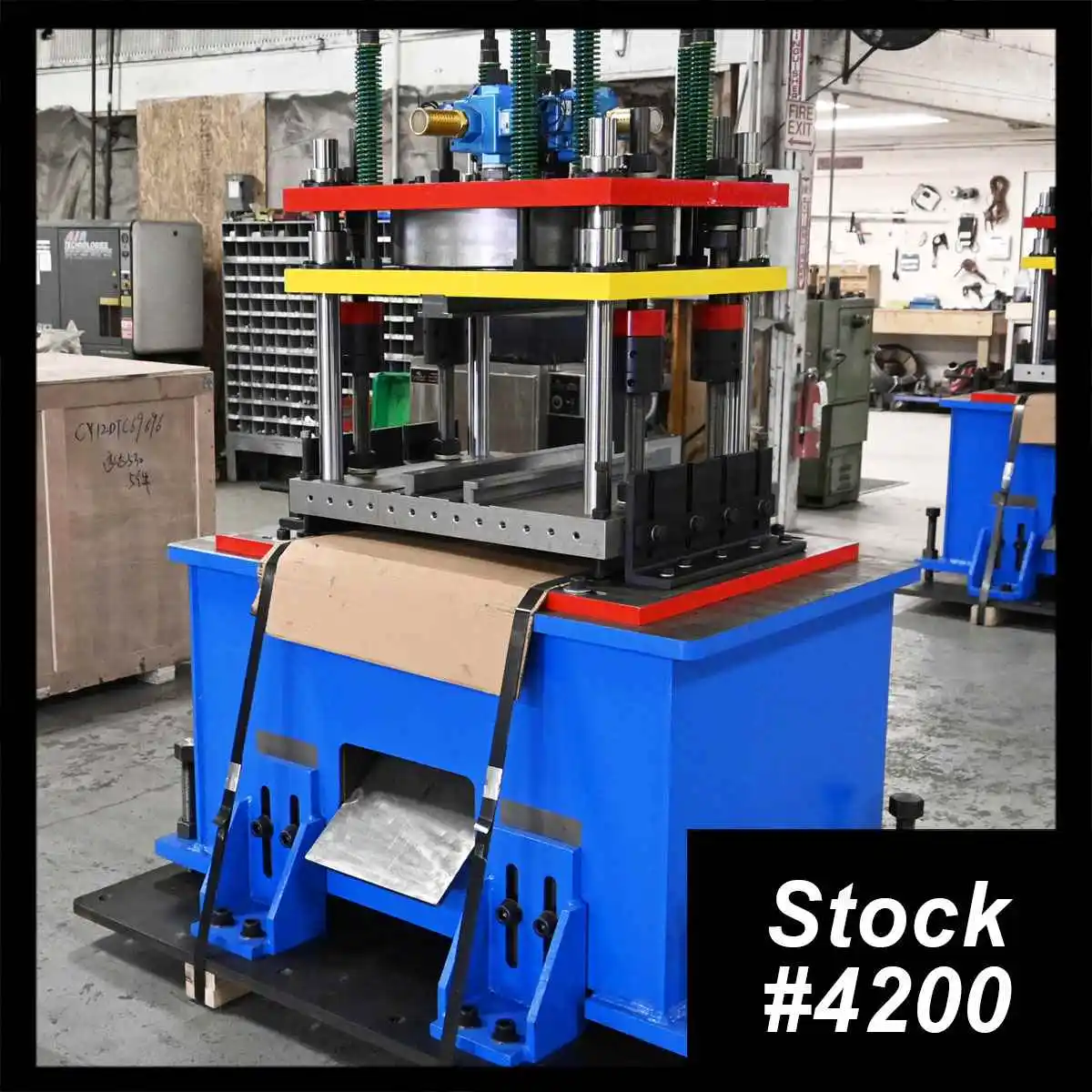

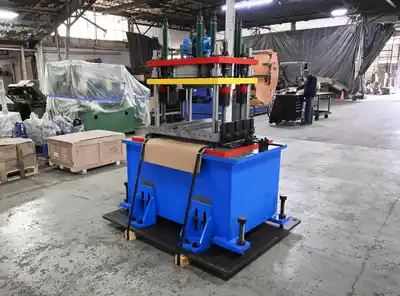

New 30 Ton x 3″ UCG 4-Post Pneumatic Cut-Off Press

SPECIFICATIONS:
Capacity: 30 Ton
Stroke: 3″
Distance Between Posts: 36″
Bolster Plate with slug drop 2.75″ x 24″ x 32″ with 3 different rail positions.
Ram Plate 1.75″ x 24″ x 32″ with slot For T rail plate.
Top plate 1.75″ x 24″ x 32″.
(2) Lower Press Rails 1.5″ x 1.625″ x 27″
Upper Press Rail T shape 1.75″ x 6″ x 24″
(8) Lamina Bushings.
30 Ton Piston 20″ diameter X 4.38″ long.
30 Ton Cylinder 20″ diameter x 22″.
(4) Threaded Rods 1.5″-12 x 31″ long for shut height adjustment.
(8) 4 diameter Nuts for shut adjustment.
(4) Neoprene Bumpers for Ram shut height stops.
(8) 2″ diameter x 12″ Springs for ram return.
(3) Mac Valves with brackets.
Slide plate for front to back adjustments.
(2) Heavy duty angle iron on sides of press for vertical adjustments.
All necessary hardware including grade 8 screws, nuts, and threaded rod.
Welded base with 1.25″ top plate approximately 32″ tall x 42″ x 54″.
Welded Plate Honey Comb Construction.
Slug hole in top plate.
Welded Chute for Slug Evacuation.
Welded Angle Plates for mounting to floor or plate and adjustment.
Floor Plate with anchor holes and necessary taps.
LOCATION: Universal Warehouse, Perrysburg, Ohio
