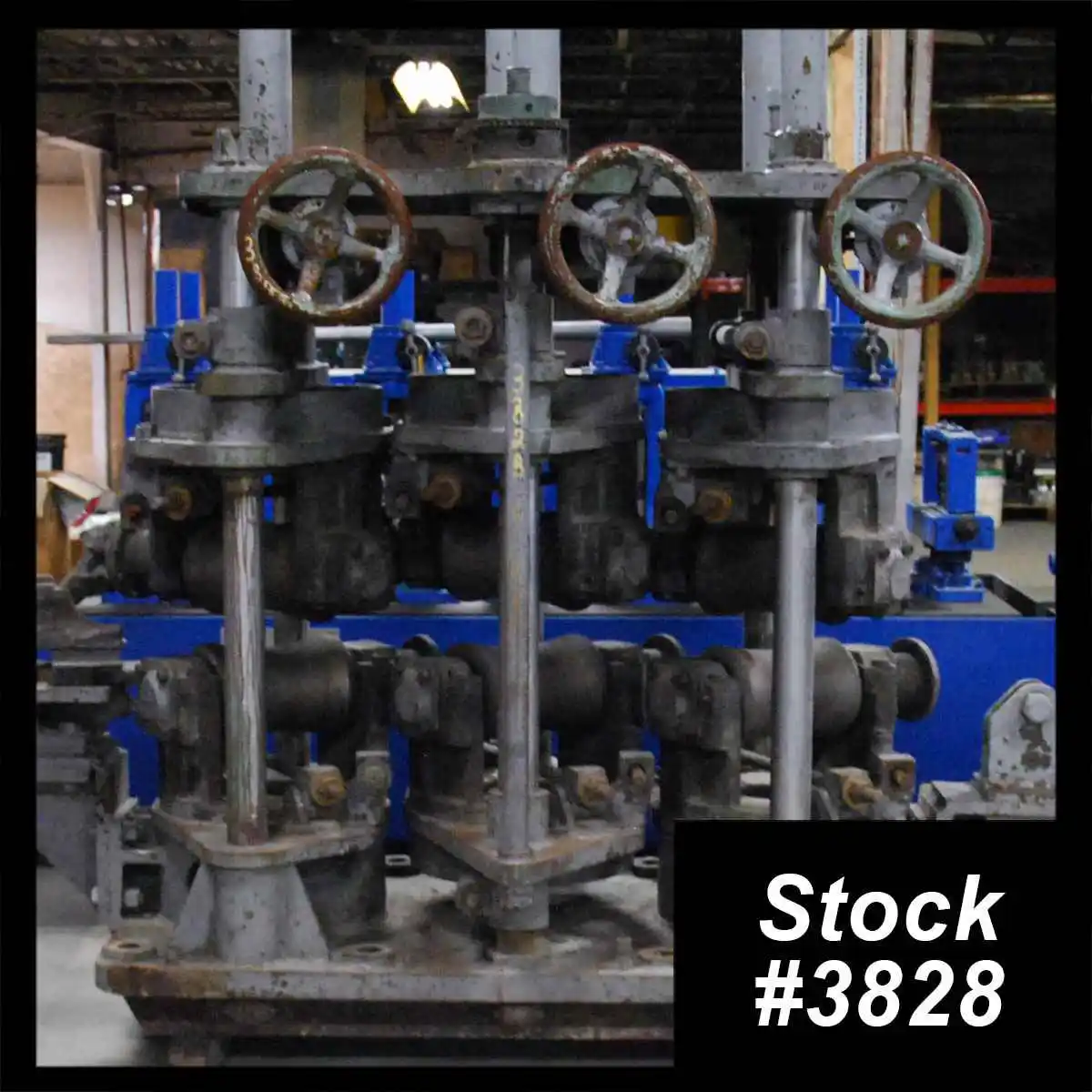

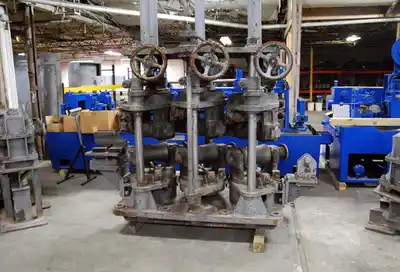

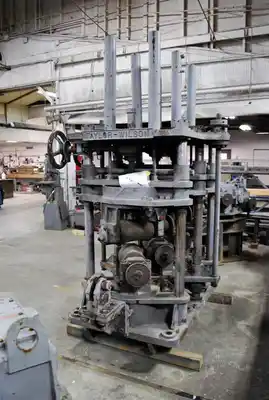

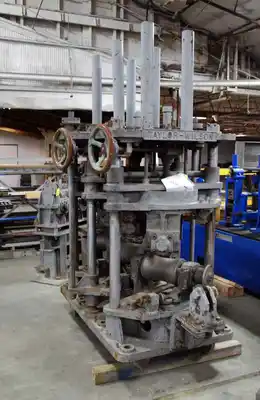

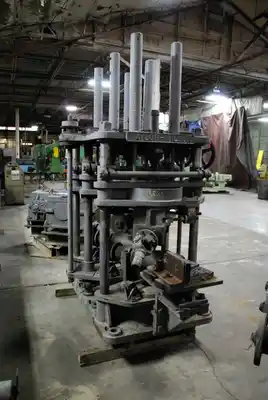

5″ (127 mm) TAYLOR WILSON Tube Straightening Machine

SPECIFICATIONS:
Nominal Maximum: 5″ (127 mm)
Minimum Tube Diameter: 3″ (76.2 mm)
Production Speed: 0 to 80 FPM
Roll Size: Center Diameter: 6-1/2″ (165.1 mm)
Length: 12″ (304.8 mm)
EQUIPPED WITH:
Top (3) Rolls Have Vertical Adjustment
All (6) Rolls Have Controls for Offset Arrangement of Rolls

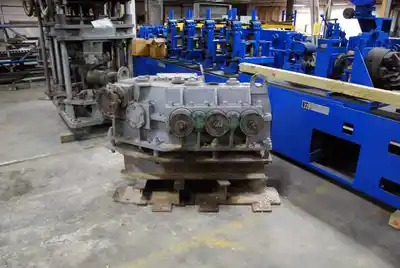

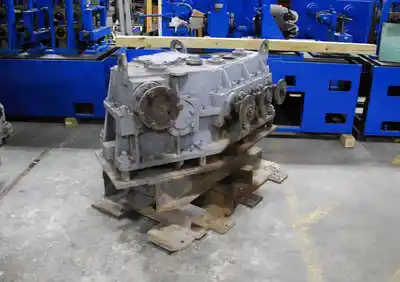

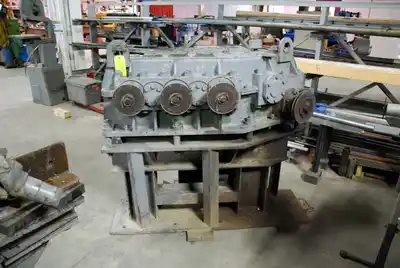

Splitter Box Driving Individual Roll Through Universal Shafts
OVERALL DIMENSIONS: 54″ W x 96″ L x 90″ High
APPROXIMATE WEIGHT: 5,500 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
