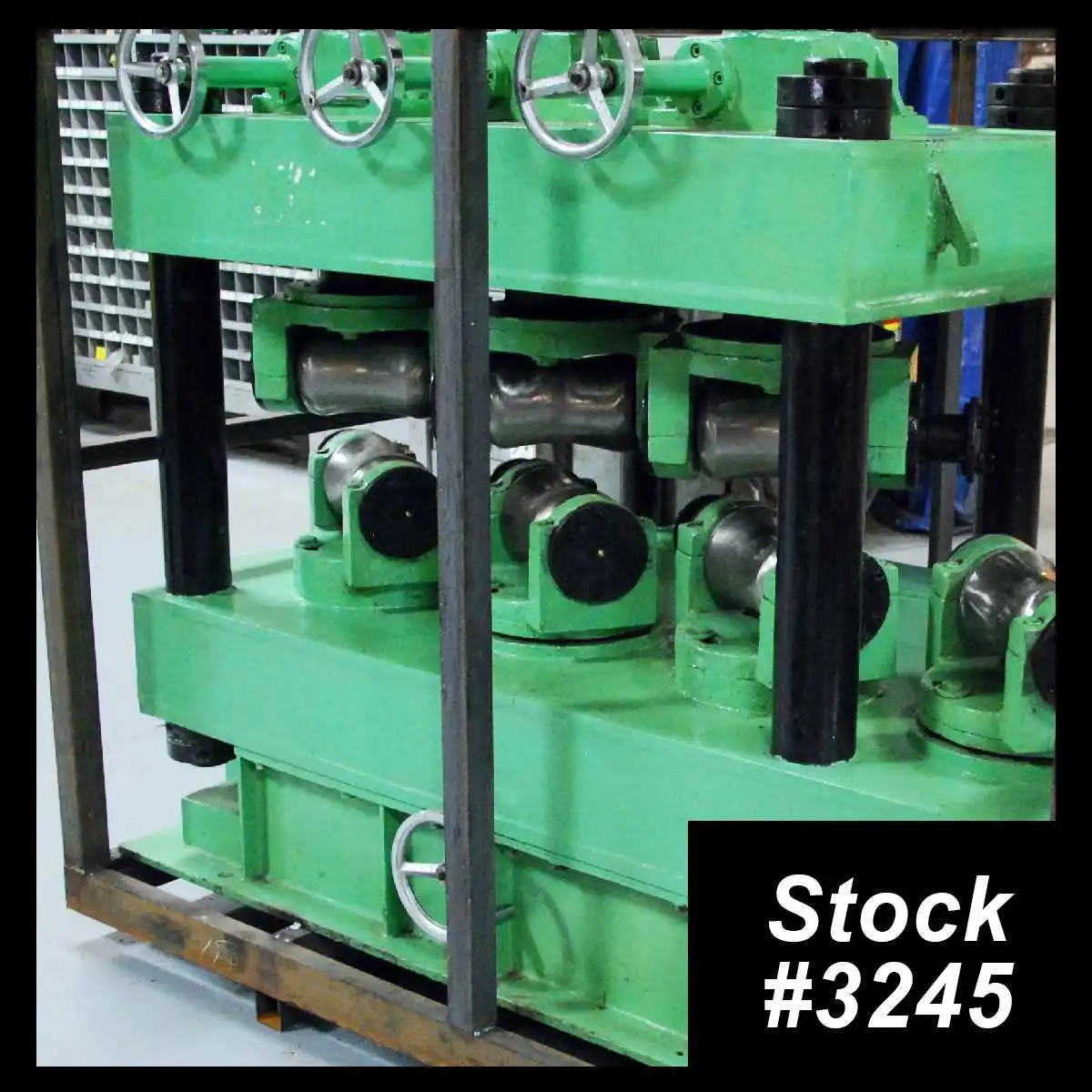

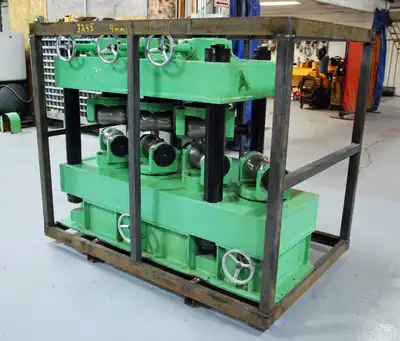

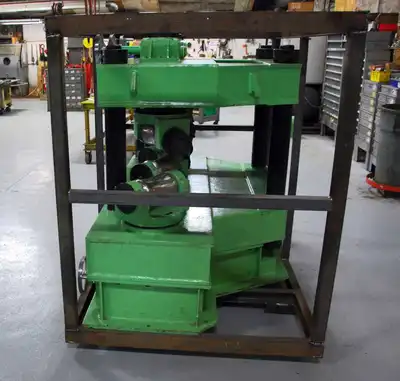

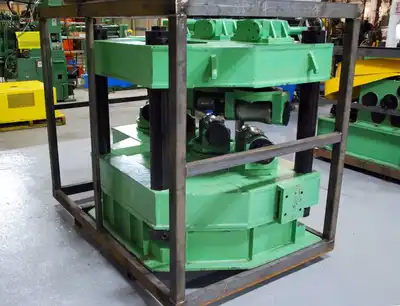

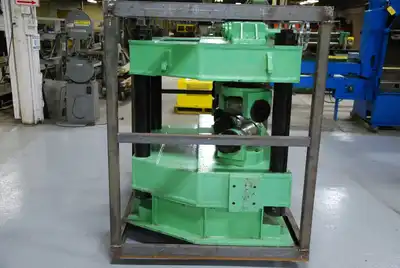

USED TAIYUAN HUAYE EQUIPMENT JZ 089
Specs
SPECIFICATIONS:
Roll Configuration: 3 Over 3
Number of Driven Rolls: 6
Maximum Diameter: 3-1/2" (89 mm)
Minimum Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .158" (4.01 mm)
Normal Operating Speed: 98 – 230 FPM (30 – 70 MPM)
Throat Diameter of Rolls: 5.3" (136 mm)
Overall Length of Rolls: 9" (230 mm)
EQUIPPED WITH:
Vertical Upper Roll Adjustment
Angular Adjustment
Drive Shafts & Gearboxes
NOTE: No Electrical Control or Motors.
LOCATION: Universal Warehouse, Perrysburg, Ohio
Equipped With
EQUIPPED WITH: Vertical Upper Roll Adjustment Angular Adjustment Drive Shafts & Gearboxes
