| Dimensions | 10′ x 50′ x 9′ | 10′ x 50′ x 9′ |
| Weight | 40,000 Lbs. | 40,000 Lbs. |
PRELIMINARY SPECIFICATIONS:

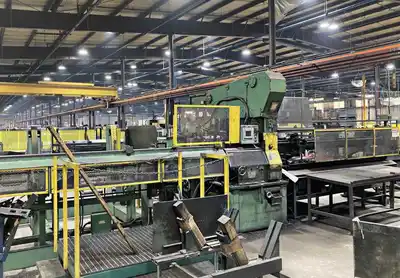

Haven Cutting Capacity:
Round: 1″ – 5″ (25 – 127 mm)
Square: 3-3/4″ (95 mm)
Rectangle: 2″ x 4″ (50 x 115 mm)
Maximum Wall: .165″ (4.2 mm)
Cut Tube Lengths: 4″ – 120″ (100 – 3000 mm)
Cut Tolerance: +/- .015″
Maximum Cycle Rate: 2200 per Hour
Line Direction: Left to Right
EQUIPPED WITH:
Push Button Controls

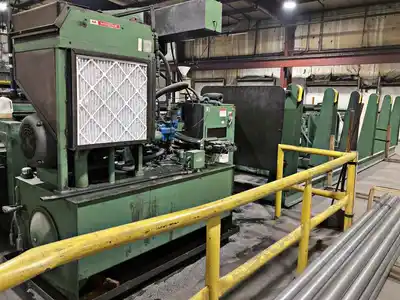

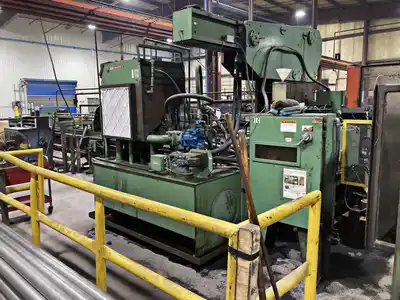

Hydraulic Unit
VICKERS Hydraulic Pump
BIJUR Central Grease System
30 HP Motor: 230 / 460 / 60 Hz / 3 Phase
Target Assembly

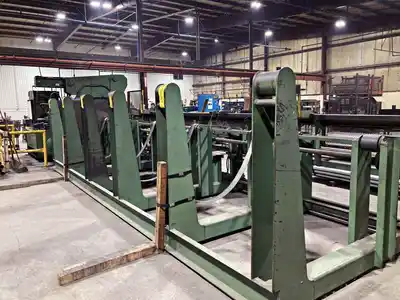

20′ Bundle Loader

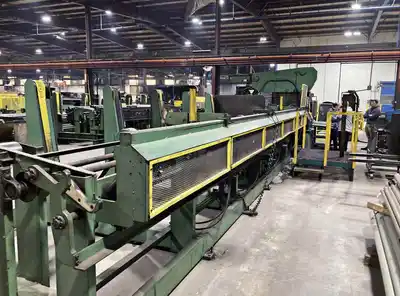

Conveyor Table
(2) Runout Tables

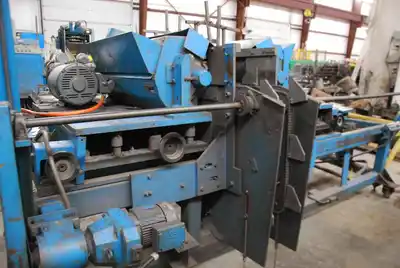

BURRMASTER Debur
– S/N: 1992
– Maximum O.D.: 5″ (127 mm)
– Brush Length: 36″
OVERALL DIMENSIONS: 10′ x 50′ x 9′
APPROXIMATE WEIGHT: 40,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: Push Button Controls Hydraulic Unit VICKERS Hydraulic Pump BIJUR Central Grease System 30 HP Motor: 230 / 460 / 60 Hz / 3 Phase Target Assembly 20′ Bundle Loader Conveyor Table (2) Runout Tables BURRMASTER Debur – S/N: 1992 – Maximum O.D.: 5″ (127 mm) – Brush Length: 36″
