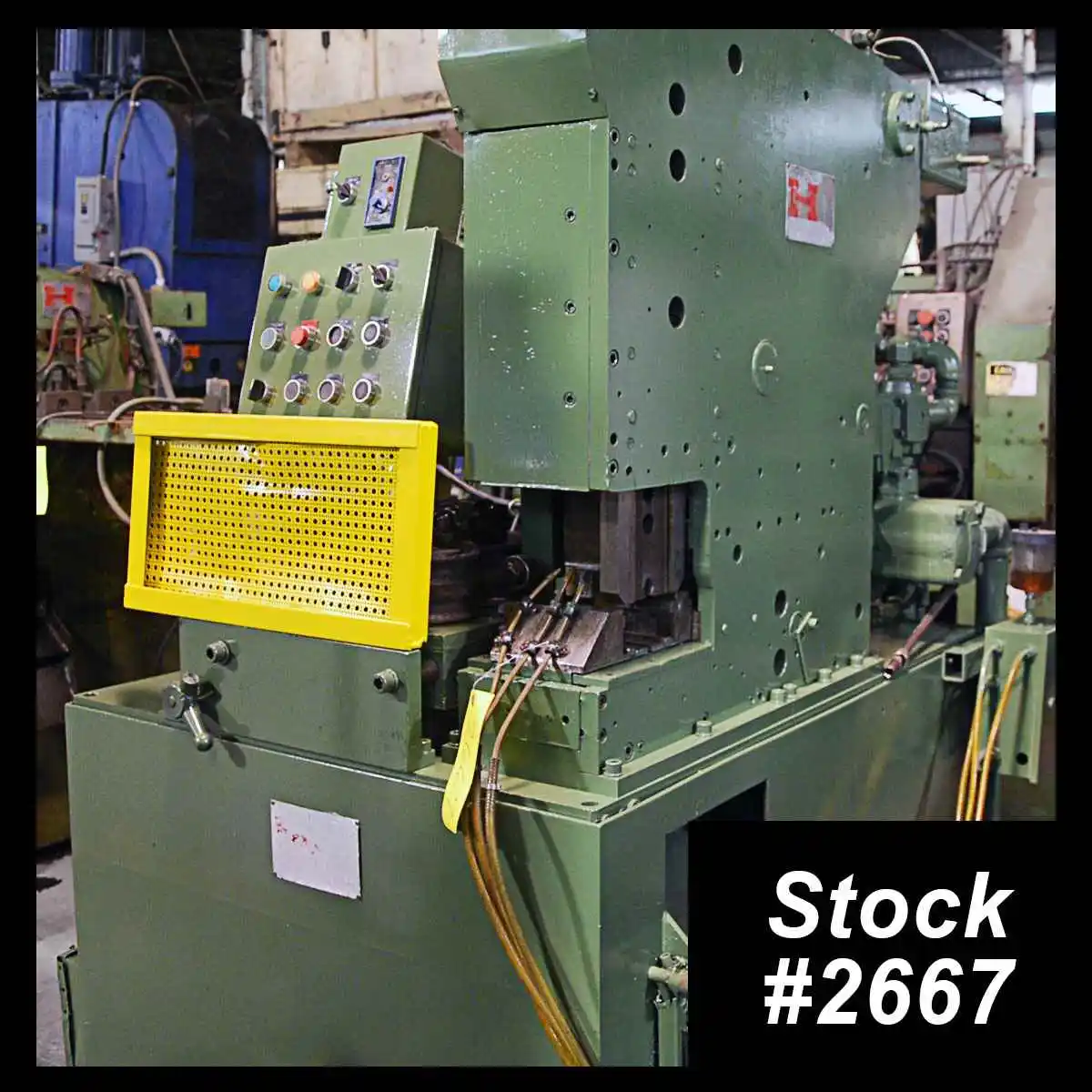

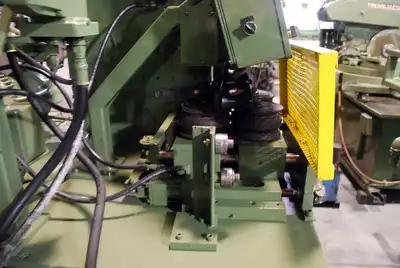

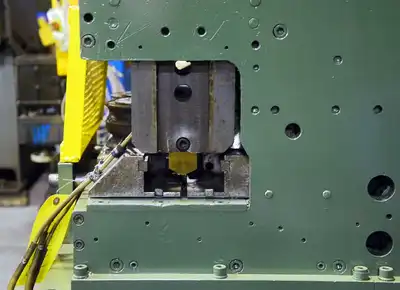

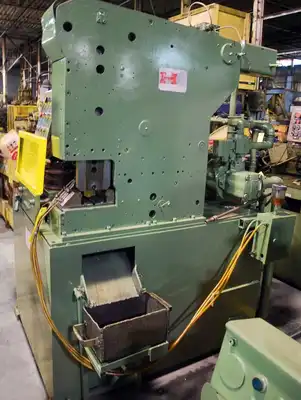

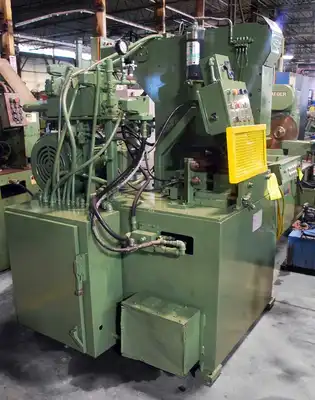

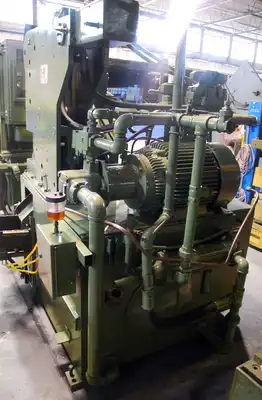

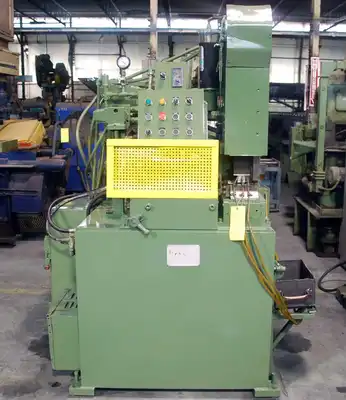

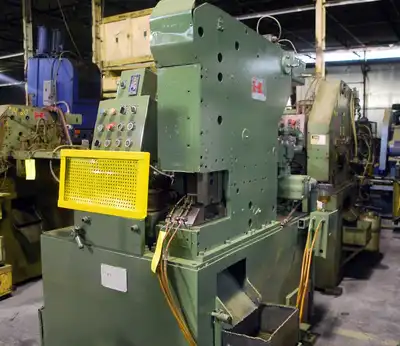

USED HAVEN 871
Specs
SPECIFICATIONS:
Maximum Tube Diameter: 1-1/2" (38.1 mm)
Maximum Squares & Rectangles: 1" (25.4 mm) Diagonal
Minimum Tube Diameter: 3/16" (4.74 mm)
Maximum Wall Thickness: .094" (2.38 mm)
Line Direction: Left to Right
Cycle Speeds: Up to 5400 Cycle / Hour
Maximum Cut Length: 10′
EQUIPPED WITH:
Electrical Panel w/Push Buttons
VICKERS Hydraulic Pump 50 GPM & 13 GPM
Blade Mister
Motor: 15 HP, 230 / 460 / 60 Hz / 3 Phase
CONDITION: Good As Taken From Service
OVERALL DIMENSIONS: 5′ x 5′ x 6′
APPROXIMATE WEIGHT: 5,200 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
Equipped With
EQUIPPED WITH: Electrical Panel w/Push Buttons VICKERS Hydraulic Pump 50 GPM & 13 GPM Blade Mister Motor: 15 HP, 230 / 460 / 60 Hz / 3 Phase
