| Dimensions | 10′ x 50′ x 8′ | 10′ x 50′ x 8′ |
| Weight | 30,000 Lbs. | 30,000 Lbs. |
PRELIMINARY SPECIFICATIONS:
Maximum Tube Diameter: 3″ (76.2 mm)
Maximum Squares & Rectangles: 3″ (76.2 mm) Diagonal
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: .120″ (3.04 mm)
Line Direction: Left to Right
Cycle Speeds: Up to 5,000 Cycles/Hr
Maximum Cut Length: 6′
EQUIPPED WITH:
Touch Screen Controls
VICKERS Hydraulic Pump

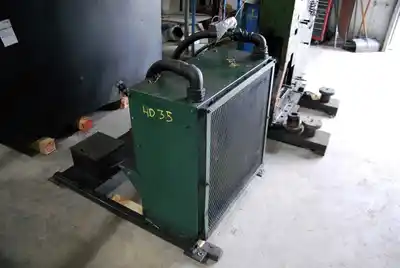

Air Heat Exchanger for Cooling Hydraulic Oil
Central Grease System
30 HP Motor: 230 / 460 / 60 Hz / 3 Phase
Target Assembly

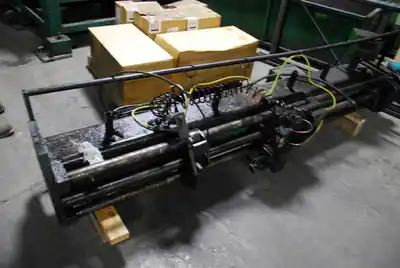

Bundle Loader
Conveyor Table
Flip Table
NOTE: Missing HMI
OVERALL DIMENSIONS: 10′ x 50′ x 8′
APPROXIMATE WEIGHT: 30,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: Touch Screen Controls VICKERS Hydraulic Pump Air Heat Exchanger for Cooling Hydraulic Oil Central Grease System 30 HP Motor: 230 / 460 / 60 Hz / 3 Phase Target Assembly Bundle Loader Conveyor Table Flip Table
