| Dimensions | 7′ x 5′ x 5′ | 7′ x 5′ x 5′ |
| Weight | 1,800 Lbs. | 1,800 Lbs. |
SPECIFICATIONS:
Star Wheel Type
Maximum Tube Length: 30" (762 mm)
Minimum Tube Length: 3" (76.2 mm)
Maximum Tube Diameter: 2-1/2" (63.5 mm)
Minimum Tube Diameter: 3/8" (9.52 mm)
Maximum Bar Diameter: 2.4" (60.9 mm)
Minimum Bar Diameter: 3/8" (9.52 mm)
Profile Section: 3/8" x 3/8" (9.52 mm x 9.52 mm) to 2" x 2" (50.8 mm x 50.8 mm)
Output: 3,500 Maximum Pieces per Hour
Brush Length: 18" (457 mm)
Brush O.D.: 10" or 12" (254 mm or 304 mm)
EQUIPPED WITH:
(2) Motors: 5 HP, 480 / 3 / 60
Electrical Panel

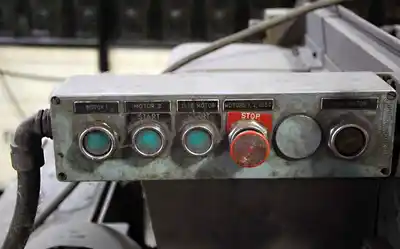

Push Buttons
OVERALL DIMENSIONS: 7′ x 5′ x 5′
APPROXIMATE WEIGHT: 1,800 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: (2) Motors: 5 HP, 480 / 3 / 60 Electrical Panel Push Buttons
