| Dimensions | 15′ x 7′ x 5′ | 15′ x 7′ x 5′ |
| Weight | 2,800 Lbs. | 2,800 Lbs. |
SPECIFICATIONS:
Maximum Tube Length: 72" (1,828 mm)
Minimum Tube Length: 6" (152 mm)
Maximum Tube Diameter: 3" (76.2 mm)
Minimum Tube Diameter: 3/8" (9.52 mm)
Maximum Bar Diameter: 2.4" (60.9 mm)
Minimum Bar Diameter: 3/8" (9.52 mm)
Profile Section: 3/8" x 3/8" to 2" x 2" (9.52 mm x 9.52 mm to 50.8 mm x 50.8 mm)
Output: 3,500 Maximum Pieces per Hour

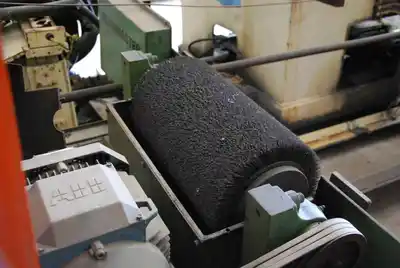

Brush Length: 18" (457 mm)
Brush OD: 10" or 12" (254 mm or 304 mm)
Motors: (2) 5.5 Kw, 380 / 440 / 3 / 50
EQUIPPED WITH:
Electrical Panel
Push Buttons
OVERALL DIMENSIONS: 15′ x 7′ x 5′
APPROXIMATE WEIGHT: 2,800 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: Electrical Panel Push Buttons
