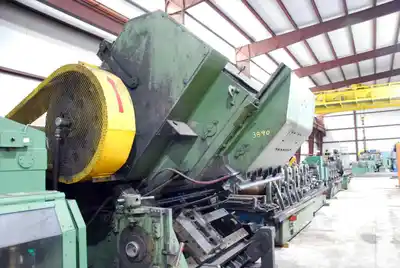

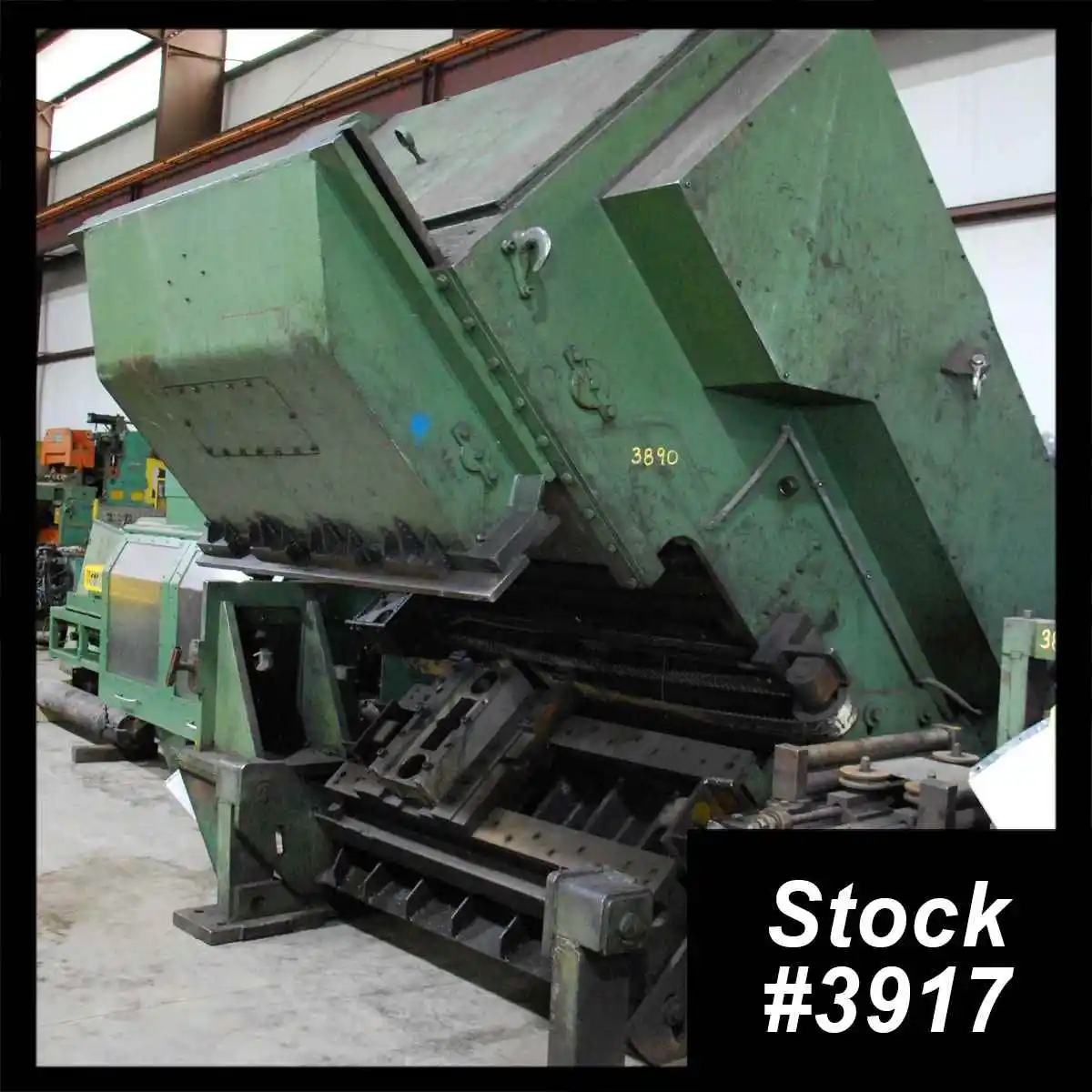

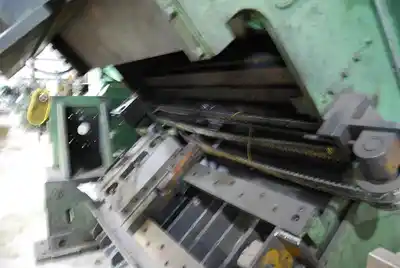

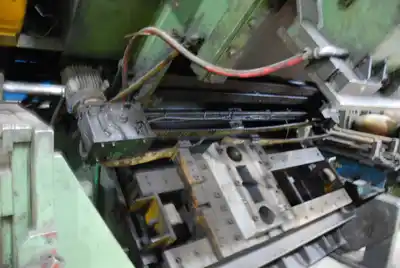

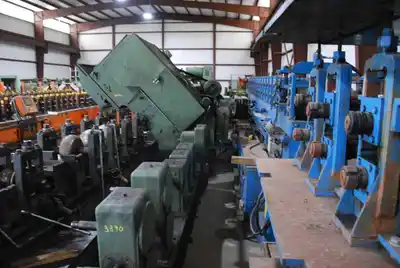

USED ALPHA INDUSTRIES TC-16
Specs
SPECIFICATIONS:
Maximum Tube Diameter: 5″ (127 mm)
Minimum Tube Diameter: 1″ (25.4 mm)
Maximum Wall Thickness: .250″ (6.35 mm)
Minimum Wall Thickness: .035″ (.889 mm)
Maximum Mill Speed: 200 FPM
Maximum C.P.M.: 20
Clutch: Air
Die Clamp: Hydraulic
Floor to Center Line of Tube: 36″
EQUIPPED WITH:
Motor: 30 HP, 440/220/3/60
Tooling: Misc. Jaws, and Die Set with Slides
APPROXIMATE WEIGHT: 22,000 Lbs.
OVERALL DIMENSIONS: 9′ 2″ L x 10′ W x 10′ H
LOCATION: Universal Warehouse, Perrysburg, Ohio
Equipped With
EQUIPPED WITH: Motor: 30 HP, 440/220/3/60 Tooling: Misc. Jaws, and Die Set with Slides
