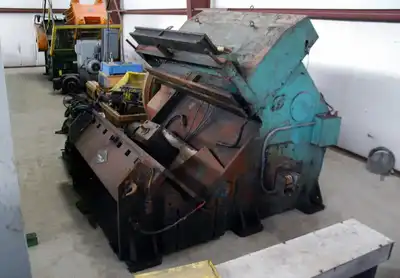

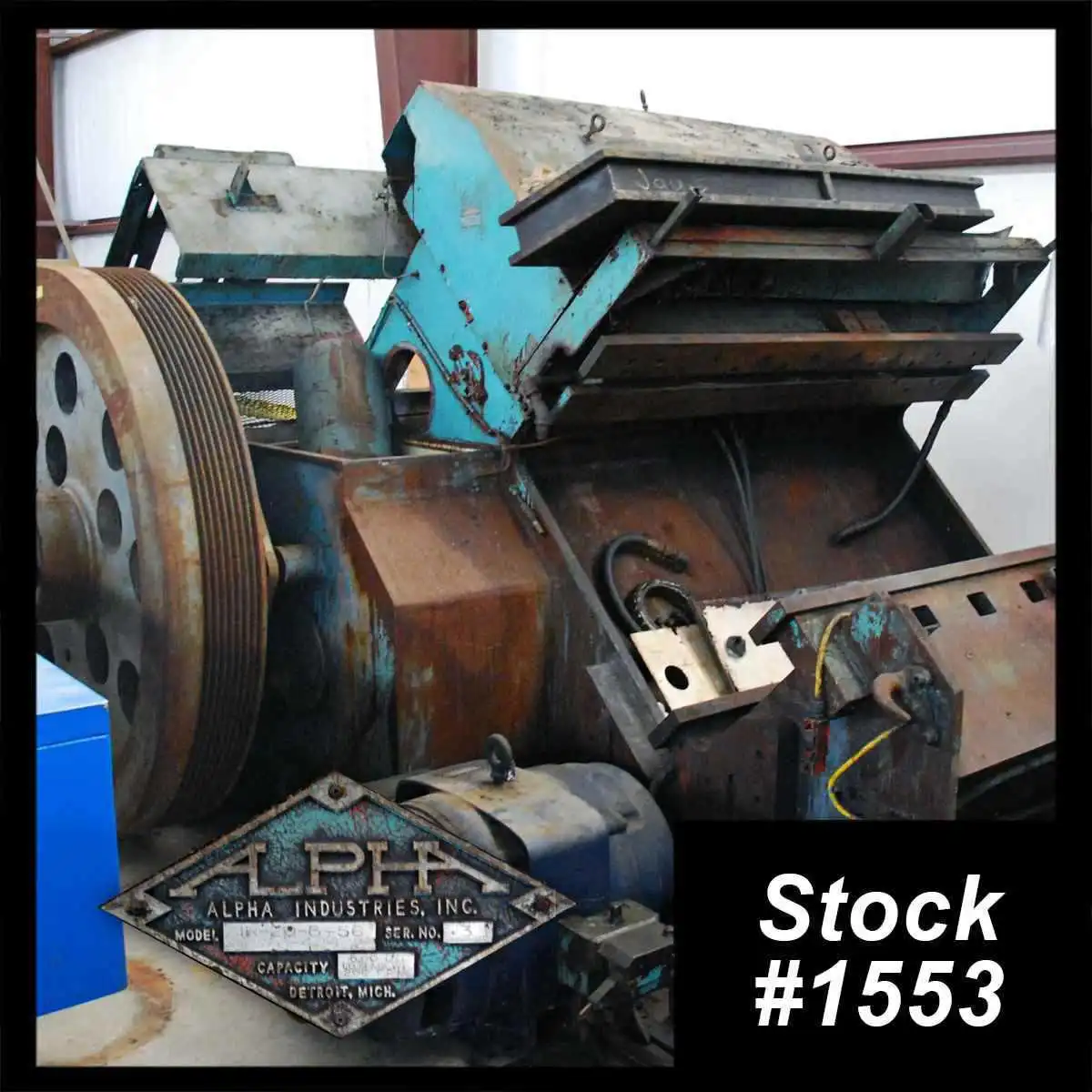

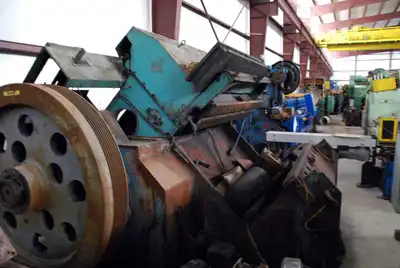

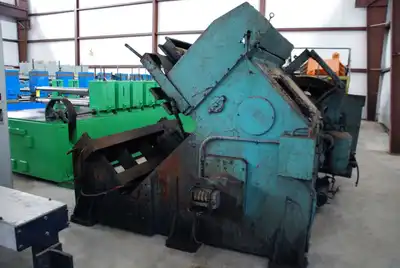

USED ALPHA IR 20 3 56
Overview
Specifications
| Dimensions | 10′ 3" x 9′ 6" x 7′ 4" | 10′ 3" x 9′ 6" x 7′ 4" |
|---|---|---|
| Weight | 28,000 Lbs. | 28,000 Lbs. |
SPECIFICATIONS:
Inclined Ram Type Cut-Off
Maximum Tube Diameter: 5" (127 mm)
Minimum Tube Diameter: 3/4" (19.0 mm)
Maximum Wall Thickness: .187" (4.74 mm)
Minimum Wall Thickness: .028" (.711 mm)
Tube Speed: 30 – 200 FPM
Cuts Per Minute: 30
EQUIPPED WITH:
(1) Single Cut Die Set
DELCO AC Motor, 50 HP, 1105 RPM
Electrical: 575 / 3 / 60
MINSTER 2 Disc Clutch
Tooling: Round Sets: 3", 3.5"
Square Sets: 2", 1.5", 4", 2.173", 2.625"
Rectangle Sets: 2" x 4", 3" x 1.5"
OPTION:
New U-TRAK Accelerator with Controls Additional $75,000.00
OVERALL DIMENSIONS: 10′ 3" x 9′ 6" x 7′ 4"
APPROXIMATE WEIGHT: 28,000 Lbs.
FOOTPRINT ON BASE:
101" Length x 95 Front to Back
Pass Line Height to Bottom of Jaws: 35" (Approximate)
LOCATION: Universal Warehouse, Perrysburg, Ohio
