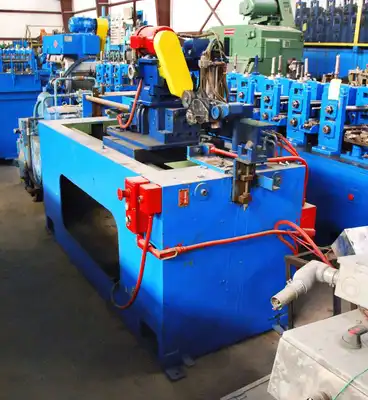

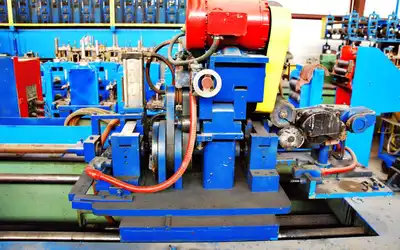

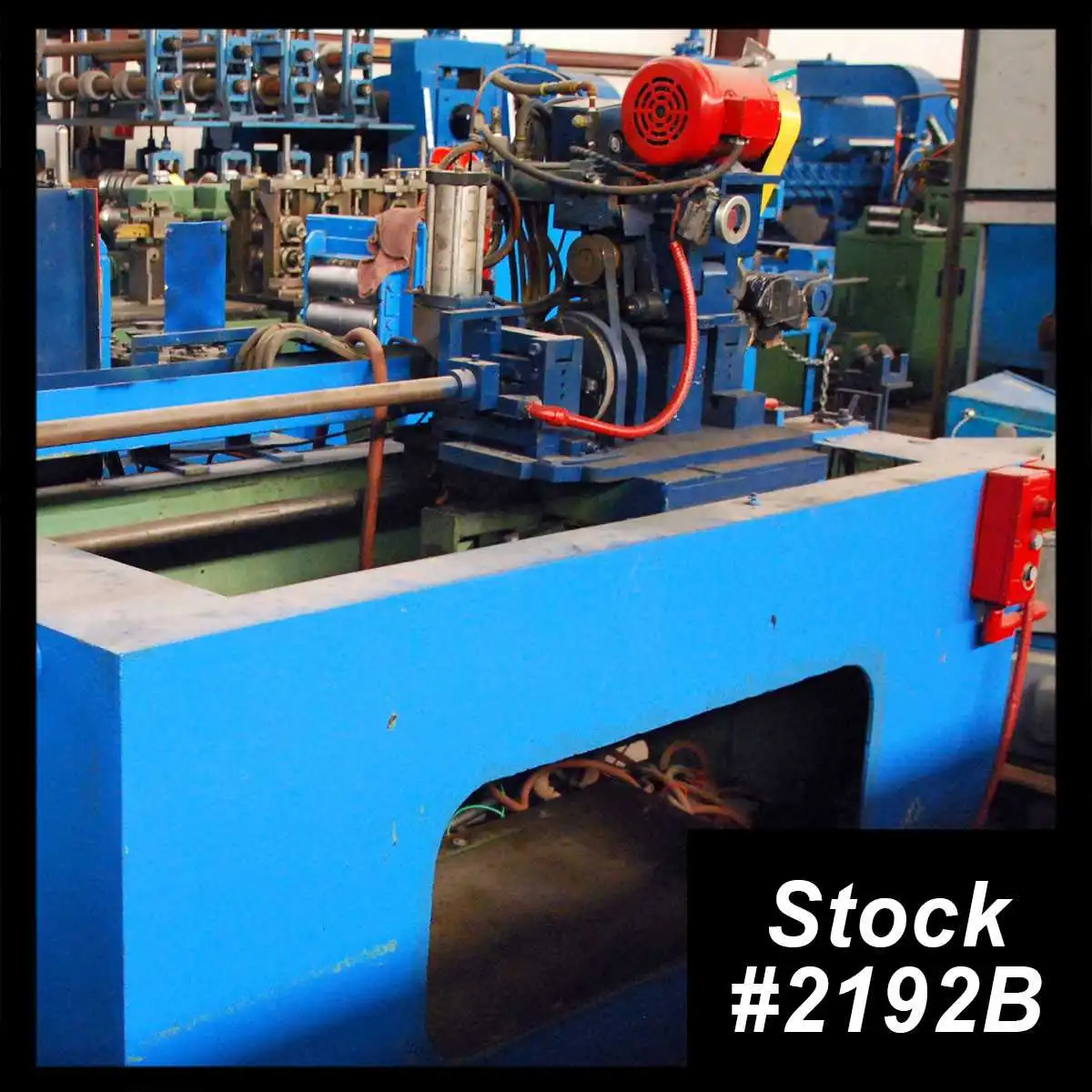

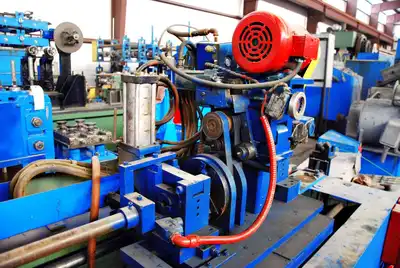

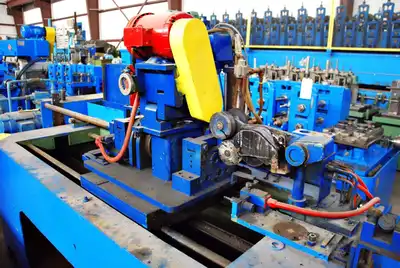

1″ (25.4 mm) x .049″ (1.24 mm) BERTOLETTE Flying Rotary Tube Cut-Off
Overview
Specifications
| Dimensions | 8′ x 4′ x 5′ | 8′ x 4′ x 5′ |
|---|---|---|
| Weight | 1,600 Lbs. | 1,600 Lbs. |
SPECIFICATIONS:
Maximum Tube Diameter: 1" (25.4 mm)
Minimum Tube Diameter: 1/16" (1.58 mm)
Maximum Wall Thickness: .049" (1.24 mm)
Travel Length: 0 – 36" Maximum (Pneumatic Return)
Cuts with Minimum Deburr
Cuts Metals, Plastics & Rubber Tubing
Automatic Pneumatic Clamping of Work Piece During Cut
Rotary Cutting Head, 3 Rotary Blades
Manually Adjustable Cutter Travel Length
Maximum Speed: 30 FPM
NOTE: This machine was part of a 1" stainless tube mill.
EQUIPPED WITH:

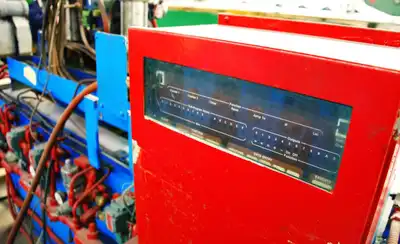

DURANT Electronic Length Control Package (Less Rotary Encoder)
Motor: 1 HP, 1750 RPM, 230 / 460 / 3 / 60 Volt
OVERALL DIMENSIONS: 8′ x 4′ x 5′
APPROXIMATE WEIGHT: 1,600 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
Equipped With
EQUIPPED WITH: DURANT Electronic Length Control Package (Less Rotary Encoder) Motor: 1 HP, 1750 RPM, 230 / 460 / 3 / 60 Volt
