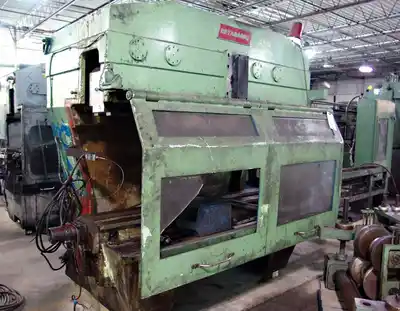

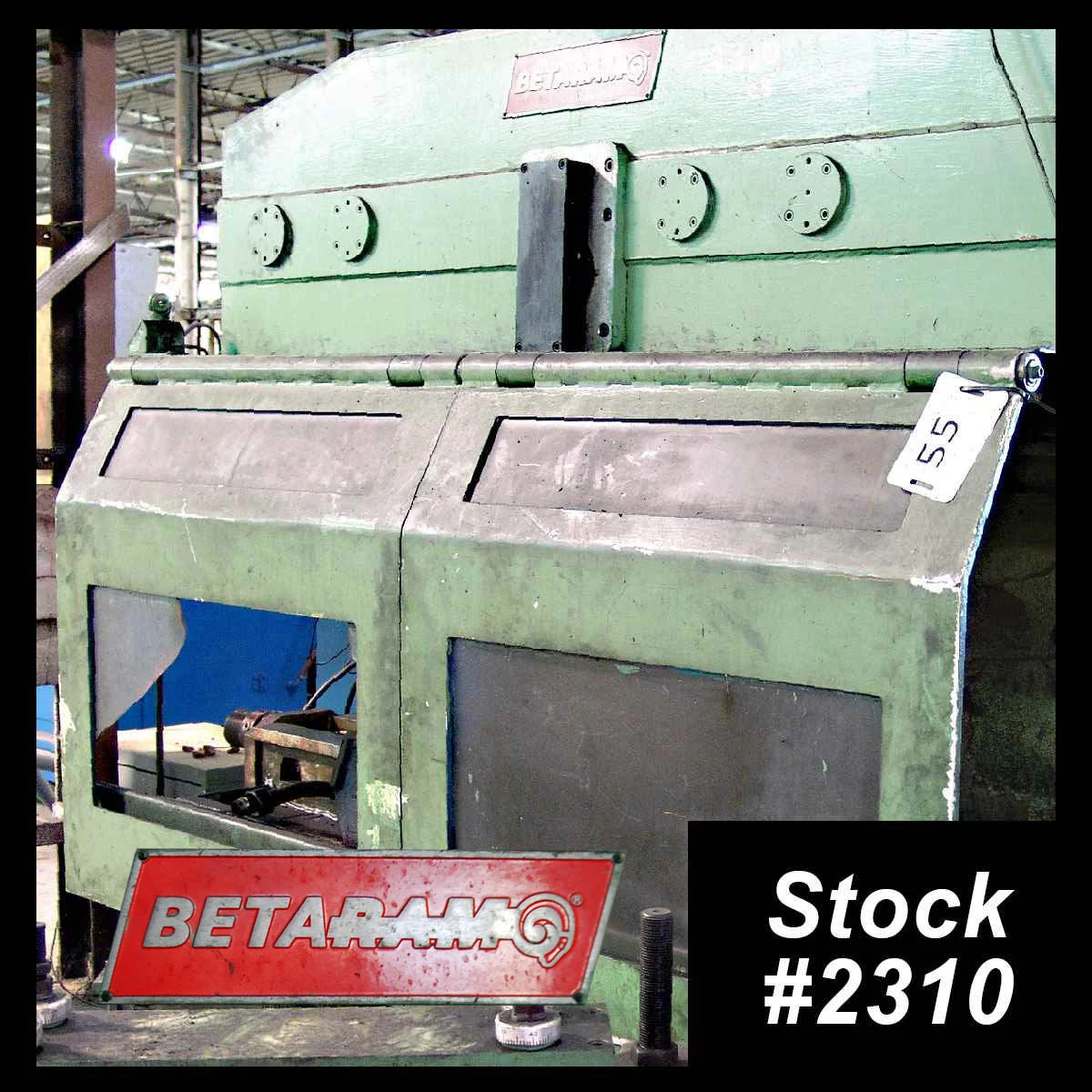

USED BETARAM OA – 3 – FD (ASE – 4873)

SPECIFICATIONS:
Maximum Tube Diameter: 2" (50.8 mm)
Minimum Tube Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .125" (3.17 mm)
Speed: 50 – 300 FPM
Cuts Per Minute: 50 @ 300 FPM to 70 @ 100 FPM
Material: C-1008 to C-1020 Low Carbon Steel Plus 409 to 439
Stainless Steel 60 KSI Tensile and 55 KSI Yield
Line Direction: Right to Left
Blade Path: Vertical
CONDITION: Good As Taken From Service
NOTE: Missing Motor, No Die Set, No Accelerator, No Electrics
OVERALL DIMENSIONS: 15′ x 5′ x 7′
APPROXIMATE WEIGHT: 10,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
