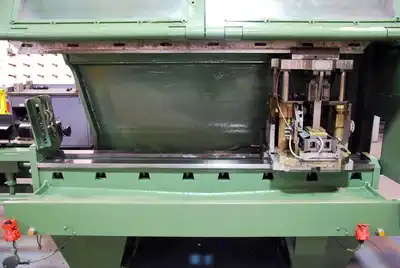

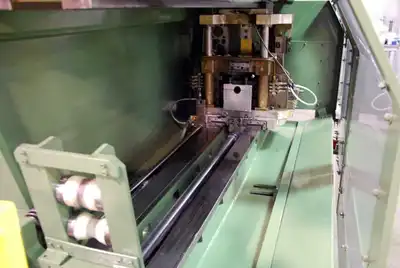

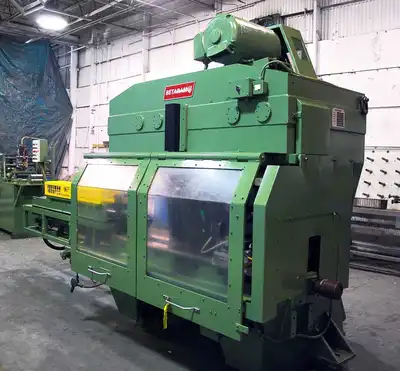

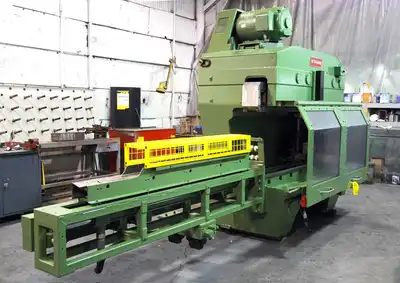

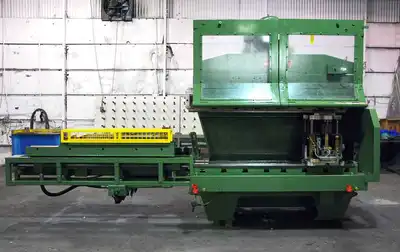

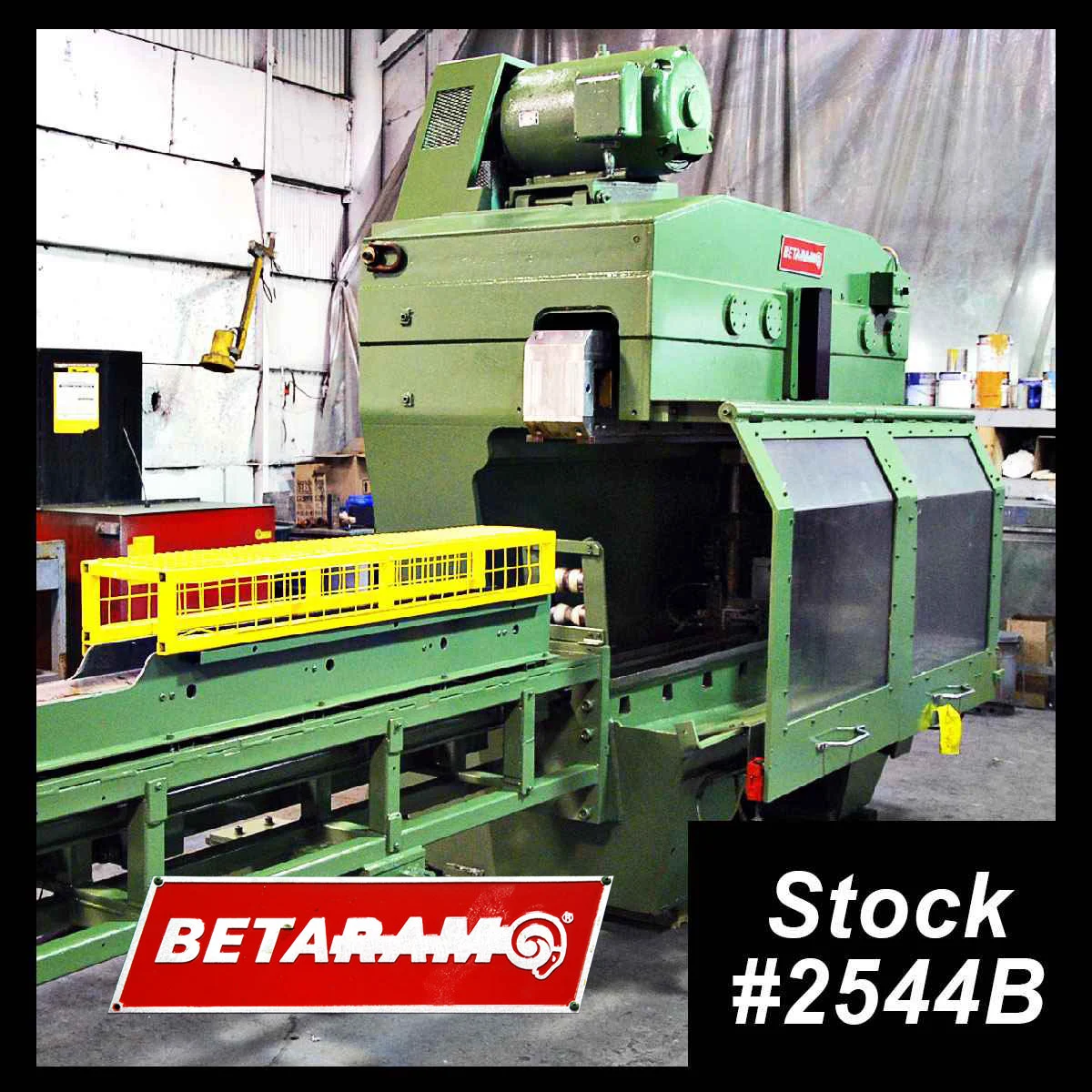

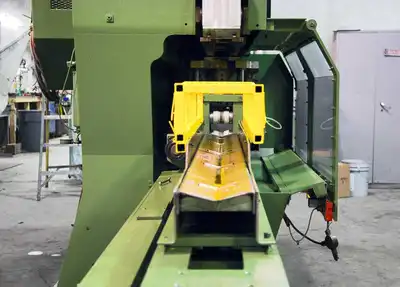

USED BETARAM OA – 2.5 – FD (ASE – 4873)

SPECIFICATIONS:
Maximum Tube Diameter: 1-1/2" (38.1 mm)
Minimum Tube Diameter: 1/2" (12.7 mm)
Maximum Wall Thickness: .100" (2.54 mm)
Speed: 50 – 300 FPM
Material: C-1008 to C-1020 Low Carbon Steel Plus 409 to 439
Stainless Steel 60 KSI Tensile and 55 KSI Yield
Line Direction: Right to Left
EQUIPPED WITH:
TALLEYRAND Digital Length Control Cabinet

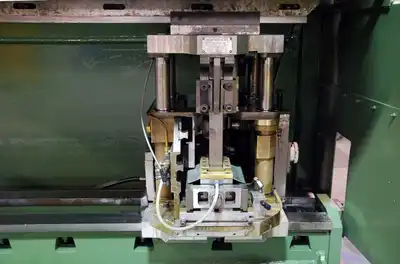

Double Cut Die Set
Hydraulic Accelerator
Hydraulic Clutch and Brake
CONDITION: Good As Taken From Service
OVERALL DIMENSIONS: 31′ x 6′ x 8-1/2′
APPROXIMATE WEIGHT: 24,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
