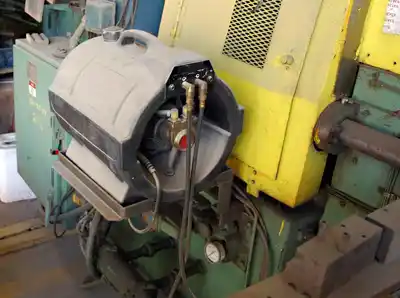

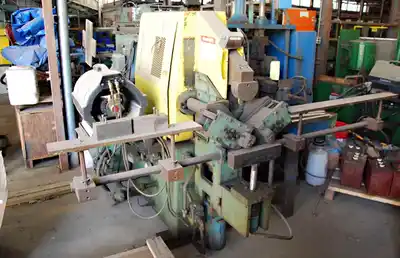

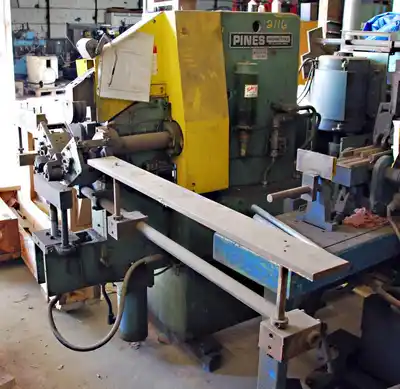

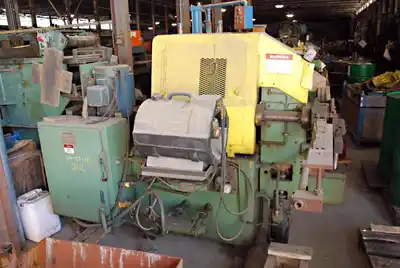

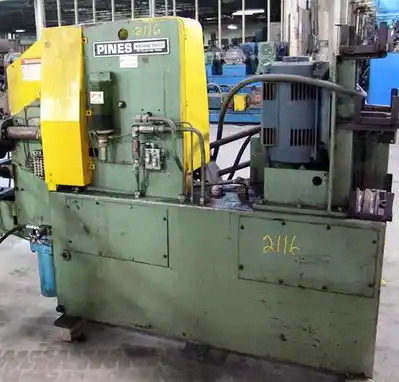

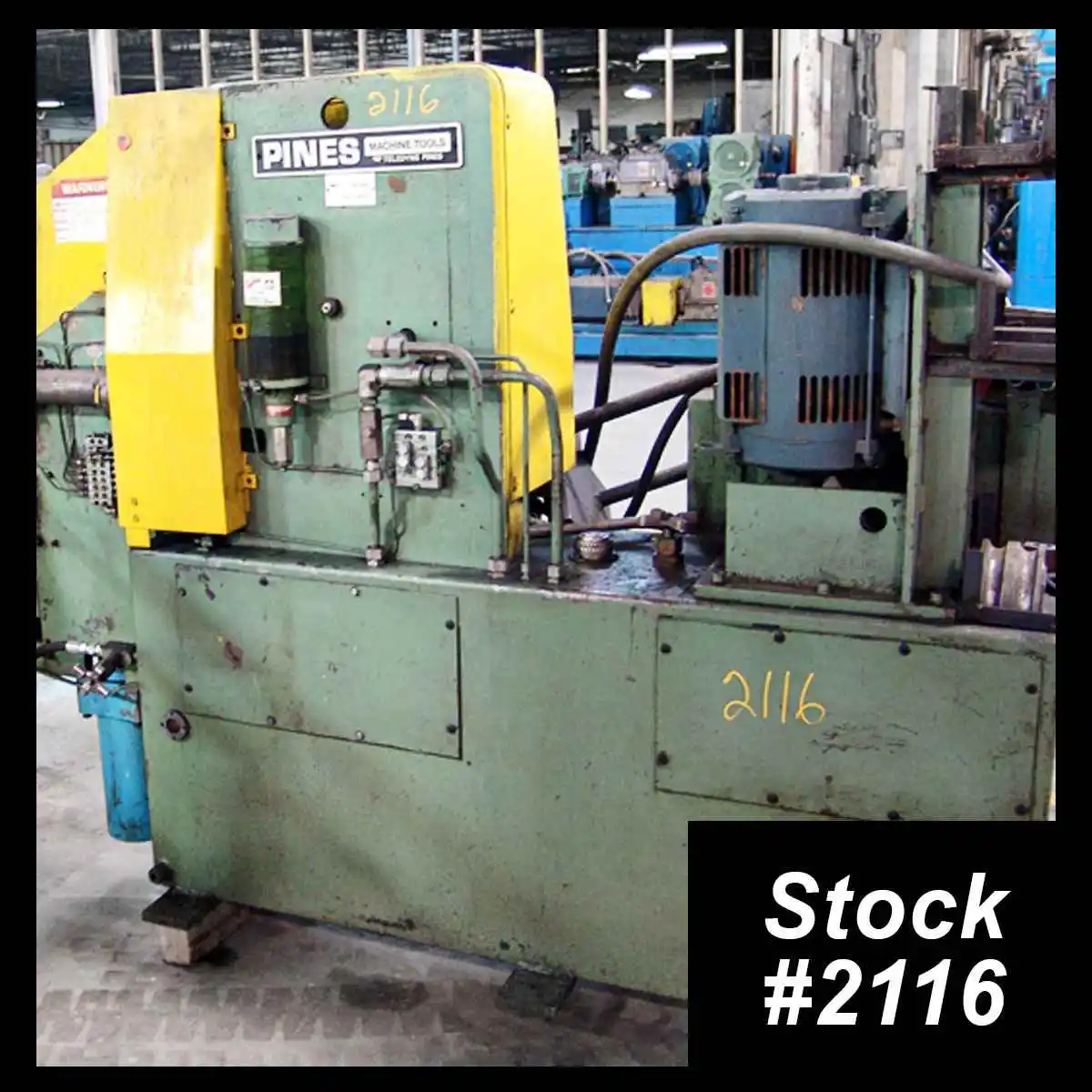

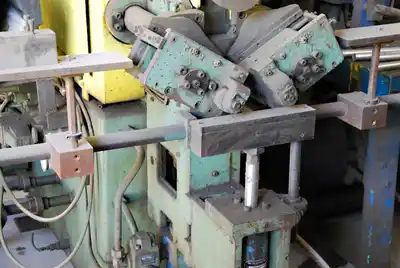

USED PINES 5T

SPECIFICATIONS:
Material:
Round Tubing: Non-Ferrous, 25,000 psi: 1″ x .072″ (two)
Mild Steel, Y.P. 40,000 psi: 1″ x .065″ (two)
Stainless, Y.P. 60,000 psi: 1″ x .049″ (two)
Square Tube: Mild Steel: 7/8″ x .035″ (two)
Round Bar: Mild Steel: 5/8″ (two)
Square Bar: Mild Steel: 1/2″ (two)
Hydraulic Power: 5 Tons
Bends Per Hour: 2 Tubes, 1800/Hour
Maximum Capacity: 1″ x .065″ Wall, Steel Tube
Maximum Angle: 100 Degrees, Normal Tooling
Maximum C.L.R.: 4-1/2″, 90 Degrees Bend or Less
Minimum C.L.R.: Approx. 2 to 3 x Work Diameter
Height Floor to Dies: 40″
20 HP Motor
NOTE: Test Run on 2/26/09
OVERALL DIMENSIONS: 3′ 4″ x 7′ x 5′ 4″
APPROXIMATE WEIGHT: 3,100 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
