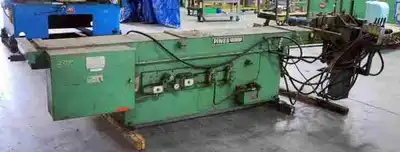

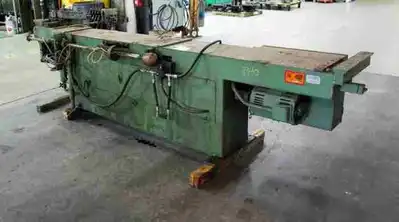

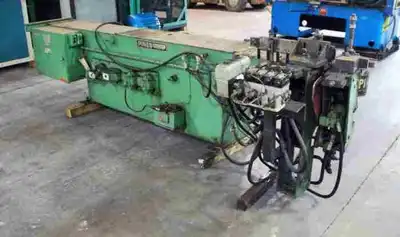

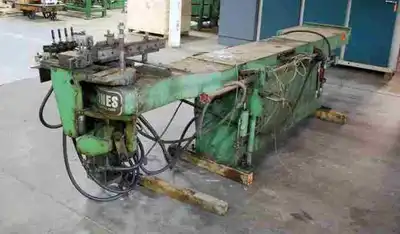

USED PINES 1

SPECIFICATIONS:
Round Tube:
Maximum Tube Diameter: 1-1/2″ (38.1 mm)
Maximum Wall Thickness .109″ (2.76 mm)
Maximum Yield Pressure: 40,000 PSI
1″ (25.4 mm) Schedule 80 Steel
Square Tube:
Maximum Tube Diameter: 1.125″ (28.5 mm)
Maximum Wall Thickness: .120″ (3.04 mm)
Mild Steel
Maximum Tube Length Over Mandrel: 9′ 11″
Maximum Radius Standard: 8″
Maximum Radius Optional: 16″
Maximum Bend Angle: 180 Degrees + Over Bend for Spring Back
Bending Speed: 17 RPM Average
Operating Pressure: 1,000 PSI
Reservoir Capacity: 41 Gallons
Direction of Bend: Counter Clockwise
Pilot Operated
EQUIPPED WITH:
Centro Matic Lubrication System
Split Die Actuator
Complete Electrical Panel
Swing Arm, Forward / Reverse
Cycle Forward / Reverse
Motor Start / Stop
Off / Manual / Auto
Mandrel Extractor
Hydraulic Operation of Clamping and Pressure Dies
Manual Indexing Degree of Bend Turret (10) Settings
4″ Bend Cylinder
Motor: 7.5 HP – 220 / 60 / 3
OVERALL DIMENSIONS: 12′ x 5′ x 4′
APPROXIMATE WEIGHT: 2,800 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
