| Dimensions | 5′ x 23′ x 5′ | 5′ x 23′ x 5′ |
| Weight | 20,000 Lbs. | 20,000 Lbs. |
SPECIFICATIONS:
Number of Passes: 18
Line Direction: Right to Left
Roll Shaft Diameter: 1-1/2″
Roll Space: 24″
Horizontal Centers: 11″
Vertical Adjustment: 4-1/2″ – 7″
Base Top to Center Lower Shaft: 5-3/4″
Gearing: Equal
EQUIPPED WITH:
Motor & Belt Drive

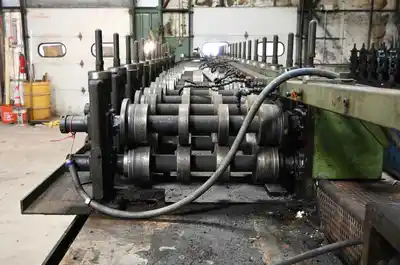

Roll Tooling
OVERALL DIMENSIONS: 5′ x 23′ x 5′
APPROXIMATE WEIGHT: 20,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: Motor & Belt Drive Roll Tooling
