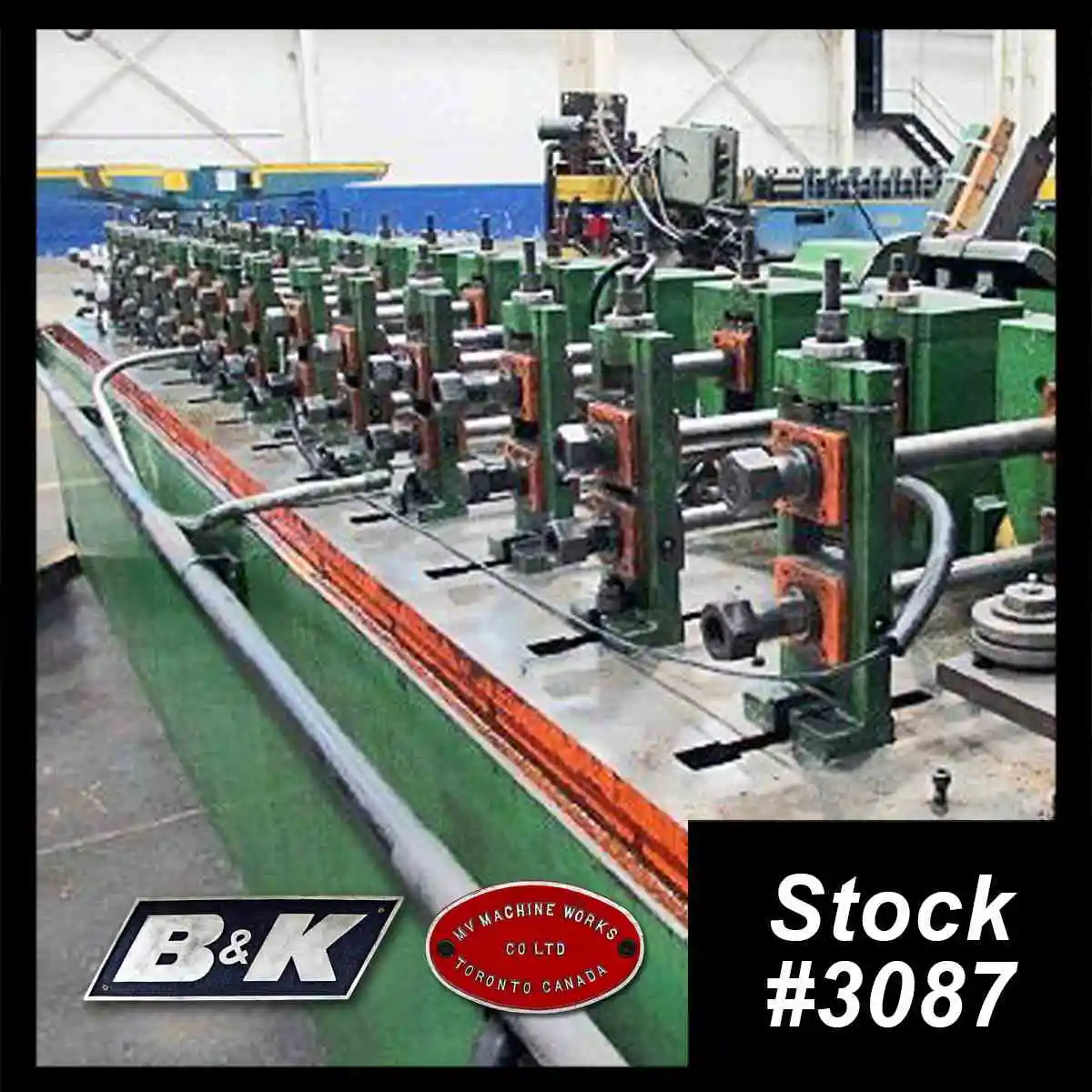

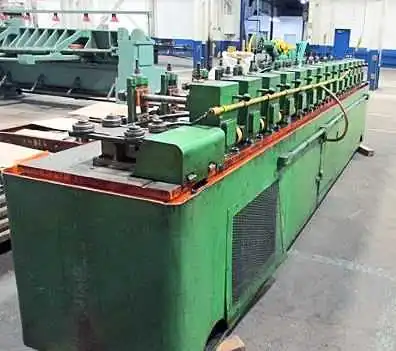

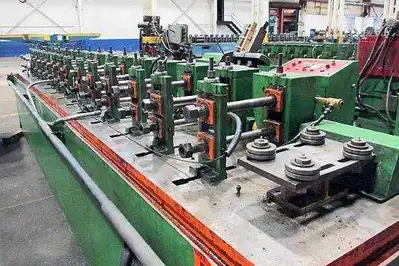

15 Stand x 1-1/4″ x 11″ B&K/MV Rollforming Line

SPECIFICATIONS:
Rollformer:
Number of Stands: 15
Line Direction: Right to Left
Spindle Diameter: 1-1/4"
Roll Space: 11"
Horizontal Center: 12"
Vertical Adjustment: 3-1/2" – 5"
Base to Center Lower Spindles: 3-1/2"
Base Working Surface: 26-1/2"
Strip Pass Line: 38"
Base Coolant Trough: 31-1/2"
Line Speed: 150 FPM
EQUIPPED WITH:
10 HP Drive, Volts 575, amps 40, 3 Phase / 60 hz
Coolant Pump & Tank

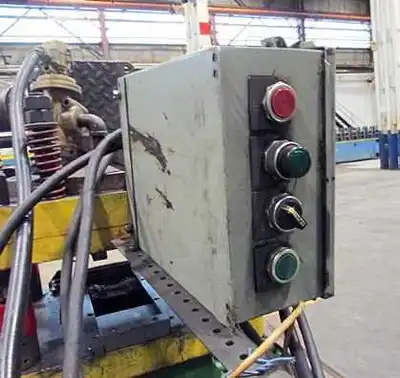

Push Button Station
4-Roll Entry Guide
Straightener

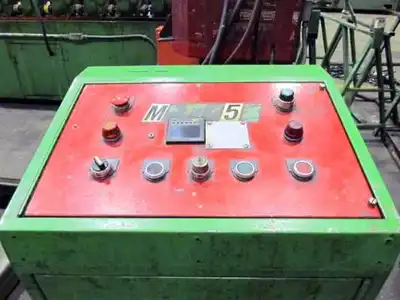

Control Console

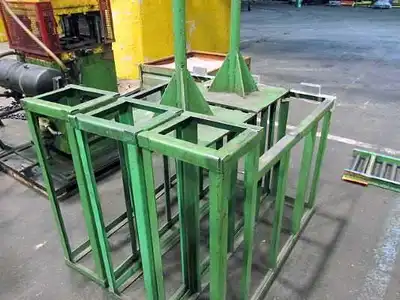

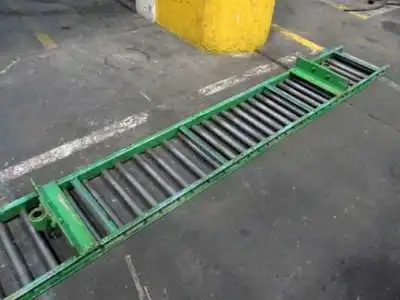

14" w x 10′ l Roller Conveyor with Support Stands
Motor

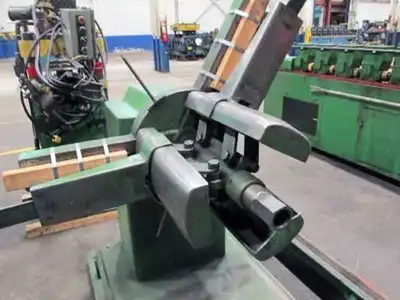

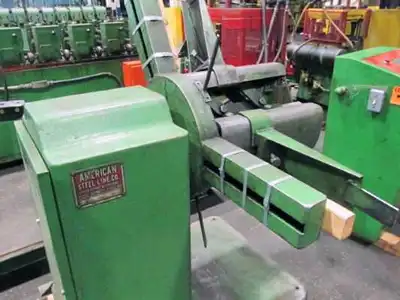

2,500 Lb. x 20" AMERICAN STEEL LINE Uncoiler:
Mandrel Type
Maximum Coil O.D.: 48"
Coil I.D. Range: 14" – 21"
Maximum Coil Width: 18"
With Coil Keepers

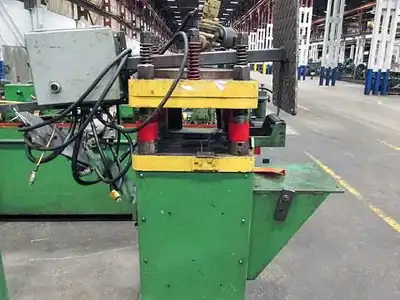

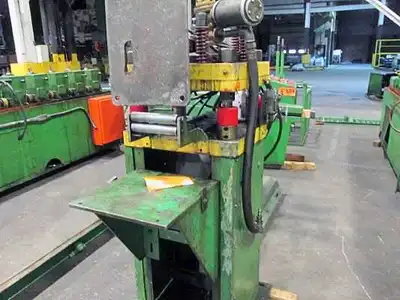

15 Ton MV Pneumatic 4 Post Pre-Punch:
Distance Between Housings: 12"
Stroke: 2-1/2"
Shut Height: 7-12"
Bed Size: 34" x 14"
Inline Sliding Roller Die

EQUIPPED WITH: 10 HP Drive, Volts 575, amps 40, 3 Phase / 60 hz Coolant Pump & Tank Push Button Station 4-Roll Entry Guide Straightener Control Console 14" w x 10′ l Roller Conveyor with Support Stands Motor
