| Dimensions | 13′ 10″ x 4′ 4″‘ x 5’ 4″ | 13′ 10″ x 4′ 4″‘ x 5’ 4″ |
| Weight | 10,000 Lbs. | 10,000 Lbs. |

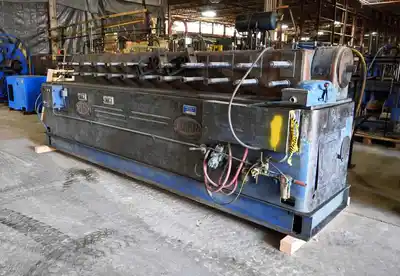

SPECIFICATIONS:
Number of Stands: 12 (8 New Outboard Stands)
Line Direction: Right to Left
Spindle Diameter: 2″
Roll Space: 8″
Horizontal Centers: 12″
Vertical Adjustment: 5-1/2″ – 7″
Base Top to Center of Lower Spindle: 5″
Spindle Key Size: 3/8″

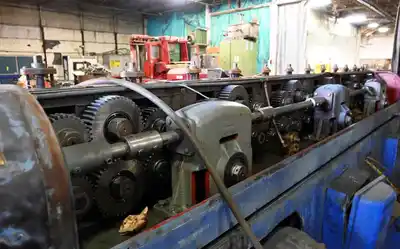

Gearing: Equal (Very Good Condition)
EQUIPPED WITH:
Air-Actuated Clutch and Air Cylinder
NOTES:

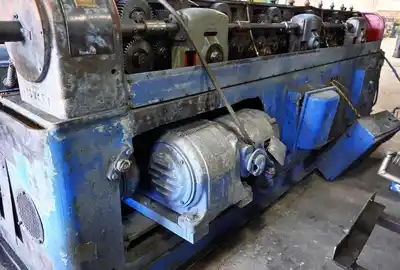

Missing 15HP Motor.
1 Lower Spindle Needs Replaced due to Damaged Thread
OVERALL DIMENSIONS: 13′ 10″ x 4′ 4″‘ x 5’ 4″
APPROXIMATE WEIGHT: 10,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: Air-Actuated Clutch and Air Cylinder
