| Dimensions | 40′ x 7.5′ x 7′ | 40′ x 7.5′ x 7′ |
| Weight | 35,000 Lbs. | 35,000 Lbs. |
SPECIFICATIONS:
Number of Stands: 10
Line Direction: Right to Left
Spindle Diameter: 3″
Roll Space: 54″
Horizontal Center: 16″
Vertical Adjustment: 9″ – 10″
Base to Center Lower Spindle: 7-3/8″
Spindle Key Size: 1/2″
EQUIPPED WITH:

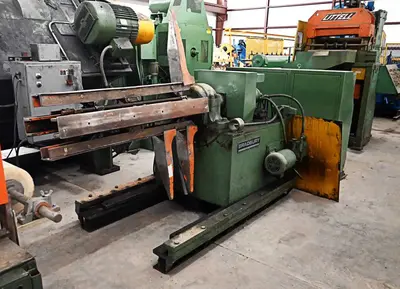

10,000 Lb. BRADBURY Uncoiler with Hydraulic Expansion and Air Brake
DURANT Counter
Electrical Controls
Motor: 25 HP 460/60/3
OVERALL DIMENSIONS: 40′ x 7.5′ x 7′
APPROXIMATE WEIGHT: 35,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: 10,000 Lb. BRADBURY Uncoiler with Hydraulic Expansion and Air Brake DURANT Counter Electrical Controls Motor: 25 HP 460/60/3
