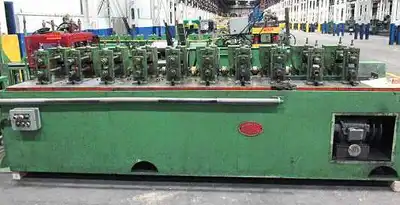

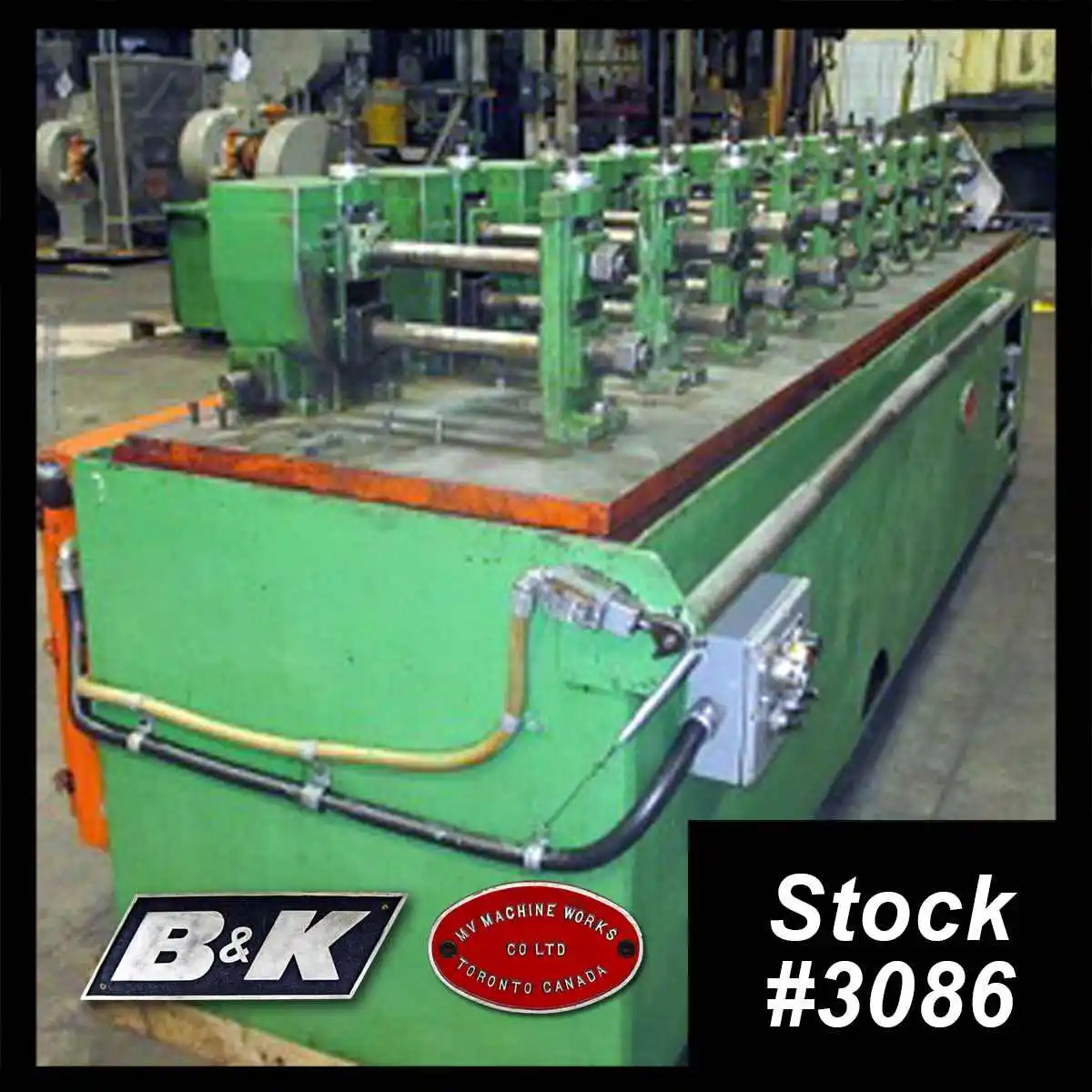

10 Stand x 1-1/4″ x 10″ B&K/MV Rollforming Line

SPECIFICATIONS:
Number of Stands: 10
Line Direction: Right to Left
Roll Space: 10″
Horizontal Centers: 12″
Vertical Adjustment: 4″ – 5″
Base to Center Lower Spindle: 4″
Spindle Diameter: 1-1/4″
Base Working Surface: 26-1/2″
Base Coolant Trough: 31-1/2″
Pass Line: 38″
Line Speed: 150 FPM
EQUIPPED WITH:
Push Button Motor Starter
Safety Stop Bar
Coolant Tank
Straightener
Mandrel Type Uncoiler

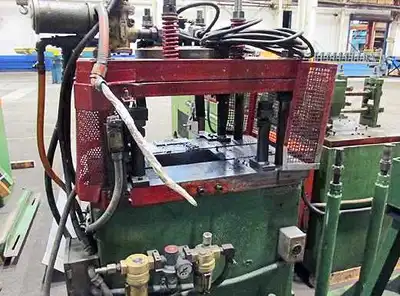

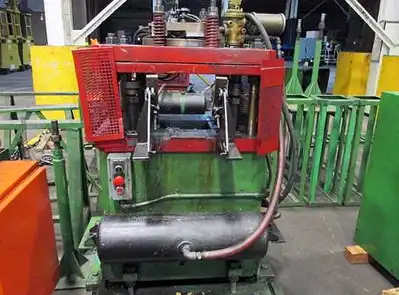

MV 15 Ton Pneumatic 4 Post Cut-Off
14′ Run Off Table
5 HP 3 Phase Motor
