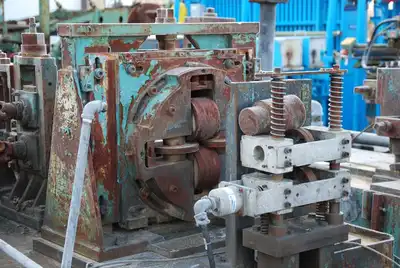

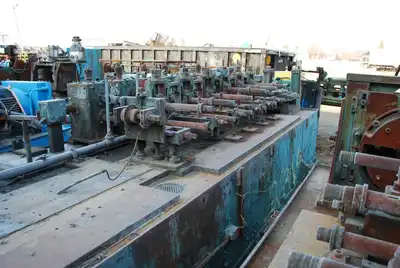

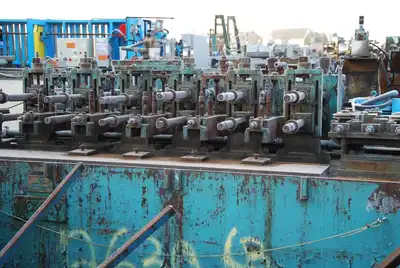

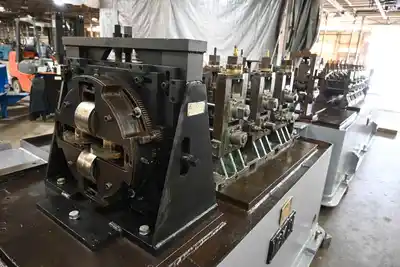

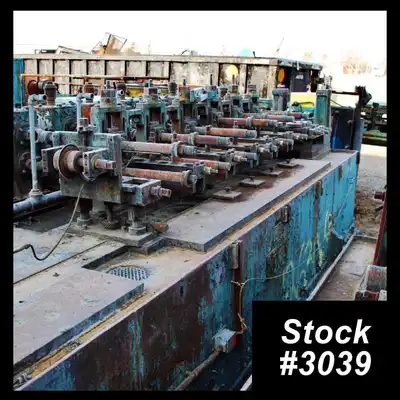

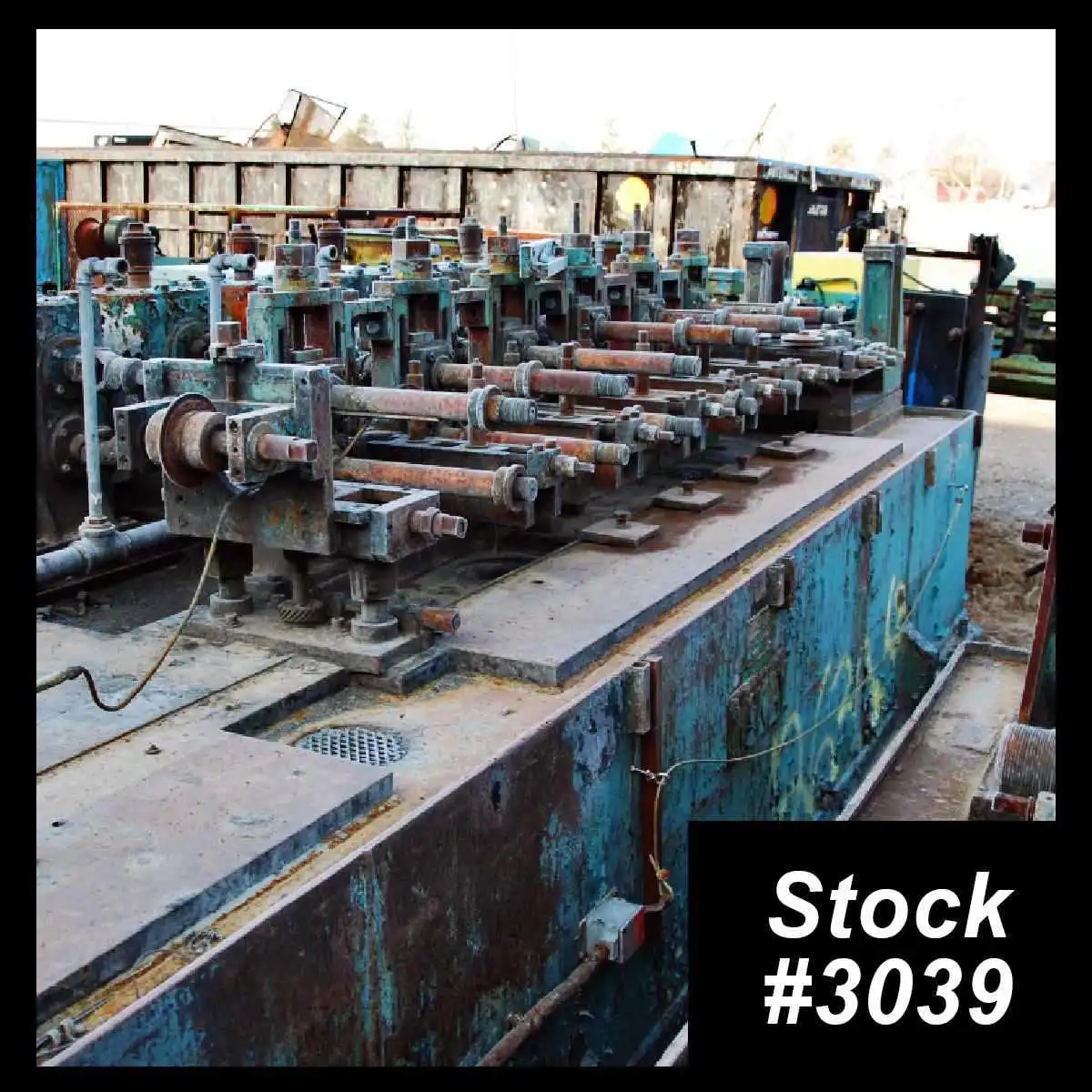

2″ (50 mm) MCKAY High Frequency Tube Mill
Overview
Specifications
| Dimensions | Multiple Pieces, 1 Truckload | Multiple Pieces, 1 Truckload |
|---|---|---|
| Weight | 25,000 Lbs. | 25,000 Lbs. |
PRELIMINARY SPECIFICATIONS:
Maximum Tube Diameter: 2″ (50 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Wall Thickness: To Be Determined
Minimum Wall Thickness: To Be Determined
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI
Driven Spindle Diameter: 1-3/4″ (44.4 mm)
Line Direction: Right to Left
FORMING MILL:
4-Roll Entry Guide
(3) Driven Breakdown Stands
(3) Driven Fin Stands
(6) Idle Side Roll Units
WELDING SECTION:
Note: No Welder
Seam Guide
Ironing Pass
SIZING MILL:
(3) Driven Sizing Stands
(3) Idle Side Roll Units
Double Sided Turkshead, 8-Roll
Measuring Wheel
OVERALL DIMENSIONS: Multiple Pieces, 1 Truckload
APPROXIMATE WEIGHT: 25,000 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
