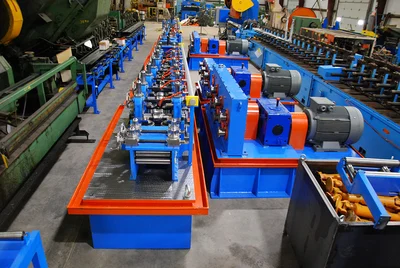

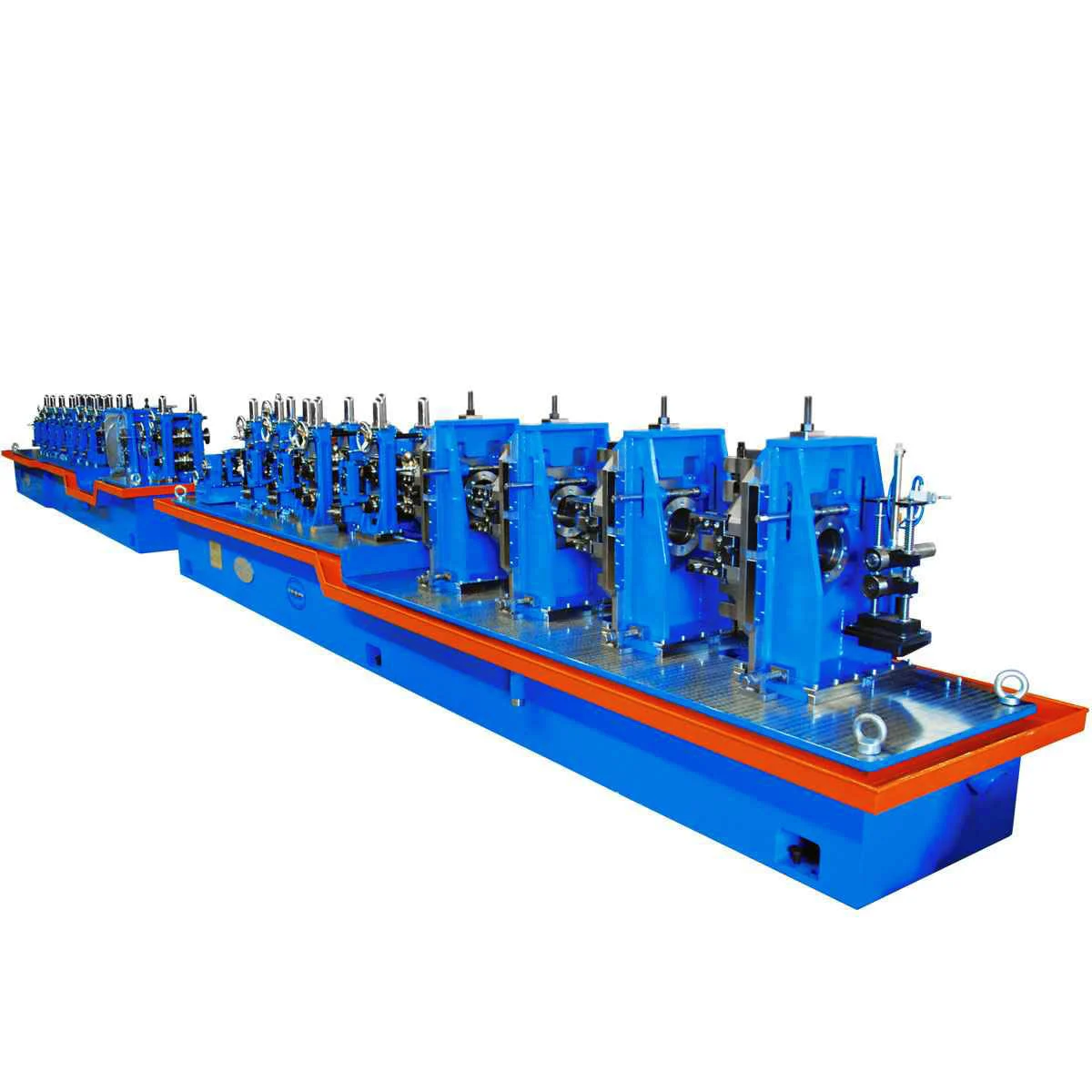

New 3-1/2″ (89 mm) ERWTech/UCG High Frequency Tube Mill Line

SPECIFICATIONS:
Maximum Tube Diameter: 3-1/2″ (89 mm)
Minimum Tube Diameter: 1/2″ (12.7 mm)
Maximum Square: 2-3/4″ (70 mm)
Maximum Rectangles: 1-1/2″ x 4” (40 mm x 100 mm)
Wall Thickness: .027″ – .160″ (0.7 mm – 4 mm)
Maximum Strip Width: 11″
Maximum Line Speed: 320 FPM (100 m/min)
Machine Maximum Power: 1200 kW
Line Direction: Right to Left

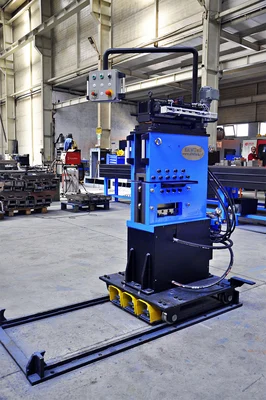

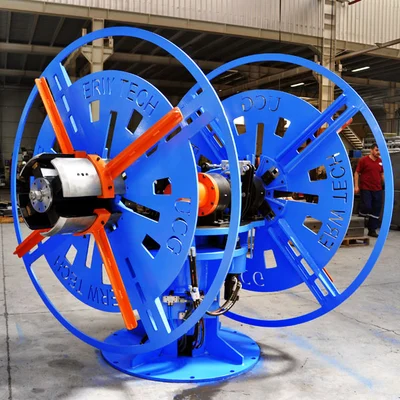

DOUBLE UNCOILER:
Capacity: 11,000 Lbs per side
Strip Width: up to 12″
Coil ID: 18″– 20″
Coil OD: up to 72″
Hydraulic Rotation & Expansion
Pneumatic Brake & Lock Pin
Hydraulic Unit

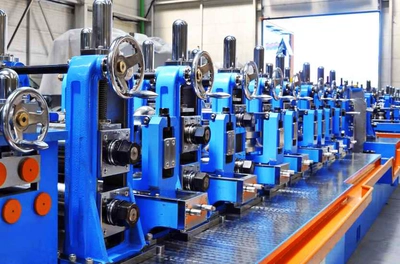

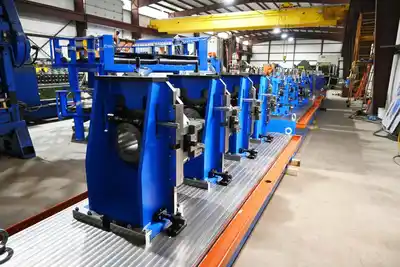

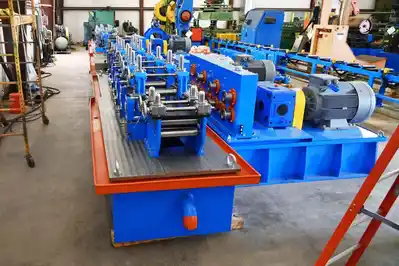

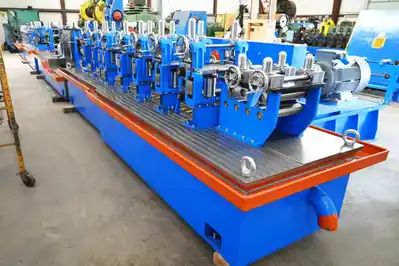

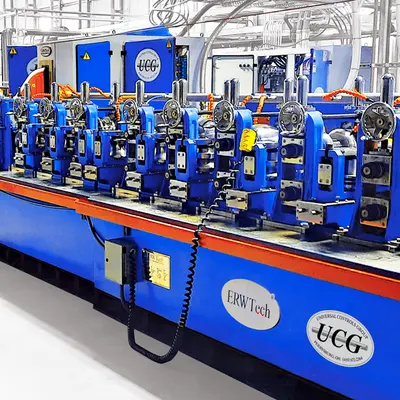

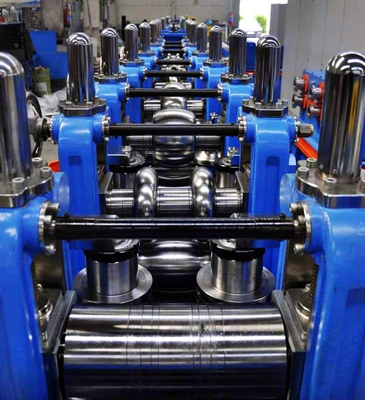

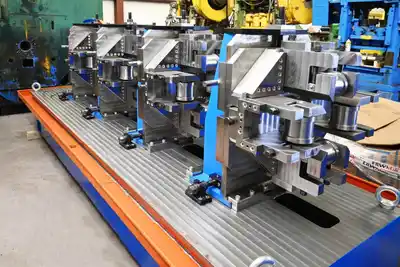

FORMING MILL:
4-Roll Entry Guide
(3) Driven Breakdown Stands
(5) Idle Side Rolls
(3) Driven Fin Stands
WELDING SECTION:

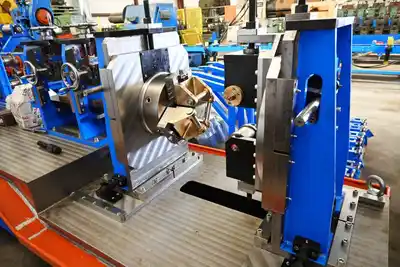

3-Roll Weld Pressure Unit
Single Scarfing Unit

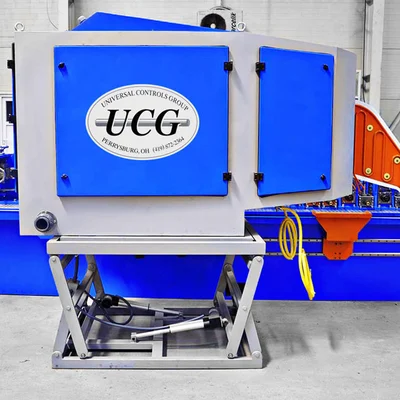

WELDER:
300 kW Solid State, High-Frequency
Input: Volts: 480
Amps: 630
Freq. HZ: 60
Phase: 3
Motorized Adjustments
COOLANT SECTION:
Flood-Type
SIZING MILL:
(3) Driven Sizing Stands
(3) Idle Side Rolls
Straightener, Turkshead 4-Roll

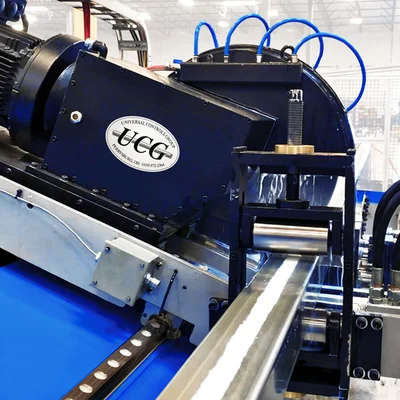

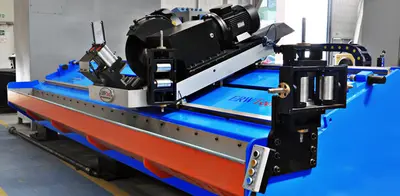

HIGH-SPEED FLYING COLD SAW:
Maximum Tube Diameter: 3-1/2″ (89 mm)
Blade Type: HSS-TCT
Length Measurement System
Touch Screen Controls
MILL DRIVE:
(2) 30 HP DC Motors
UCG Mill Control Panel
UCG Accelerator Control Cabinet
LOCATION: Universal Warehouse, Perrysburg, Ohio
Quality-built machinery from ERWTech and services from UCG offers new tube mill lines that are dependable, affordable, and fully supported out of NW Ohio, USA.
Services provided by UCG include start-up and commissioning, installation management, training for your staff, in-stock common replacement parts for quick delivery, technical support, maintenance and more.

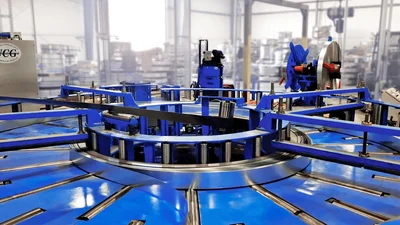

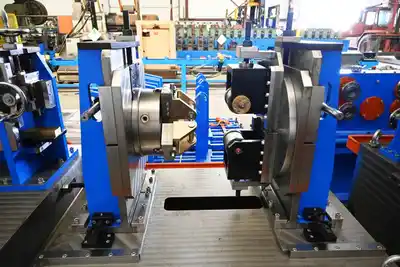

New high-frequency tube mill lines are available with uncoiler, shear & end welder, strip accumulator, rolling mill, solid state high-frequency welder, high-speed flying cold saw, automatic packing system and more.
Contact us for a machine or complete line quote 1 (419) 872-2364.
