Applications Include:
Removing DCM extractives
Washing DIP
Washing high kappa kraft pulp

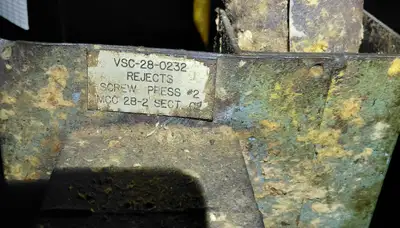

Dewatering rejects
Fiber sludge dewatering
Features:
All wetted parts of high-grade stainless steel
The pneumatic counter-pressure system with piston-type individual baffles This combined with a mechanically adjusted cone ring ensures a high and even discharge consistency
The drill pattern of the screens and the close tolerances between the screw flight and the screens prevent blocking.
Improved hard facing on the screw flight in the high compression zone significantly reduces wear.
The split screen in the high compression zone enables easy screw flight inspection and maintenance.
The shaft screen in the high compression zone increases and evens out the discharge consistency.

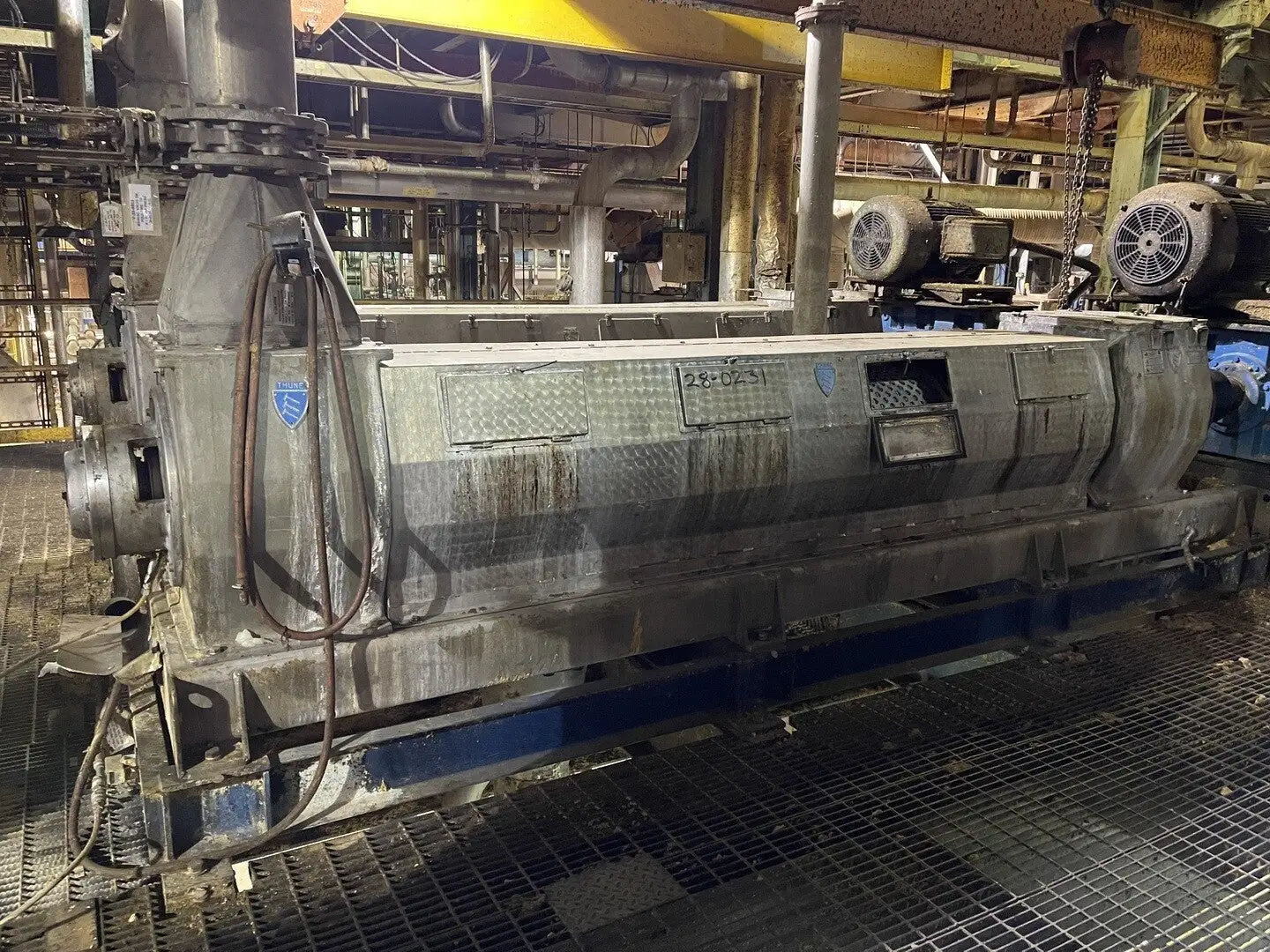

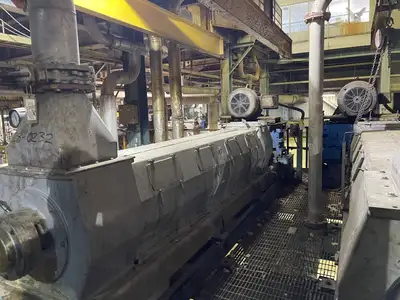

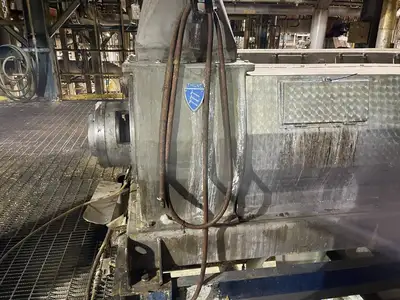

Dewatering Screw Dimensions: 4910 mm length x 950 mm width x 1030 mm height
Net Weight (Just the screw): 3700 kg
Nominal Capacity (Bone Dry Metric Tonnes Per Day): 120 BDMT/D
Screen Cylinder Diameter: 45 cm
Screen Sections: 4

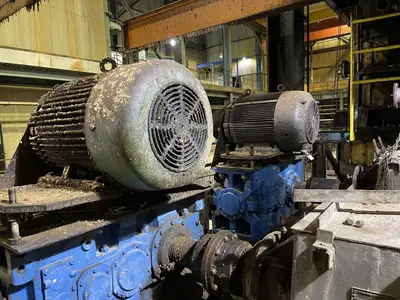

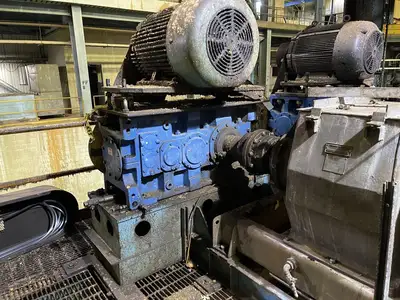

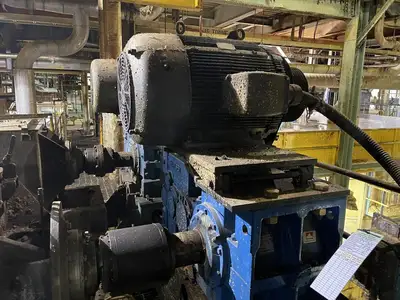

Motor Ratings: 125 hp, 3-ph, 575V, 116 A, 1181 rpm

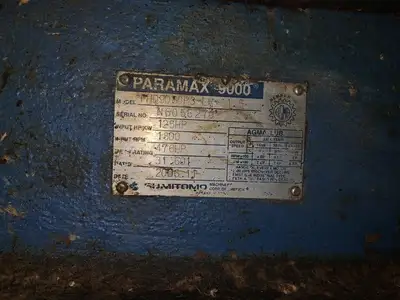

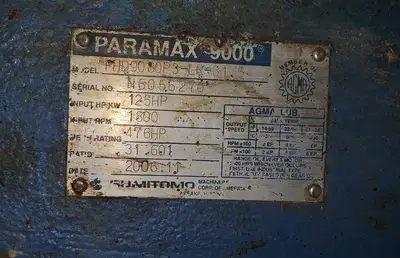

Gearbox Ratio: 31.601
Gearbox Mechanical Rating: 476 hp
