General Information Document

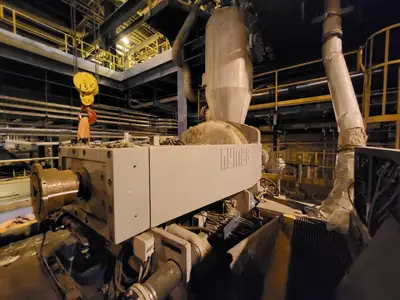

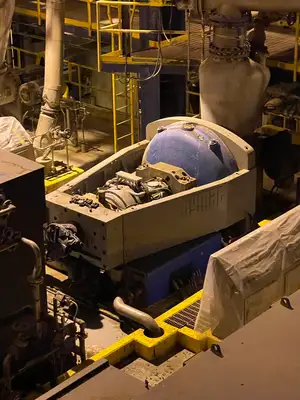

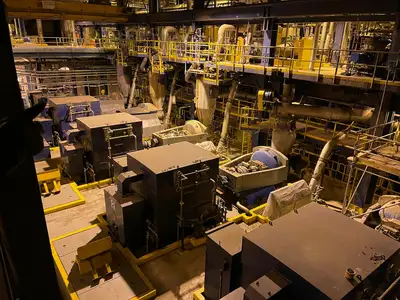

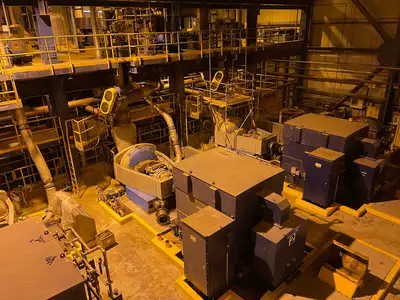

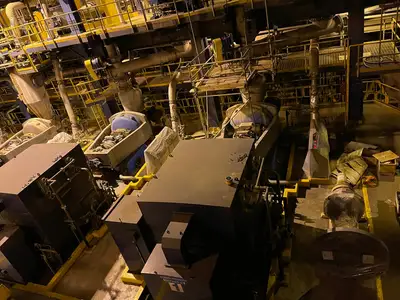

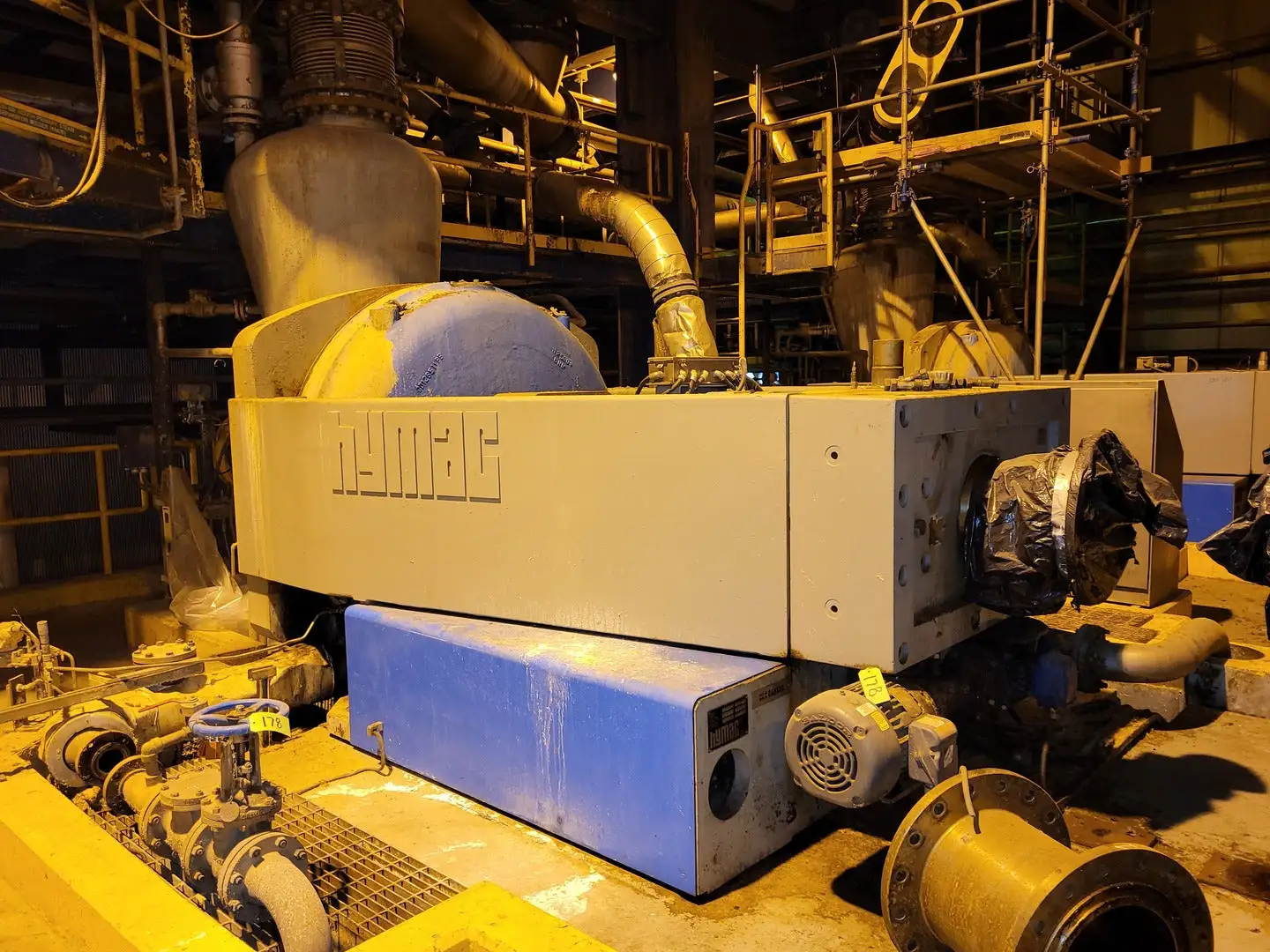

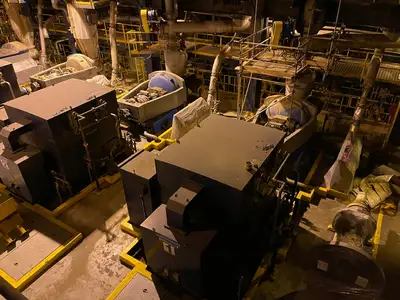

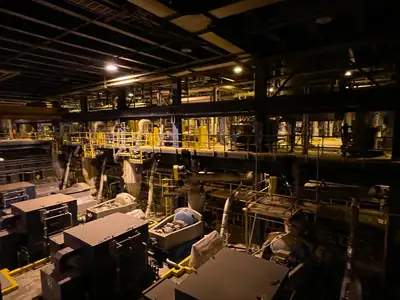

Refiner includes Exciter Panel, Hydraulic and Auto-Lube Unit, Agitated Cyclone Feeder, and Control Unit.

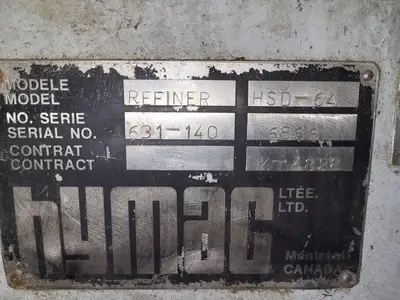

Refiner #1, S/N: 631-120-6865
Refiner #2, S/N: 631-140-6866
Refiner #3, S/N: 631-220-6867
Refiner #4, S/N: 631-240-6868
Refiner #5, S/N: 631-320-6869
14,000HP, 13800V Water-Cooled Synchronous Motor available separately under SKU 120450.
Refiner Features:
Large diameter inlet allows for reverse flow of steam.
Front radial bearing is located close to the rotor, minimizing deflection and vibration.
Heavy rigid cast ductile iron frame. Cast iron has natural damping characteristics which absorbs vibrations.
Backing plate mounting of stator plate segments speeds up plate change.
Plate positioning system is rigid and maintenance-free.
Plate protection system virtually eliminates clashes.
Proven, high-capacity 115 ton thrust bearings.
