Line Size: 10 in.
Maximum Flow Rate: 2400 GPM
Open Screen Area: 1560 sq. in.
Installation Length: 47.25 in.
Maximum Working Pressure: 150 Psig
Minimum Inlet Pressure Required During Rinse Cycle: 30 Psig
Max Working Temperature: 150 deg. fahrenheit
Inlet/Outlet Flanges: 10" ANSI 150#
Drain Valve Connection: 2"
Drain Header Size: 2" minimum

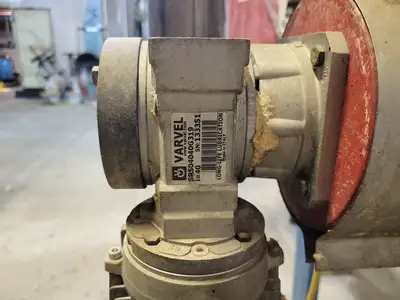

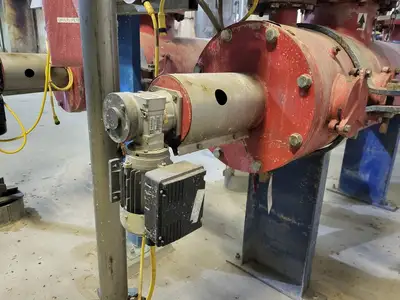

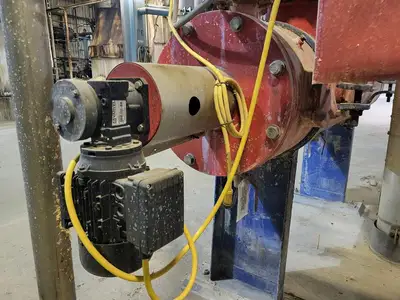

Drive Motor Rating: 1/4 or 1/3 hp, TEFC
Input Voltages to Controller:-
110-120 VAC- 60 Hz-1 Phase
220-240 VAC- 50 Hz- 1 Phase
