**NOTE: Manual listed for different serial number, but same equipment and configuration

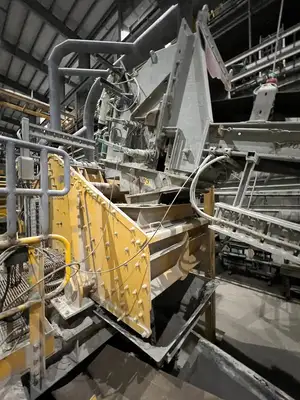

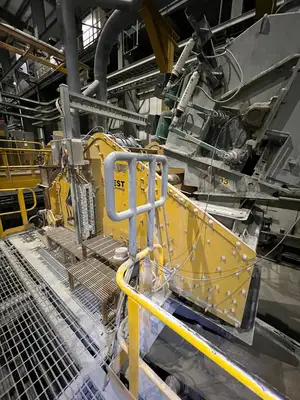

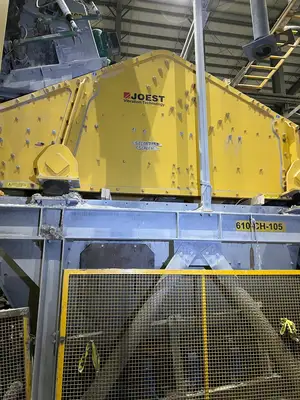

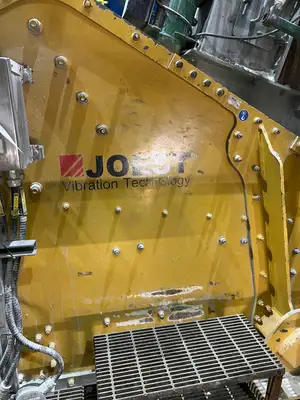

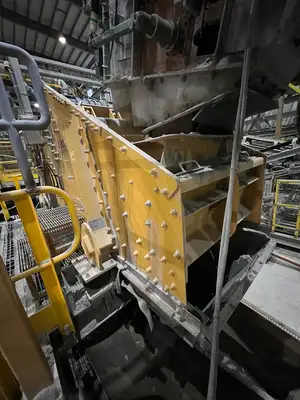

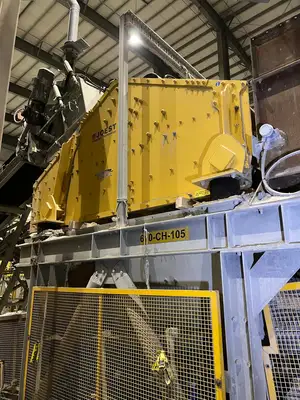

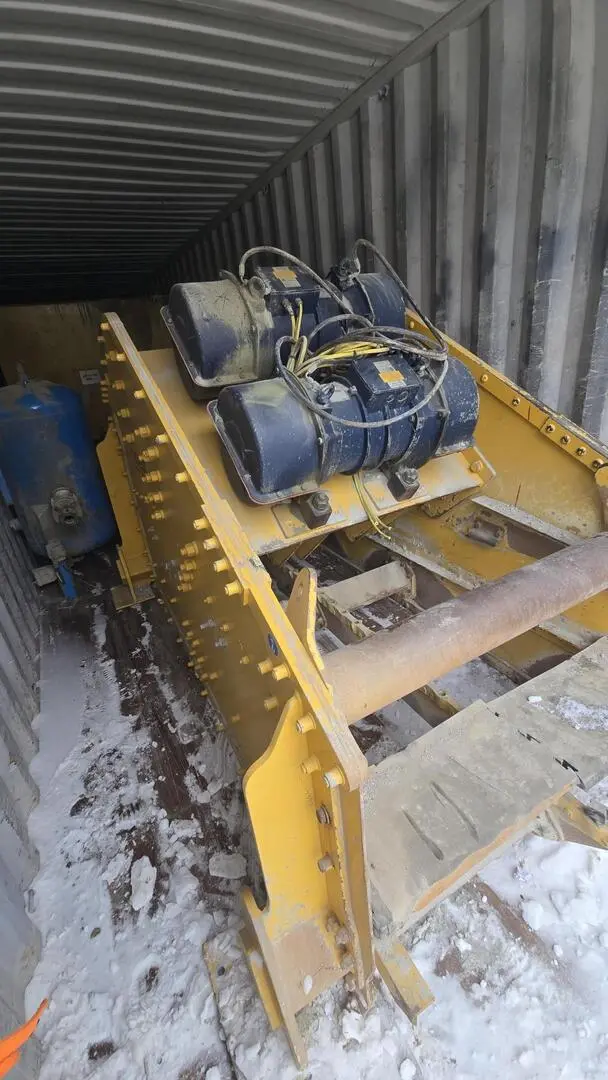

Screen
Application: Secondary screen
Trough Material: AS/NZS 3678-250 steel
Oscillating Weight: 3390 kg
Amplitude: 4.5 mm (9.0 mm stroke)
Operating Frequency: 15 Hz
Screen dimensions:
Width: 4 ft // 1220 mm
Length: 8 ft // 2450 mm
Conveying Capacity: 88 tph max.
Particle Size: 100 mm
Temperature: Ambient

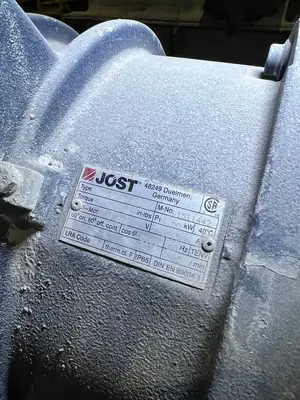

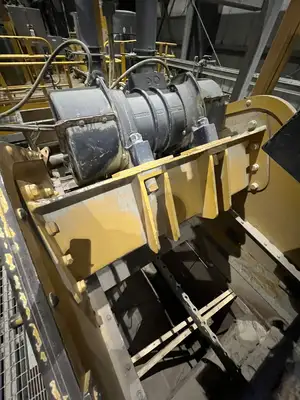

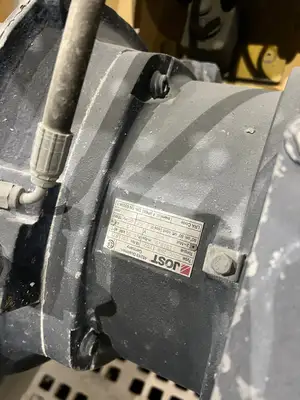

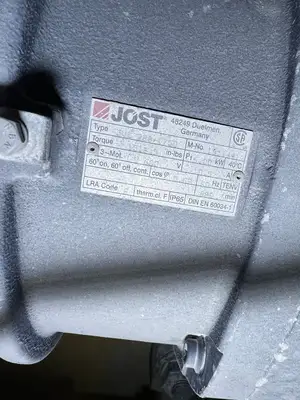

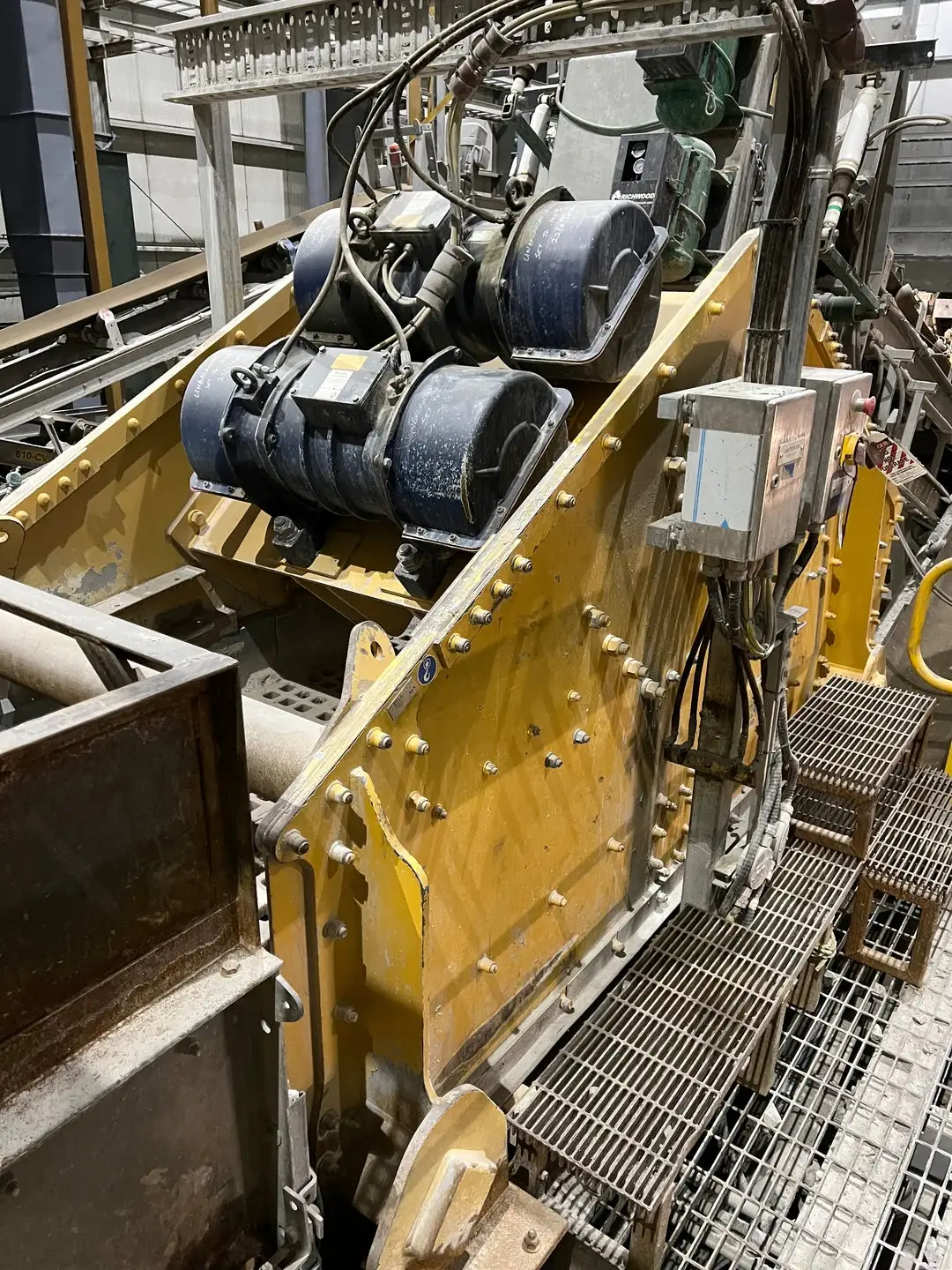

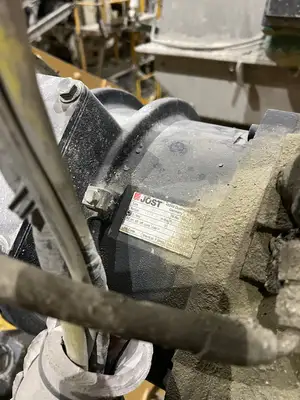

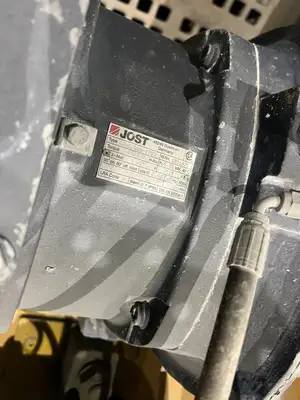

Vibrating Motors
Type: JVC 288-1750
Electrical: 600 V, 60 Hz, 3-ph
Output: 2 x 6.0 kW
Speed: 880 rpm
Torque: 1518.9 in-lbs
Unbalance Adjustment: 90%
