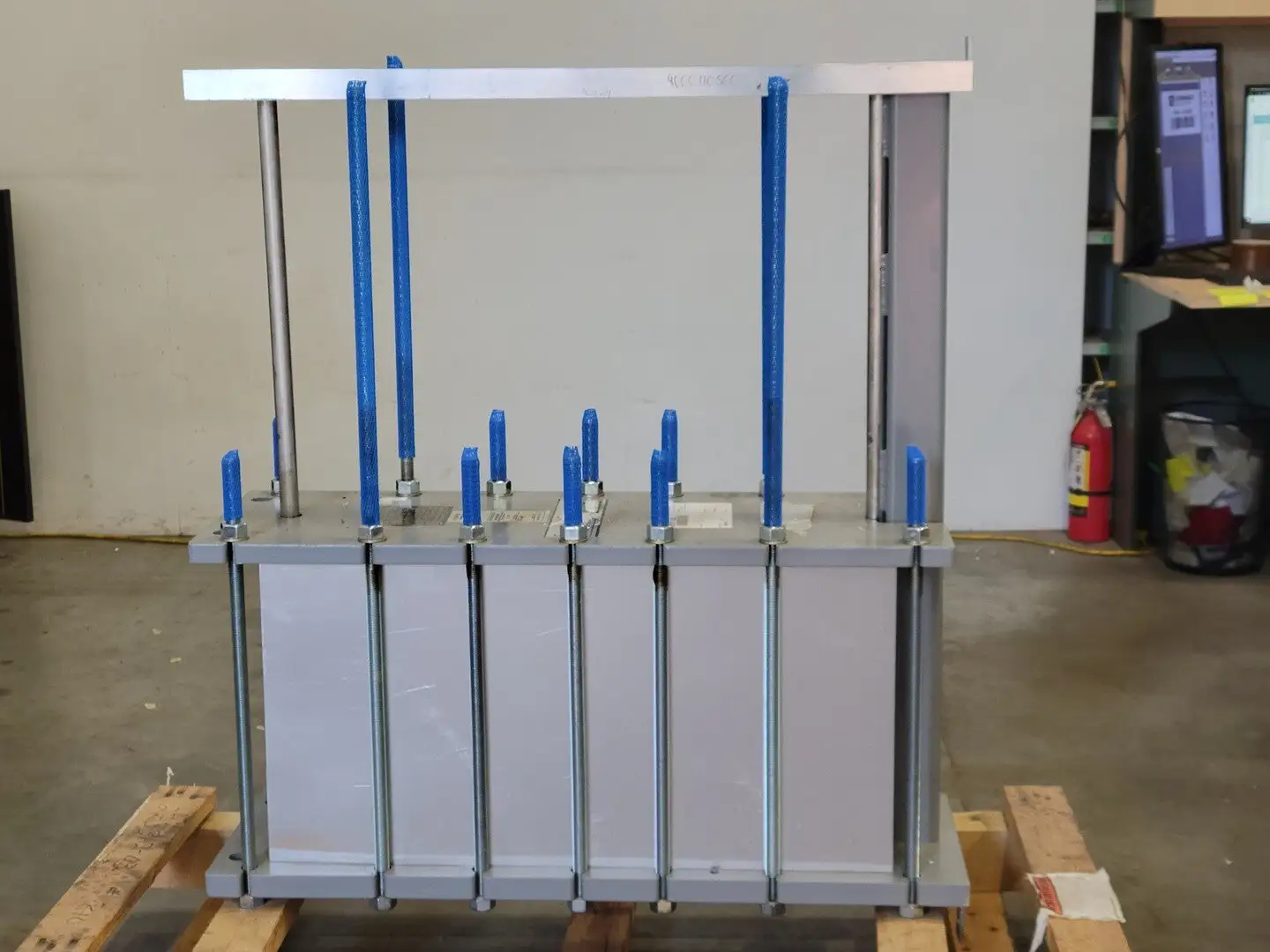

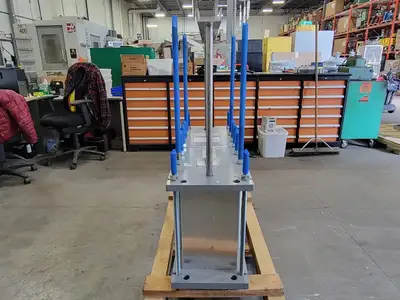

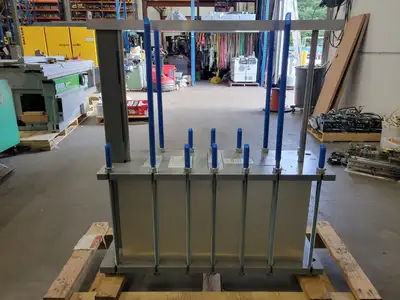

2015 Plate & Frame Heat Exchanger 16.5 in. Plate Pack

Part Number: 5-493-25-135-001
Compressed Plate Pack Dimension (Inside of frame plate to inside of pressure plate):
Min.: 15.9"
Max.: 16.5"
NPT Thread: 2"

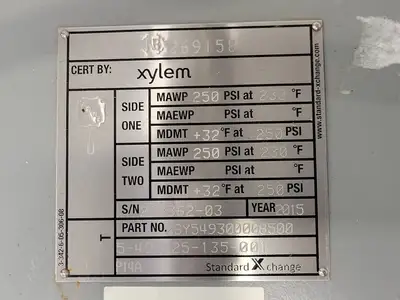

Side One
MAWP: 250 psi @ 230oF
MDMT: 32oF @ 250 psi
Side Two
MAWP: 250 psi @ 230oF
MDMT: 32oF @ 250 psi
