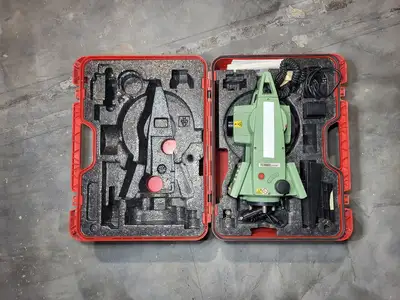

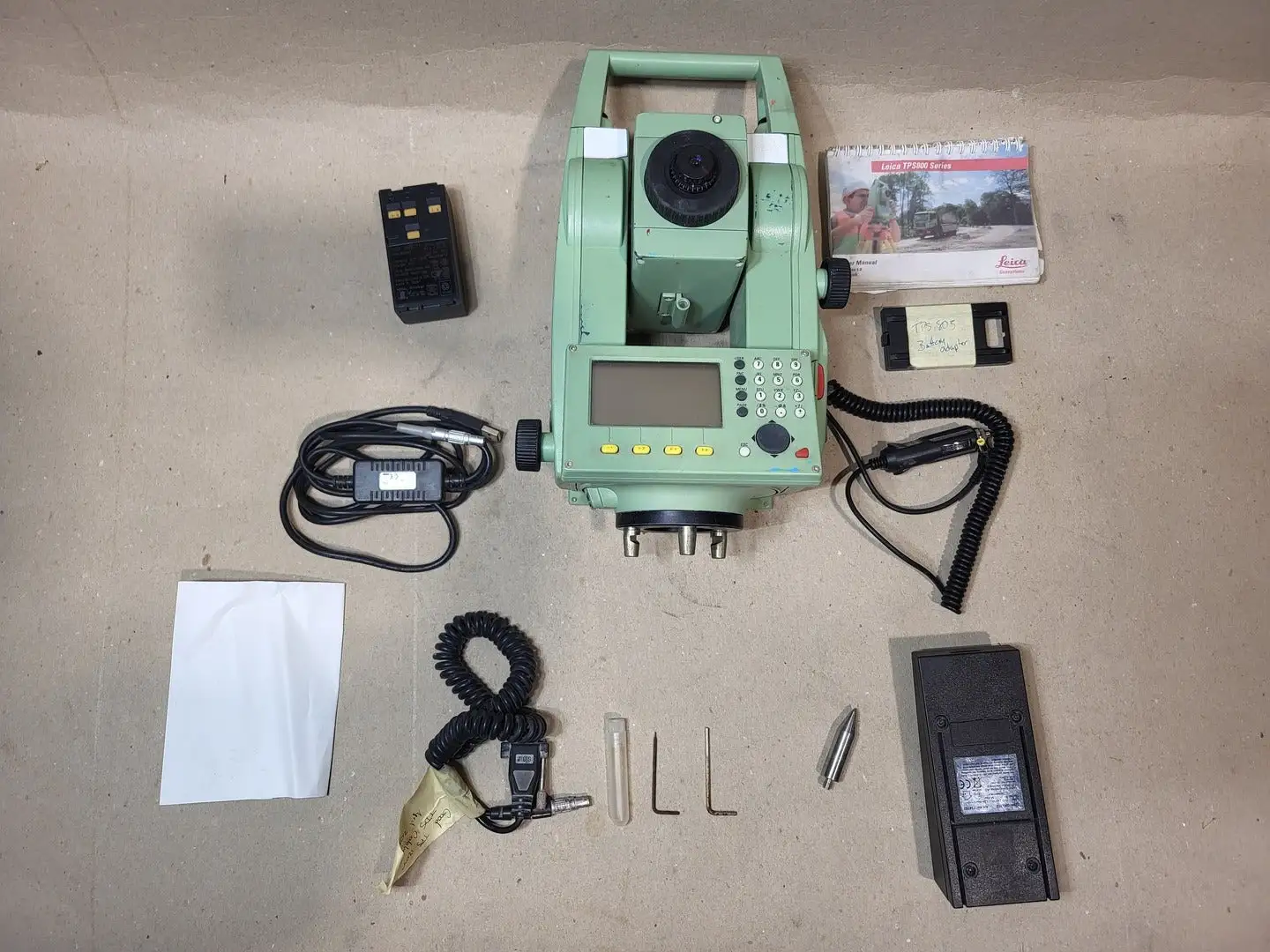

USED LEICA TCR803

Angular Measurement
Angular Accuracy: 3 arc-seconds
Angle Reading Resolution: 1" / 5" / 10" (configuration dependent)
Distance Measurement (EDM)
With Prism: Up to approx. 5,000 m (depending on prism and conditions)
Reflector less Mode: Up to approx. 800 -1,000 m (surface and conditions dependent)
Distance Accuracy: (2 mm + 2 ppm) typical
Compensation
Compensator Type: Dual-axis compensator
Function: Automatic correction of horizontal and vertical axis misalignment
Robotic Functionality
Robotic Operation: Motorized target tracking
Remote Control Capability: Yes (with compatible Leica controller)
Software Compatibility: Leica survey software platforms (model and version dependent)
Data & Connectivity
Communication Interface: RS-232
Internal Memory: Integrated data storage for field measurements
Data Export Formats: TXT, CSV, DXF (software dependent)
Environmental Specifications
Operating Temperature: -20°C to +50°C
Ingress Protection: Approx. IP55 (dust and splash resistant)
Field Use: Designed for harsh outdoor and construction environments
Power Supply
Power Source: Rechargeable Leica battery (GEB series)
Battery Voltage: Approx. 7.2 - 7.4 V DC
Typical Operating Time: 8 - 10 hours (usage dependent)
