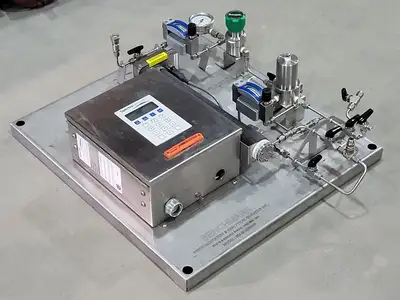

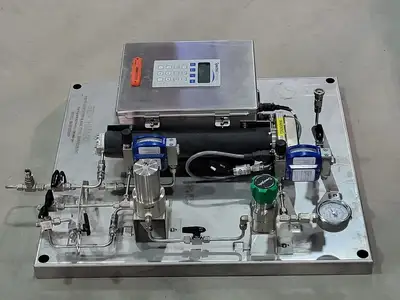

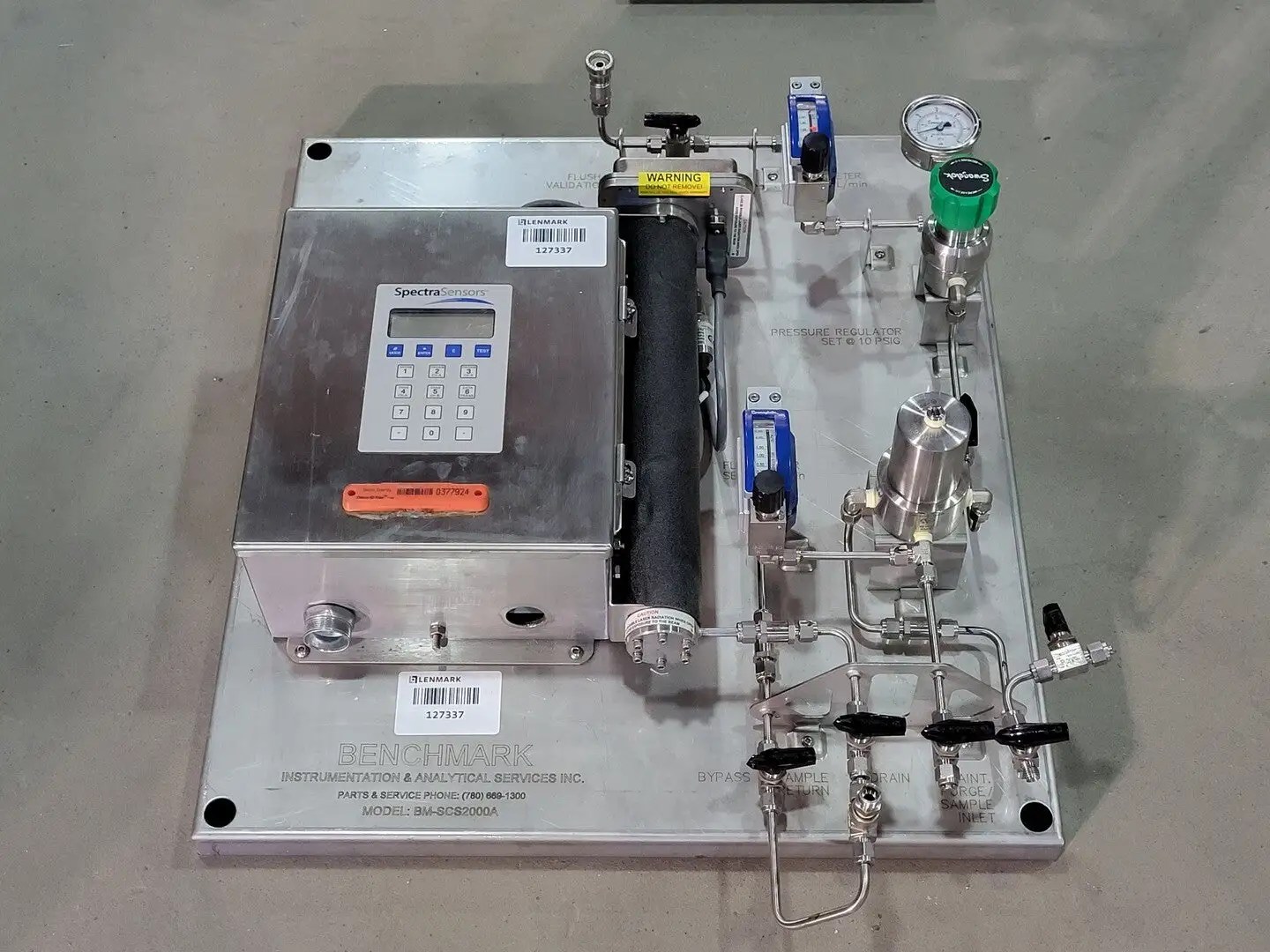

USED BENCHMARK BM-SCS2000A

Consisting Components:-

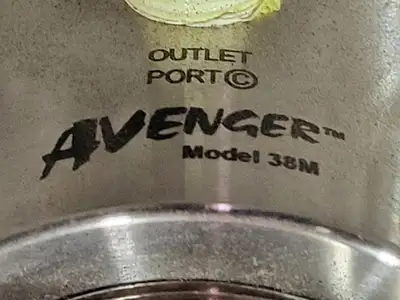

Particulate Coalescing Filter:
Make/Model: Avenger/ 38M
Maximum Pressure Rating: 2000 psig
Port Sizes: 1/4" female NPT
Number of Ports: 5
3-Way Ball Valve:-
Make/Model: Swagelok/ SS-42GXS4
Connection Size: 1/4 in.
Max Working Pressure: 2500 psig
Body Material: 316 Stainless Steel

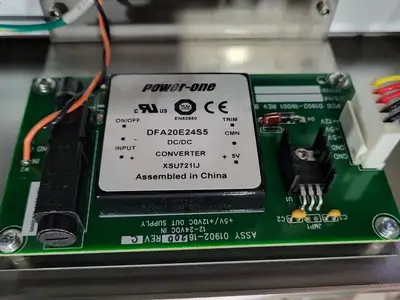

DC-DC Converter:-
Make/ Model: Power-One/ DFA20E24S5
Output Voltage: 5 VDC
Mounting Type: PCB, Thru-Hole
Output Current: 4000mA

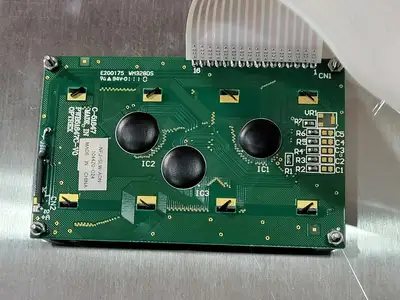

LCD Character Display Module:-
Make/ Model: Optrex/ C-51847
Dot Format: 20 character x 4 line
Dimensions: 98.5 x 61.0 x 15.6 mm
Interface: 8-bit parallel

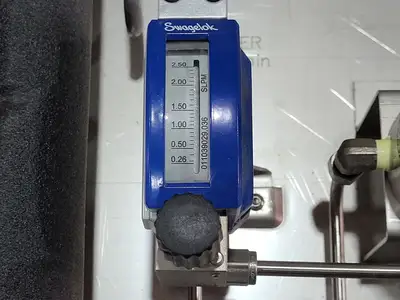

Variable Area Flowmeter:-
Make/Model: Swagelok/ VAF-M1-890-1-0
Process Temperature Rating: -40 to 150 deg. celsius
Maximum Inlet Pressure: 202 bar
Process Connections: 1/4 to 1-1/4 in. NPT; 1/2 to 1 in. ASME flange
Accuracy: 1.6, 2.5, 4.0
