2019 Weighing & Feeding System for Powder, Sliced Almond & Liquid

PDF SPEC SHEET

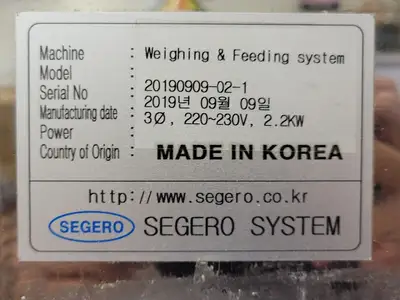

Power: 2.2 kW
Phase: 3
Voltage: 220-230 V
Products: 2 type powders, sliced or crushed almond, heated liquid
Speed: 14 cycle/hour
Systems
Agitating Hopper:
120 L volume
1/2 hp - 1/200 reduction

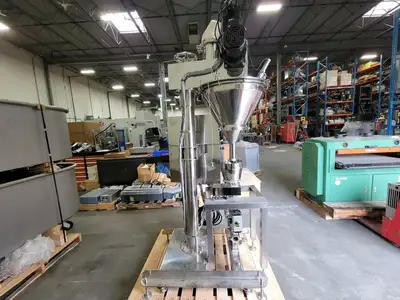

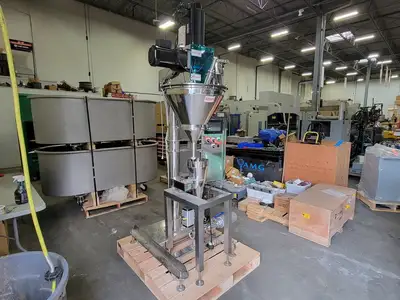

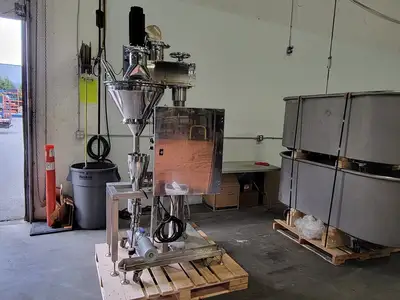

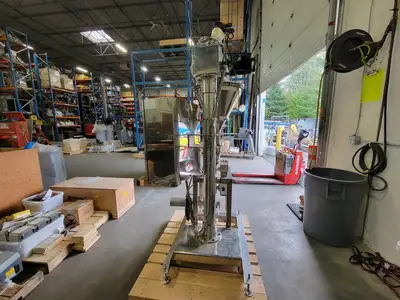

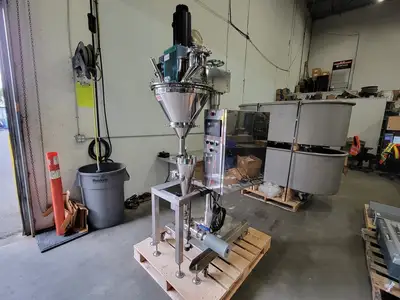

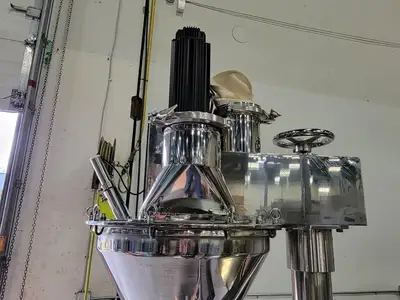

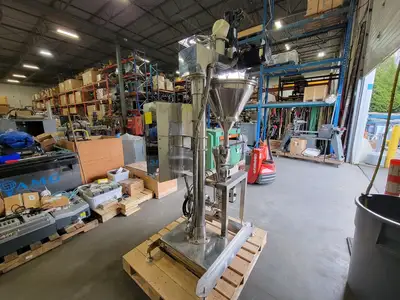

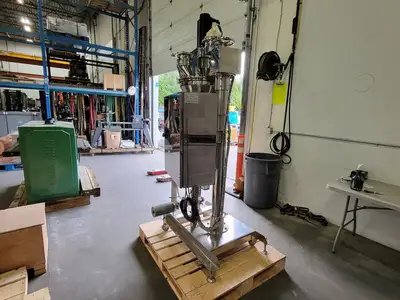

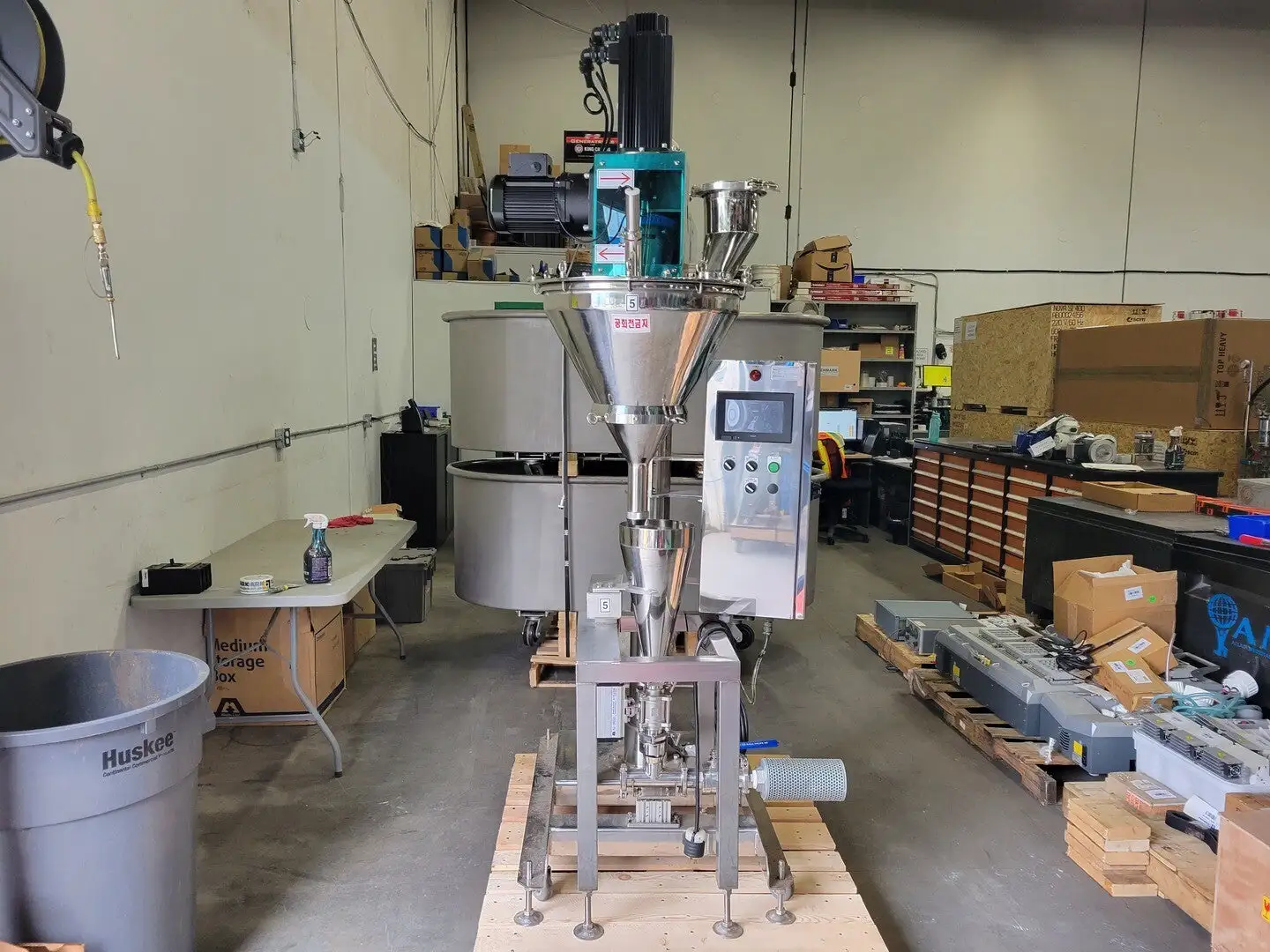

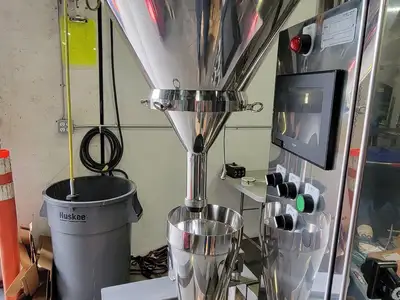

Auger Filler:
400 W motor
30 L hopper volume
Load cell control type
PLC & touch screen
Weighing range: 1,000 g - 4,000 g
Vacuum Loader:
30 L cyclone hopper volume
Capacity: 300 kg/hr
3.75 kW, 380/220 V, 3-ph motor
Vacuum loading type by blowing motor
Weighing system for sliced almond:
Stock conveyor + load cell weighing unit
Weighing range: 10 kg - 15 kg
Weighing accuracy: +/- 1/100 to 1/300
Stock conveyor volume: 100 kg
Electric vibrator feeding type
Weighing status display on touch screen
Bucket & Slide Unit:
Automatic feeding of powder & sliced almond to the mixer from hopper
30 L hopper volume
Air type gate opening type
Slide operating by motor

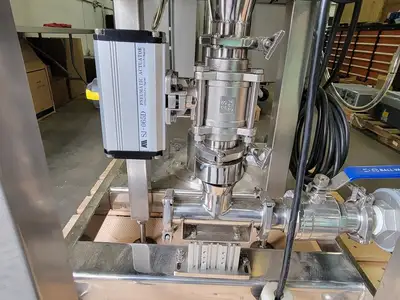

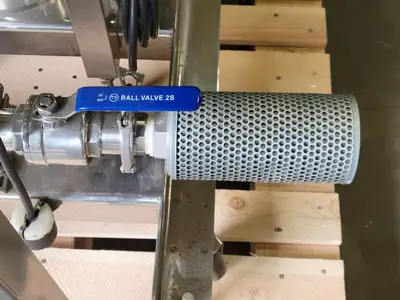

Liquid pumping & 2-way valve:
Preset volume transferring from current liquid tank
Mono pump type by AC servo motor
Nozzle cutter attached
PLC & touch screen control

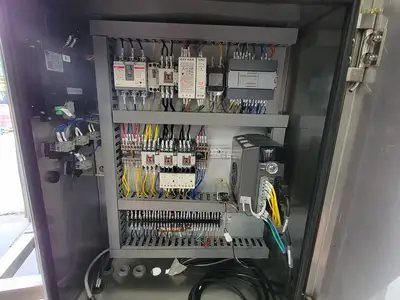

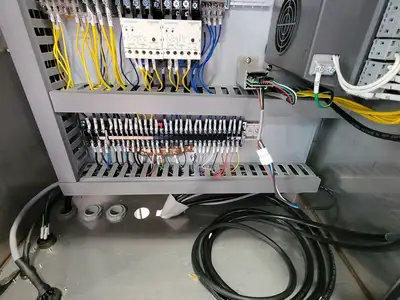

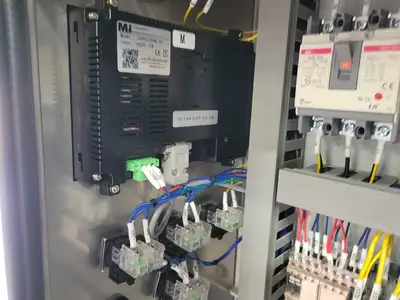

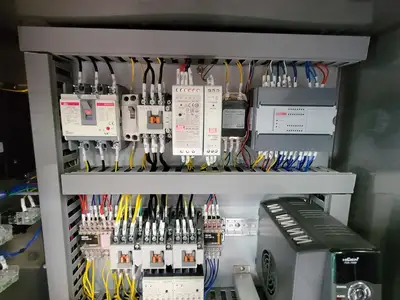

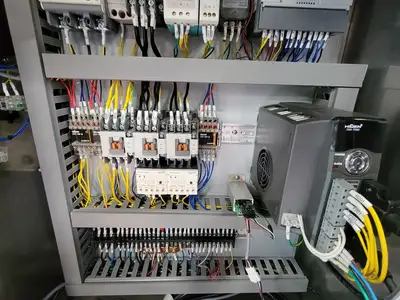

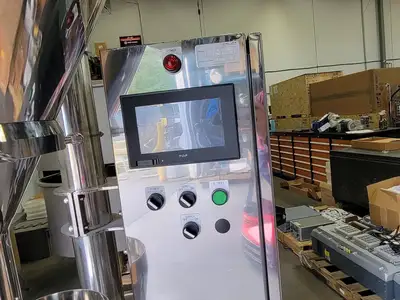

Control box:
Control the devices on the platform
Emergency stop & manual operating function
Waterproof & dust free electric panel
