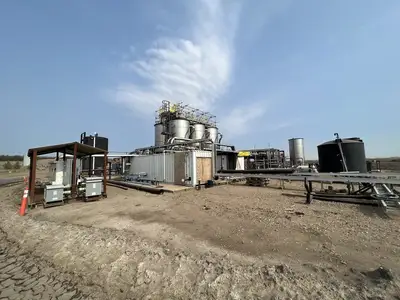

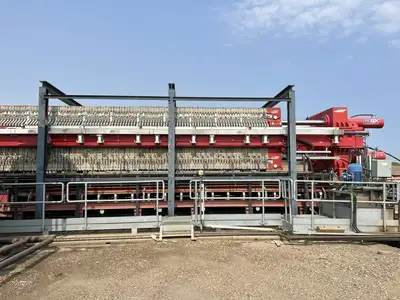

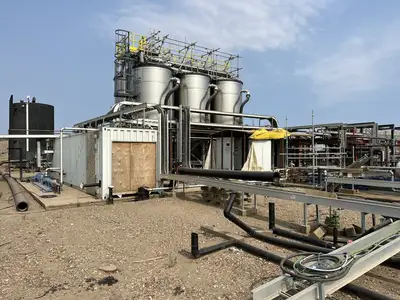

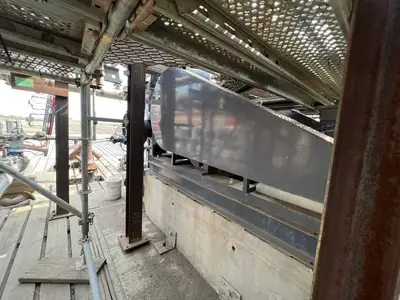

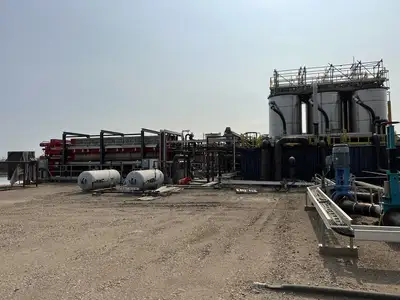

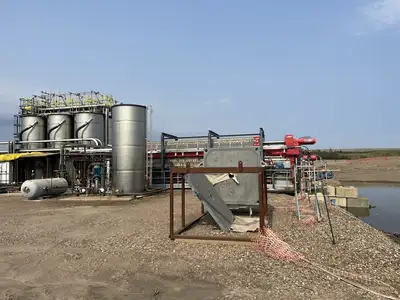

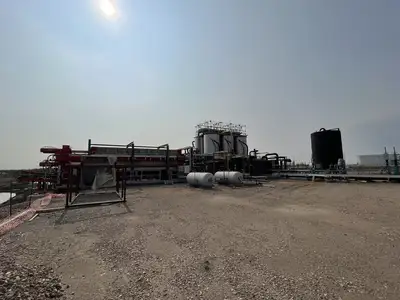

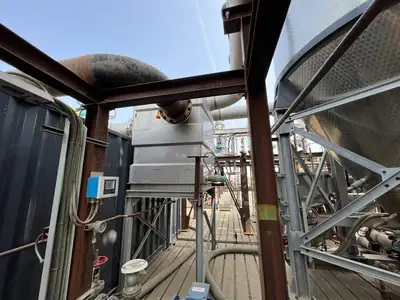

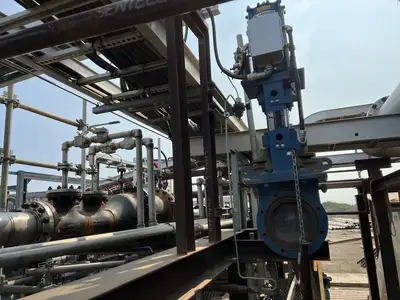

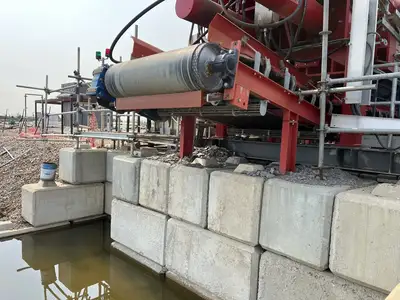

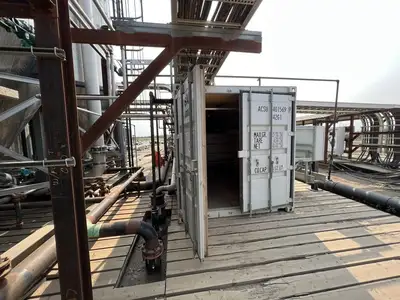

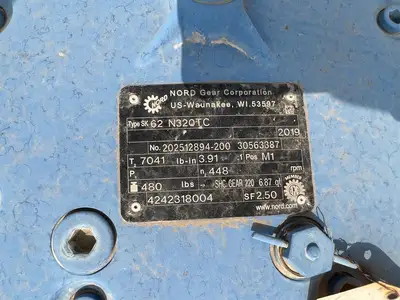

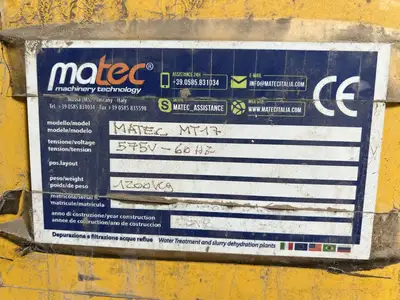

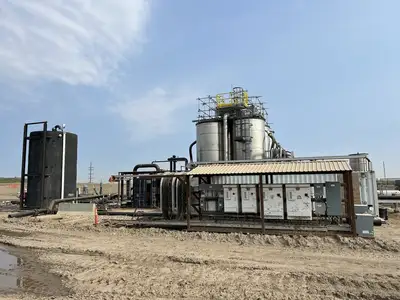

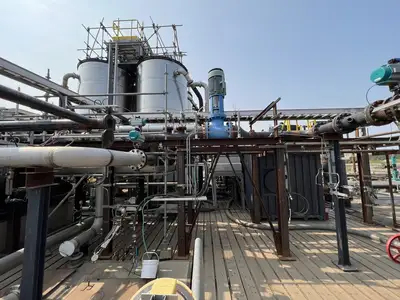

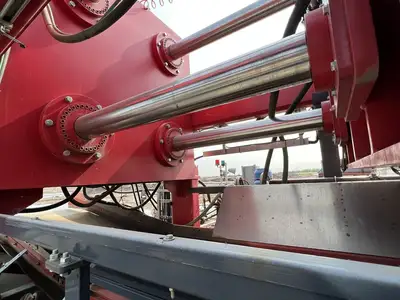

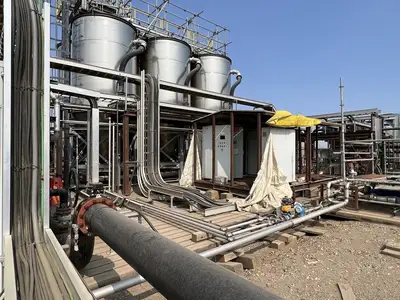

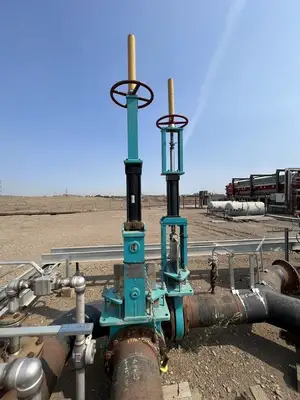

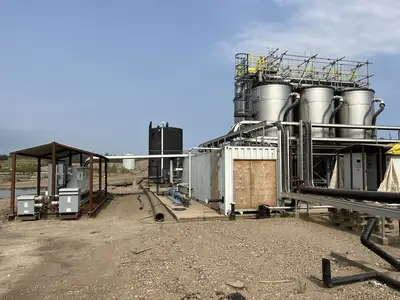

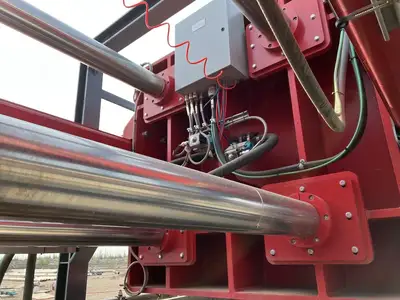

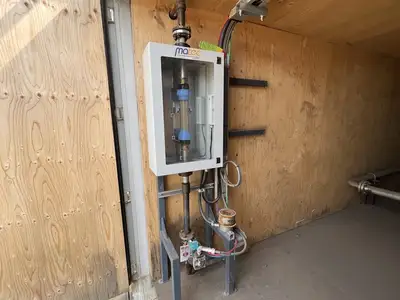

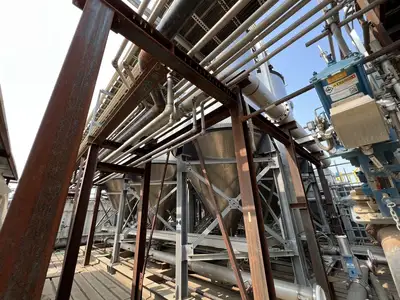

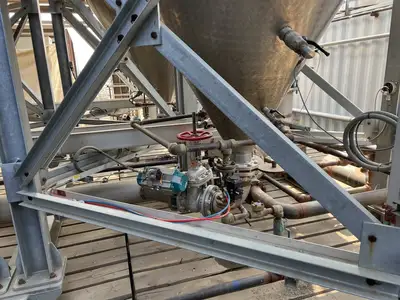

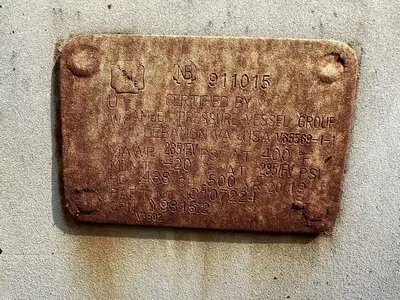

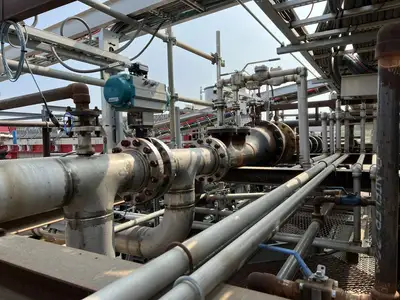

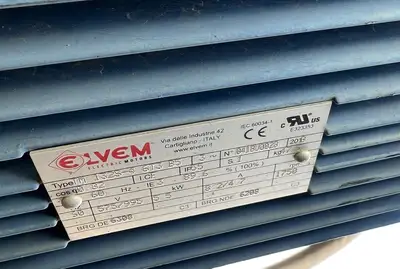

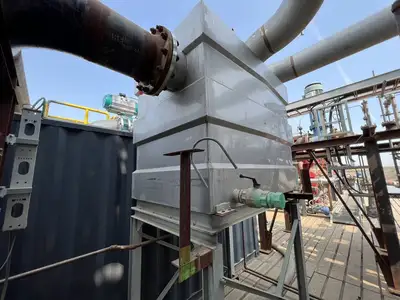

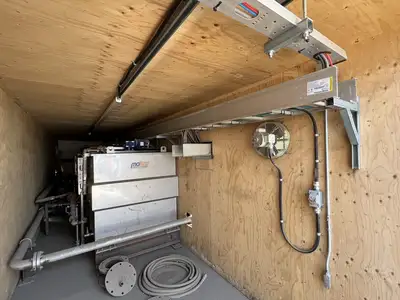

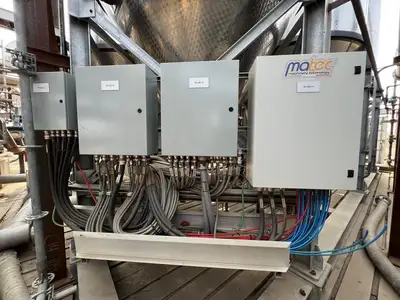

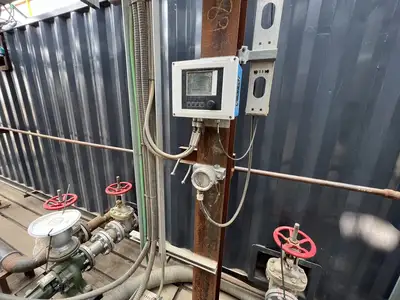

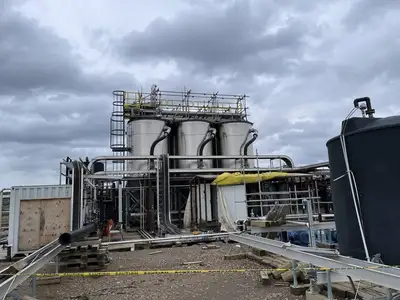

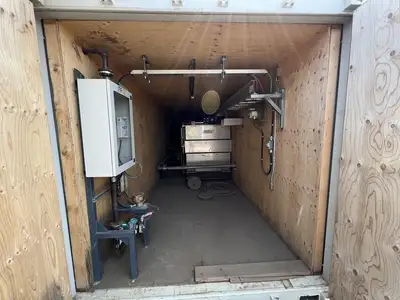

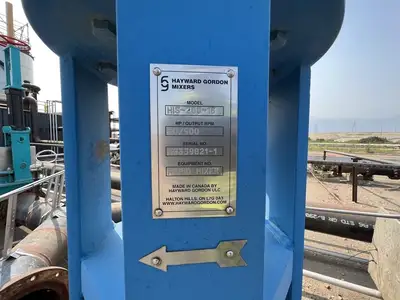

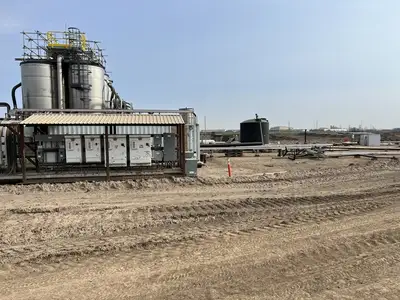

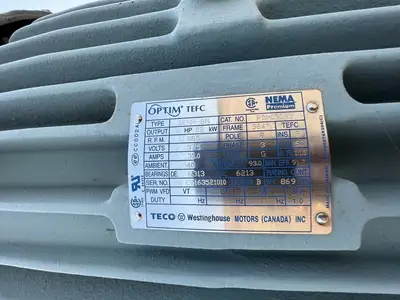

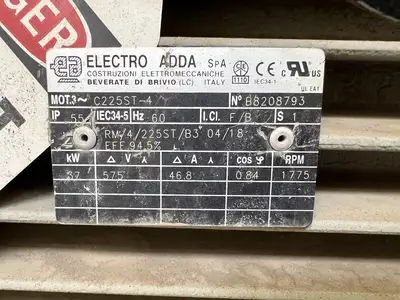

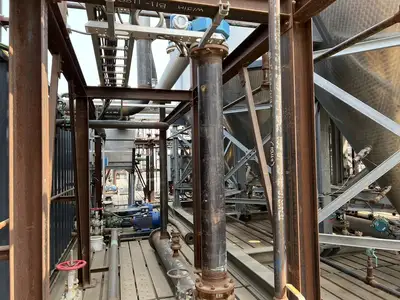

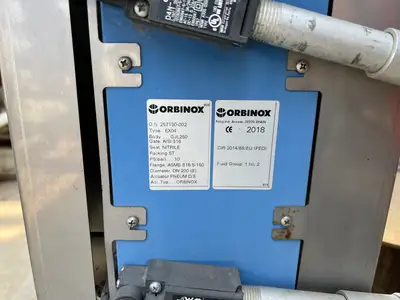

USED 2018 MATEC MAGNUM FP2000X2000

PDF INSTALLATION MANUAL
PDF MAGNUM FILTER PRESS DATA SHEET
Filtration Process
The actual filtration process occurs in the filter pack, consisting of a customized set of plates.
The cloths and under-cloths cover the filtrating surface of the plate, which has small projecting cylinders forming drainage channels.
Once the filter pack is completely sealed, the filtration process begins from the head plate with the feed pump injecting the sludge into the filter plates chambers.
The cake will form uniformly all across the filtrating surface and is ready for discharging once the required moisture level has been reached.

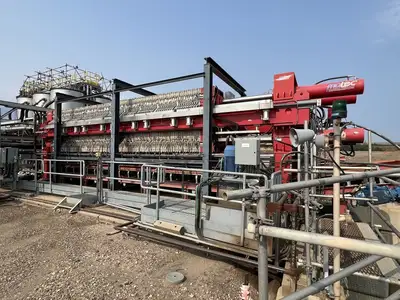

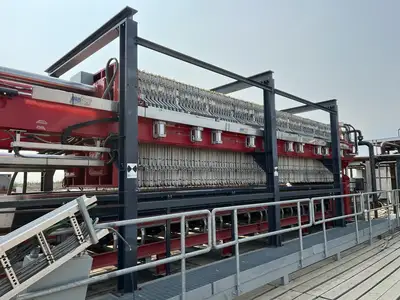

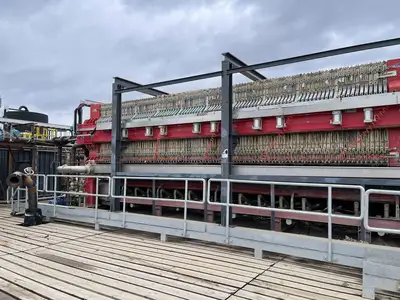

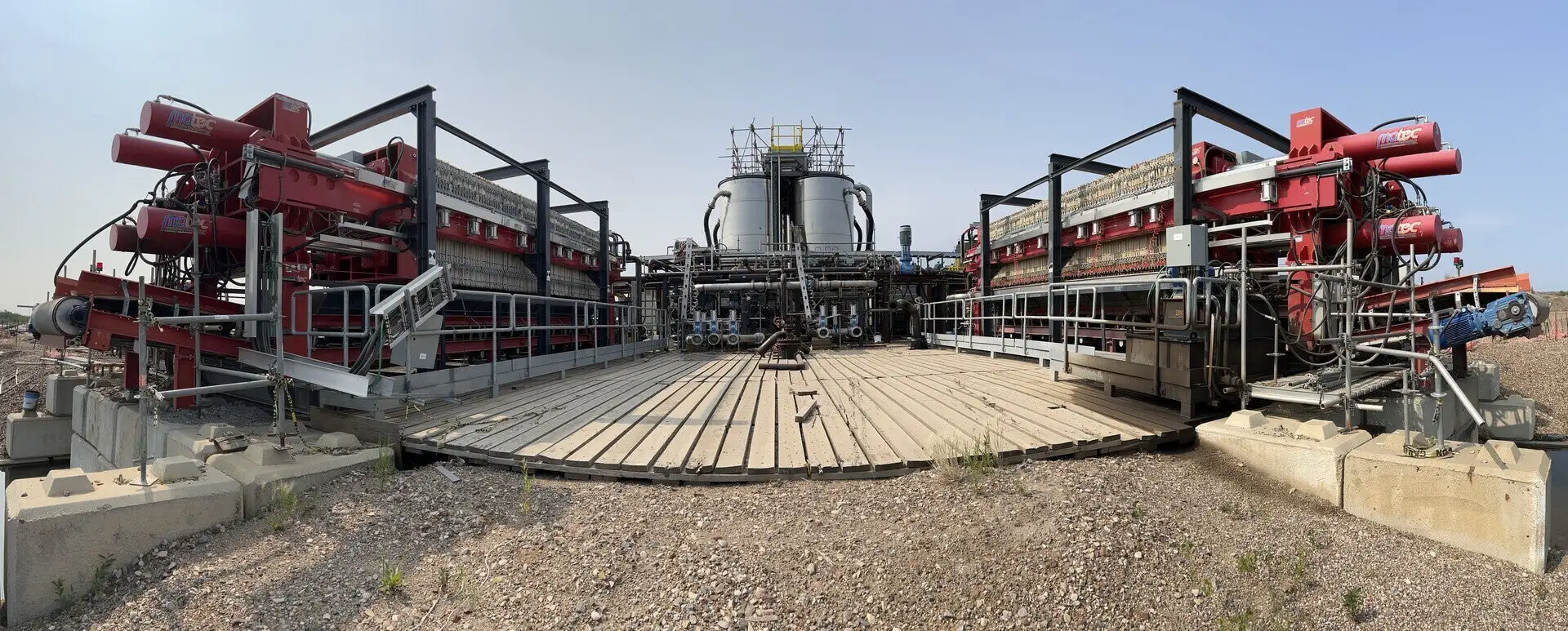

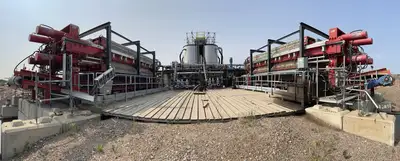

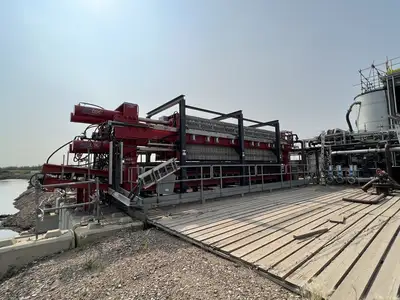

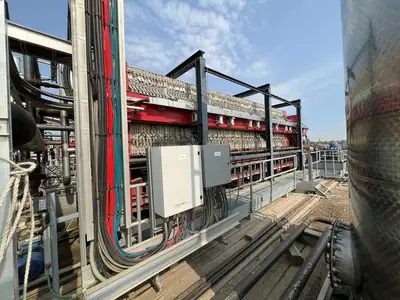

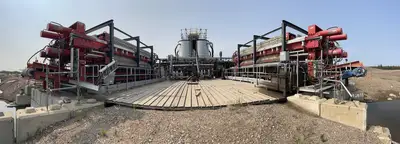

Magum Filter Presses
Qty: 2
System Voltage: 575 V, 60 Hz
Length: 14210 mm
Width: 3430 mm
Foot Wheelbase Length: 12070 mm
Foot Wheelbase Width: 1356 mm
Total Height: 3795 mm
Weight: approx. 57500 kg each
Chamber Volume: 115 L
Capacity Per Cycle: 11500 L
Cu. m/h (2 cycles): 23.00
Ton/h (2 cycles): 42.55
Cu. m/h (3 cycles): 34.50
Ton/h (3 cycles): 63.83

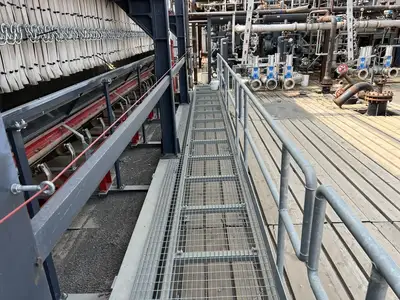

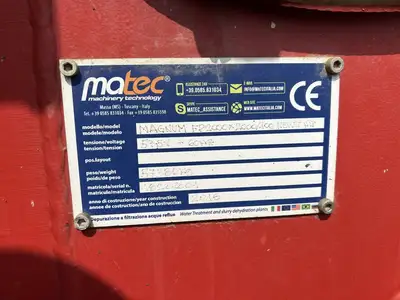

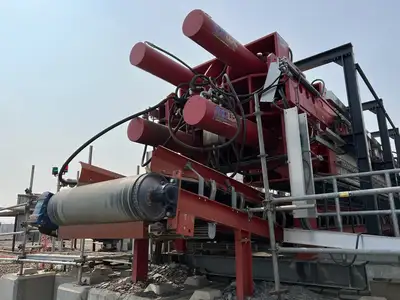

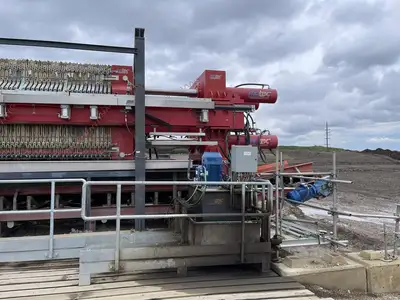

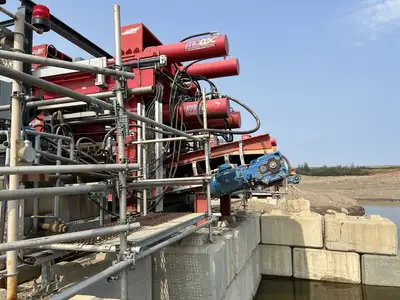

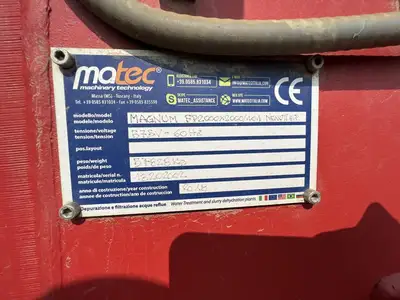

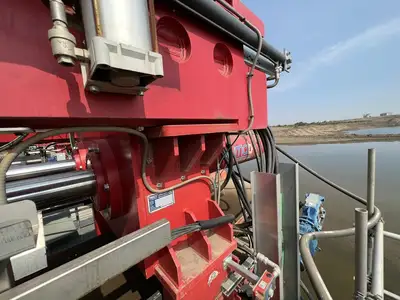

Model: MAGNUM FP2000X2000/100 NEWTT HTP

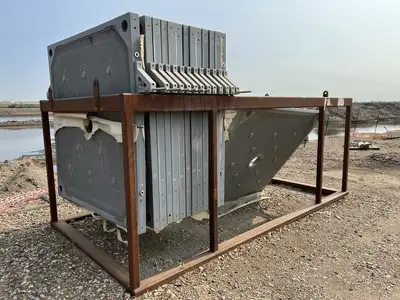

100 plates CH32,5 (plates CH30 (recessed) e CH35 (membrane))

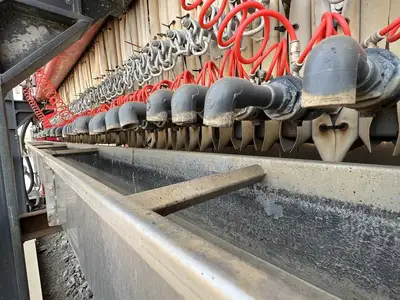

Closed loop discharge
New TT
Centralina
Shakers
Real Wash
Core blow

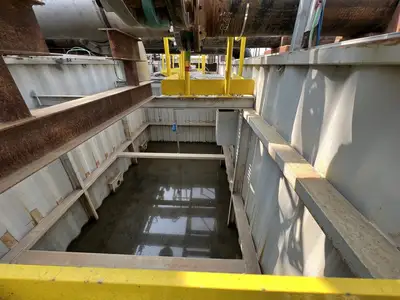

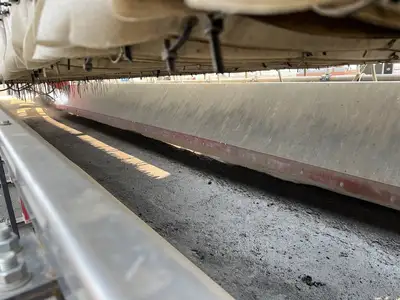

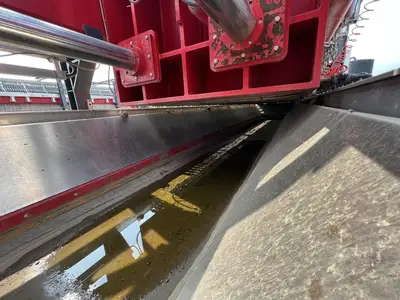

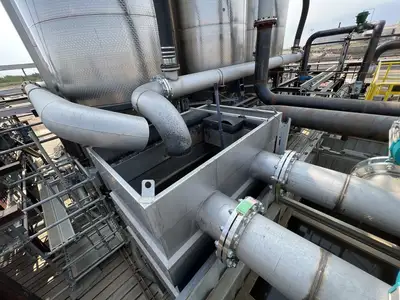

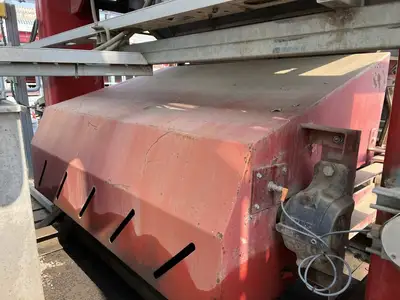

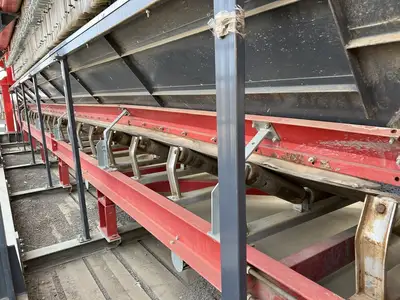

Drip tray

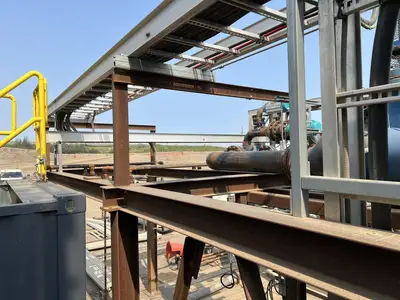

Framing of the structure
Pressure: 21 bar
Tension: 575V 60Hz

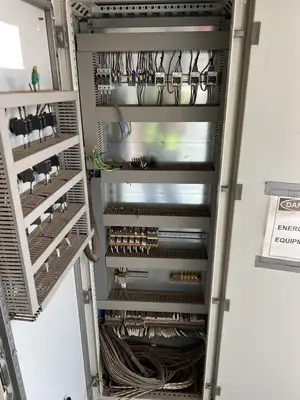

PLC: Allen Bradley
Model: MAGNUM FP2000X2000/101 NEWTT HTP
101 plates CH30 (Plates both CH35 e CH25) Membrane
Open discharge
New TT

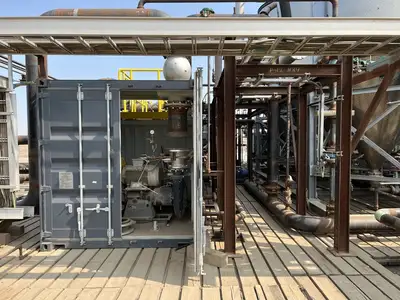

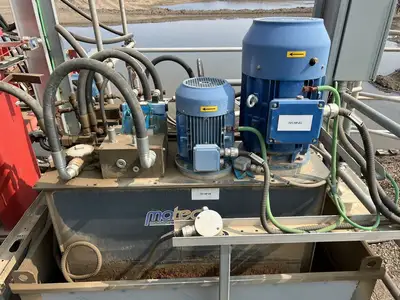

Hydraulic unit
Shakers
Real Wash
Core blow

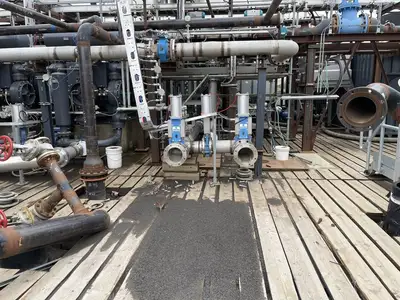

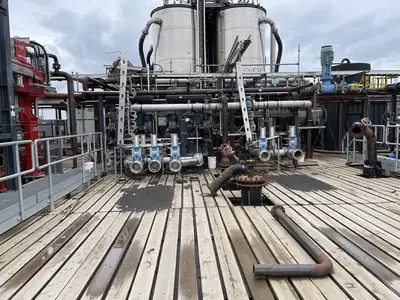

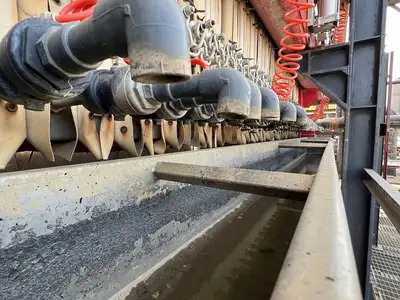

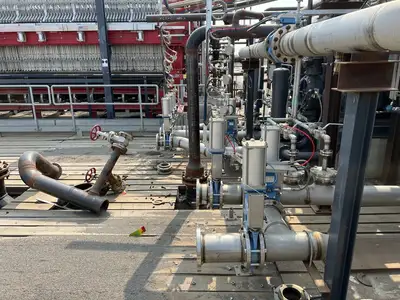

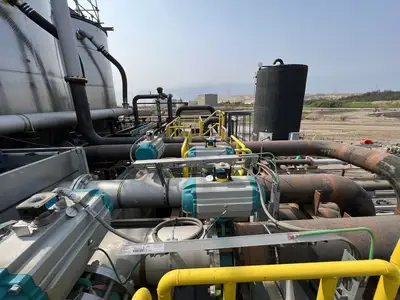

Manifold discharge with valves and tray
Framing of the structure

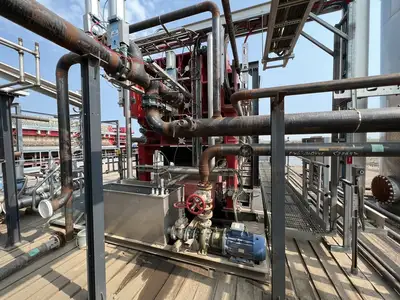

squeezing kit (pump + piping)
Pressure: 21 bar
Tension: 575V 60Hz
PLC: Allen Bradley
NOTE: The ton/h and cu. m/h data above are calculated on a material specific weight of 1.85 and a 35 mm cake thickness

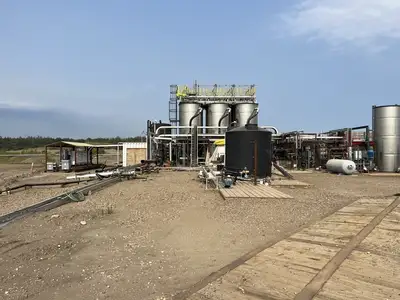

Additional

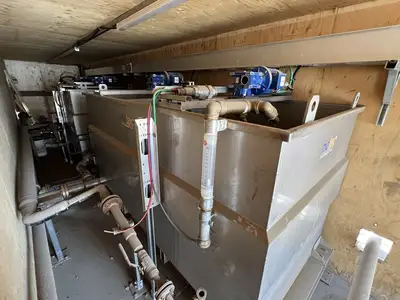

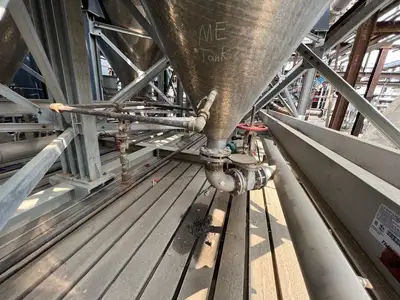

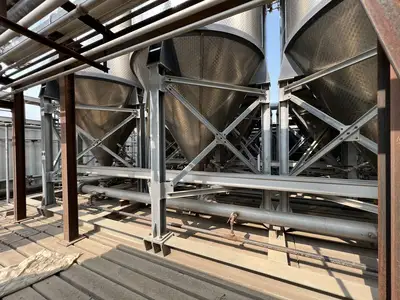

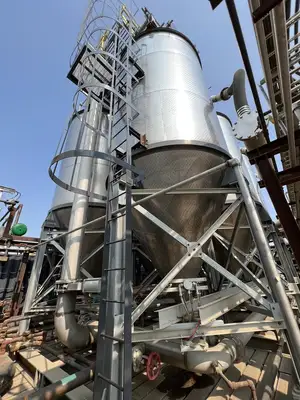

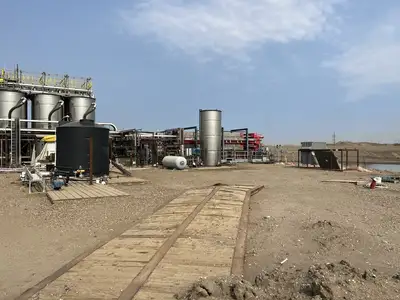

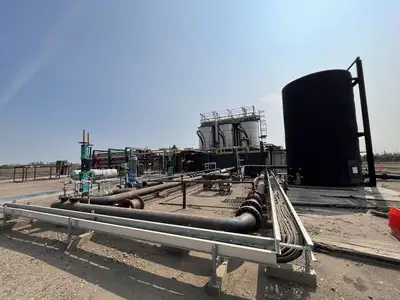

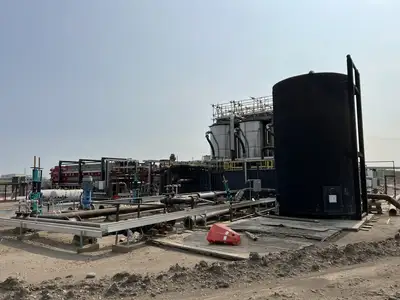

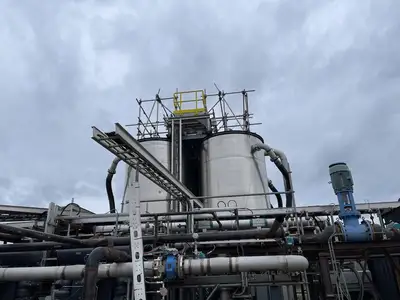

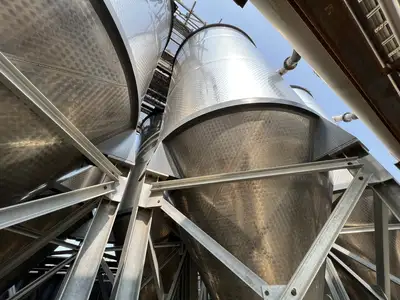

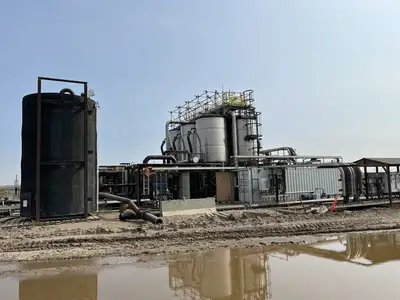

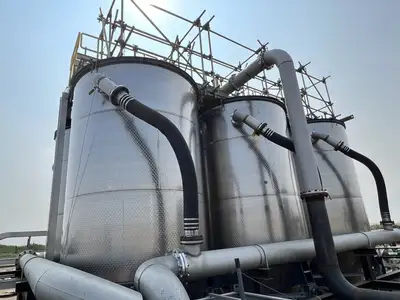

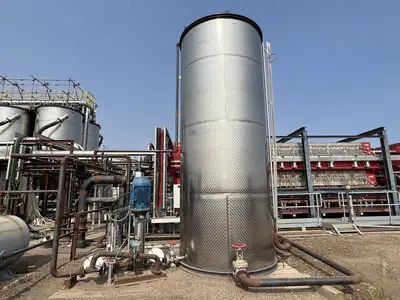

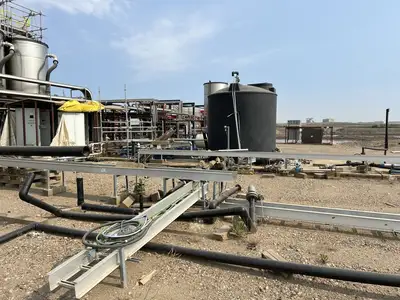

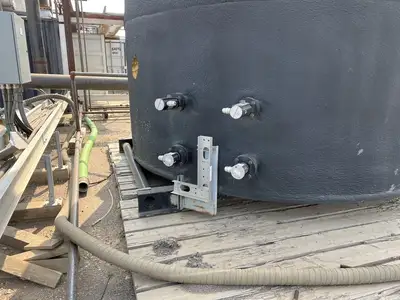

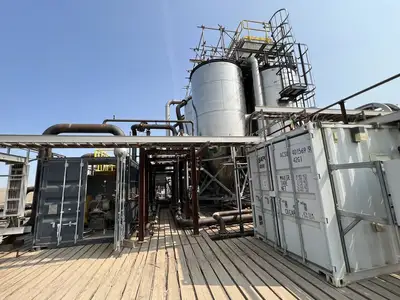

6 - Stainless steel tanks
1 - Smaller stainless steel tank

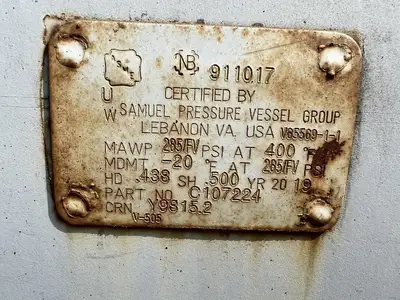

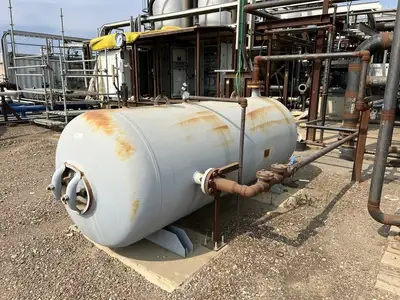

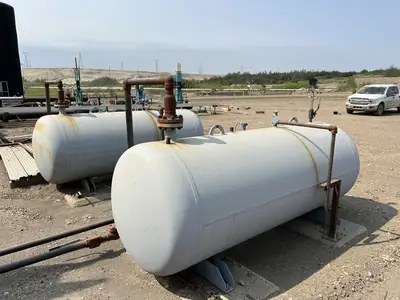

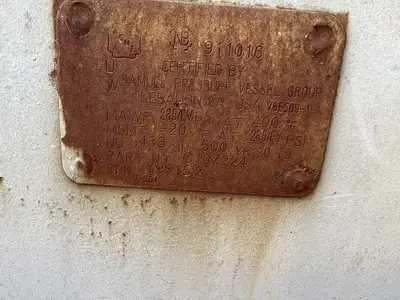

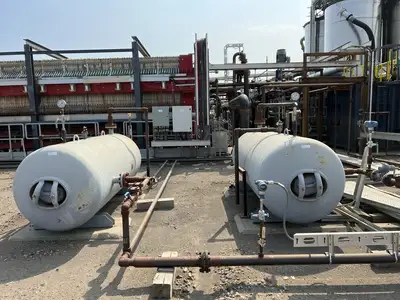

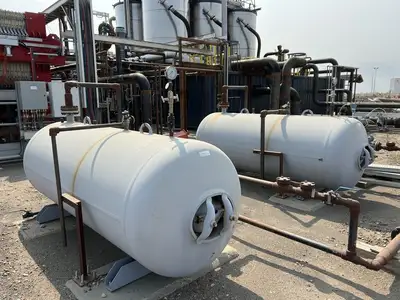

2 - Large receiver air tanks (2019)

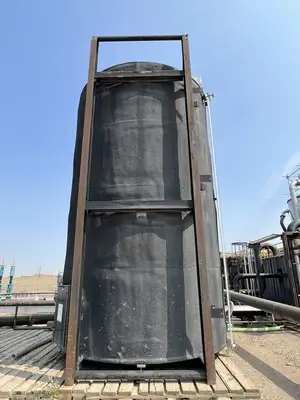

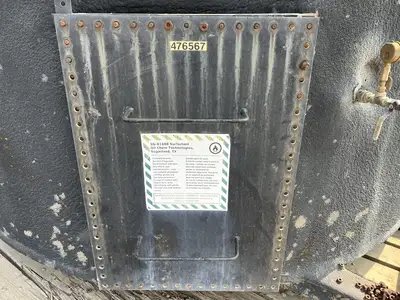

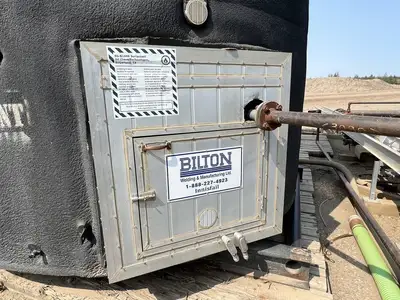

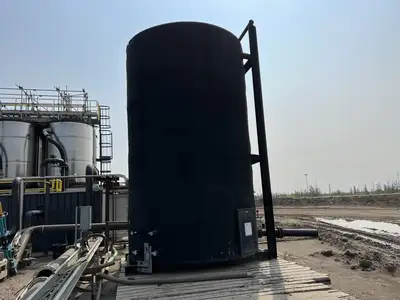

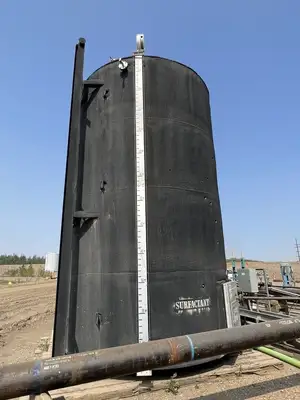

1 - Bilton insulated tank, large
1 - Bilton insulated tank, small

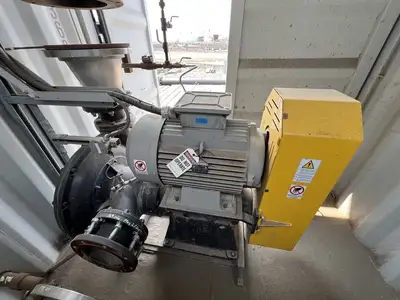

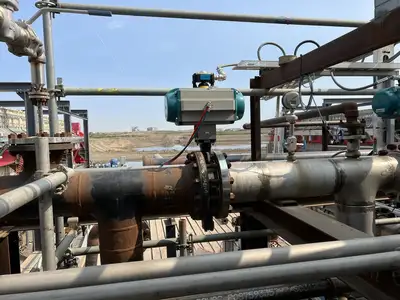

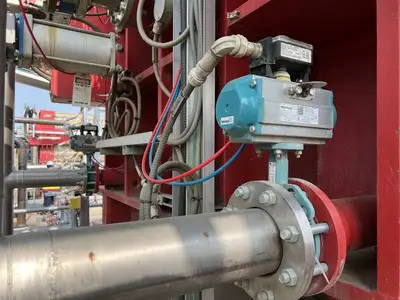

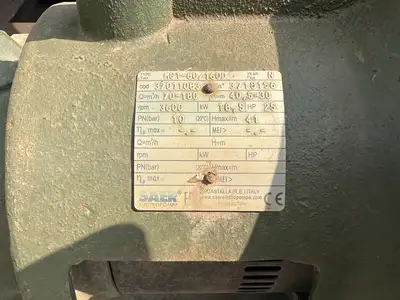

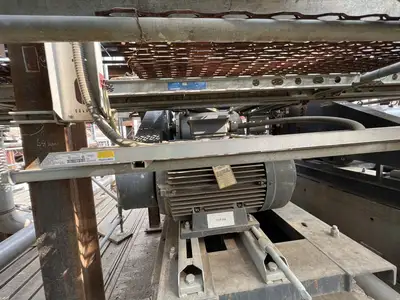

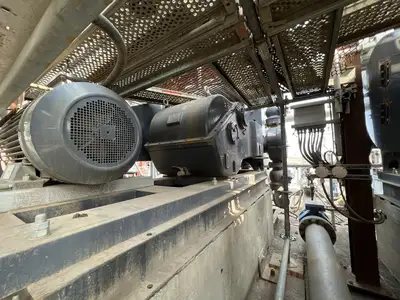

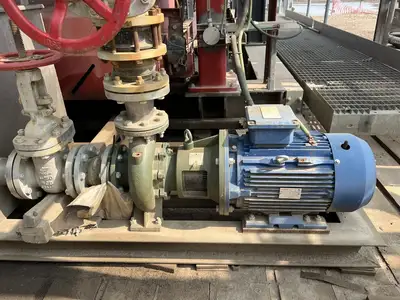

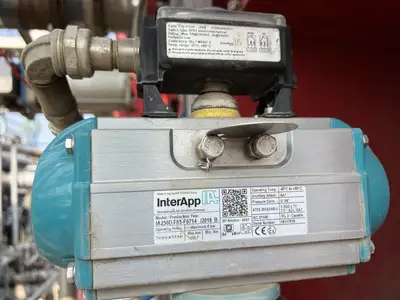

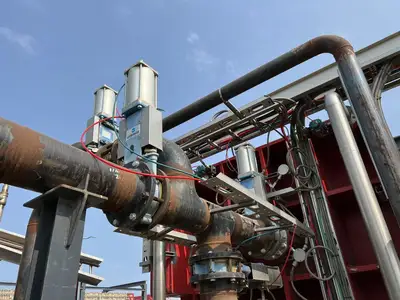

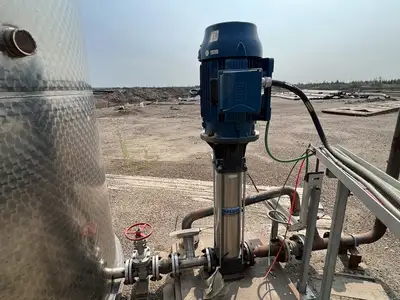

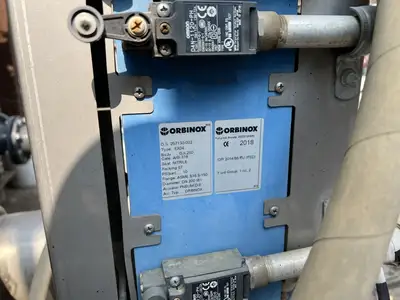

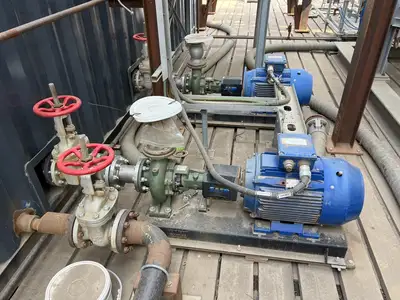

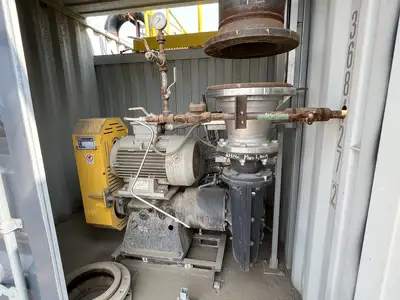

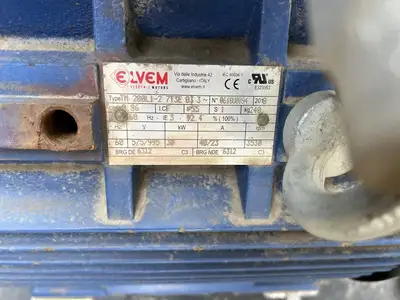

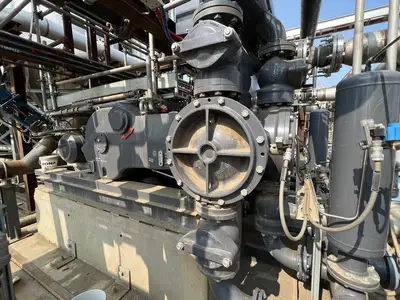

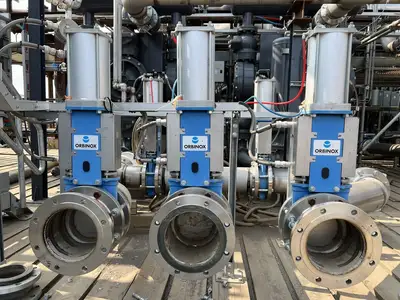

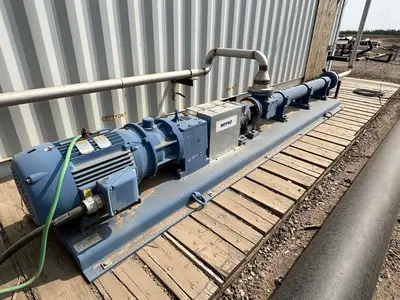

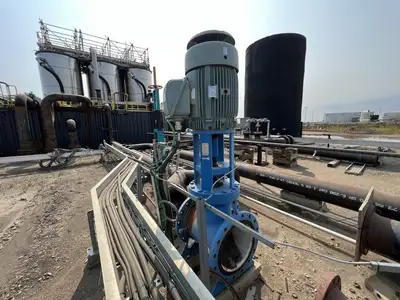

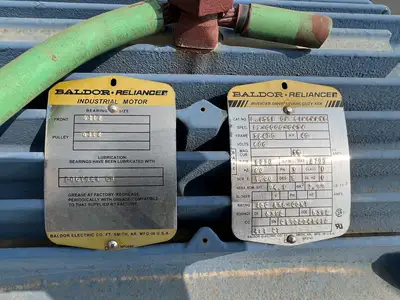

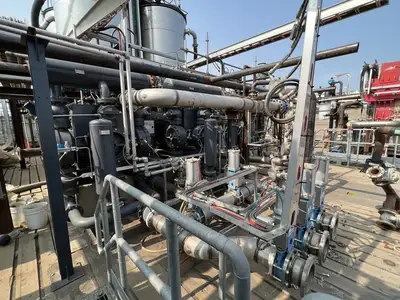

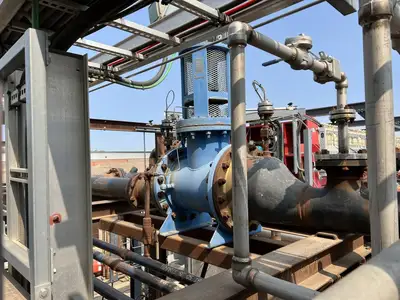

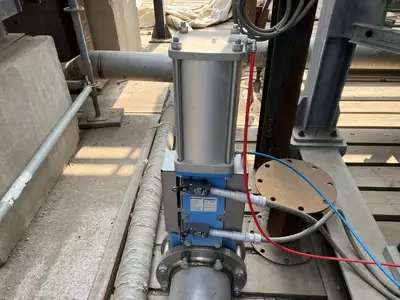

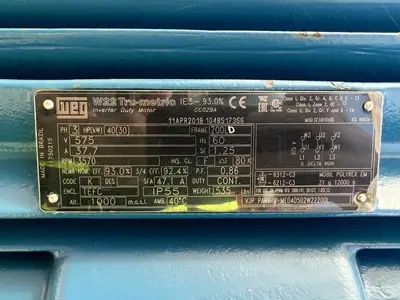

Pumps & actuators

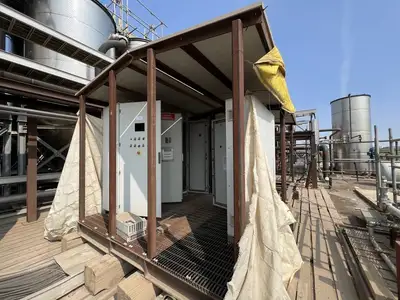

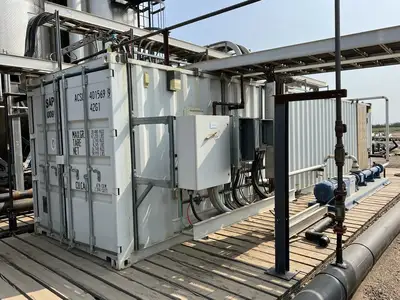

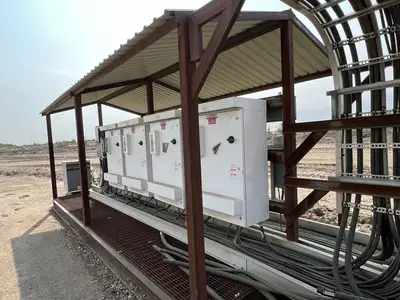

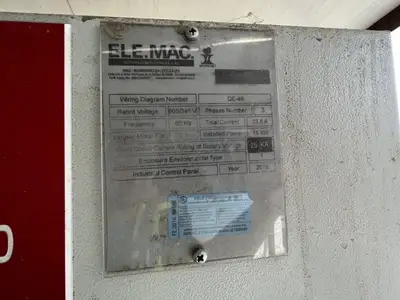

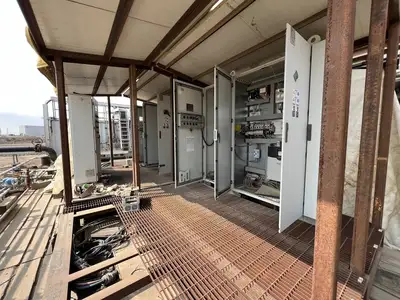

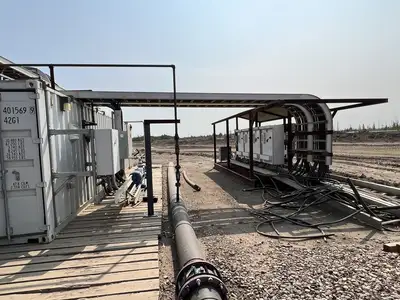

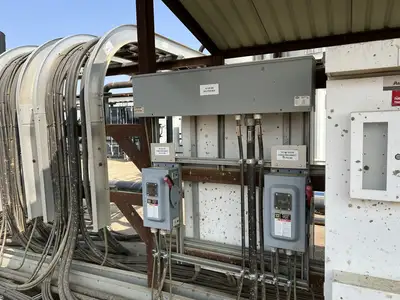

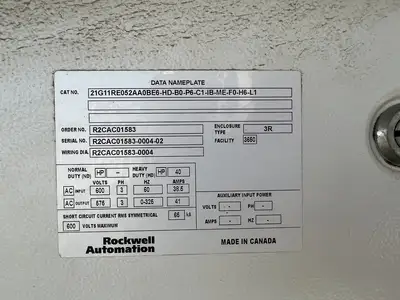

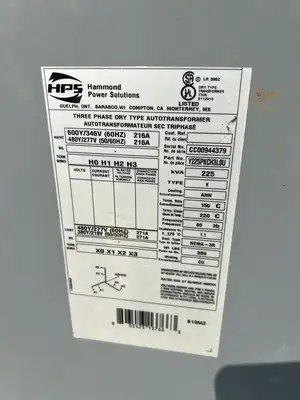

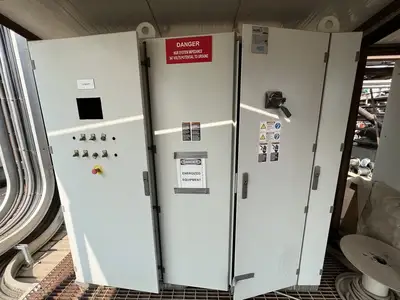

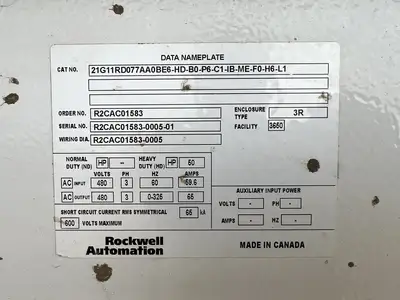

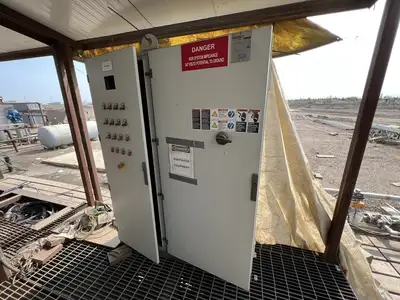

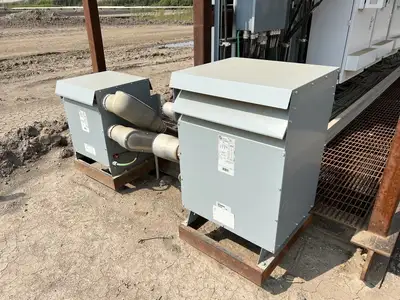

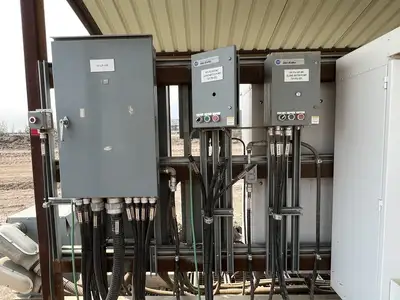

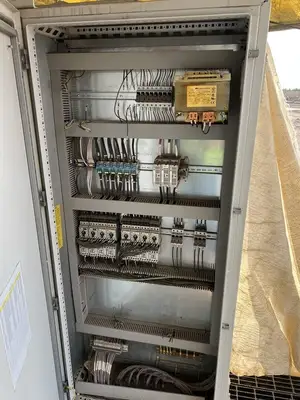

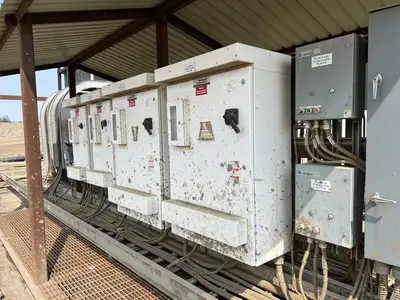

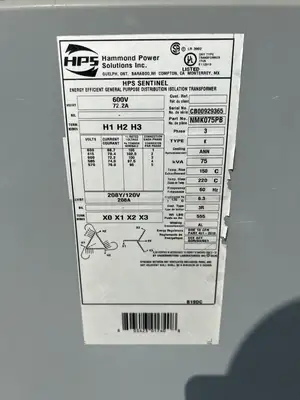

All electrical / transformers
