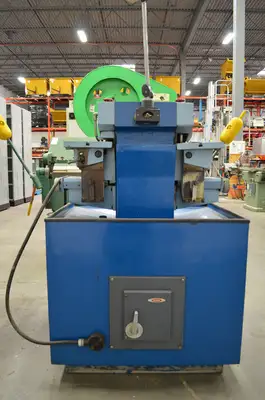

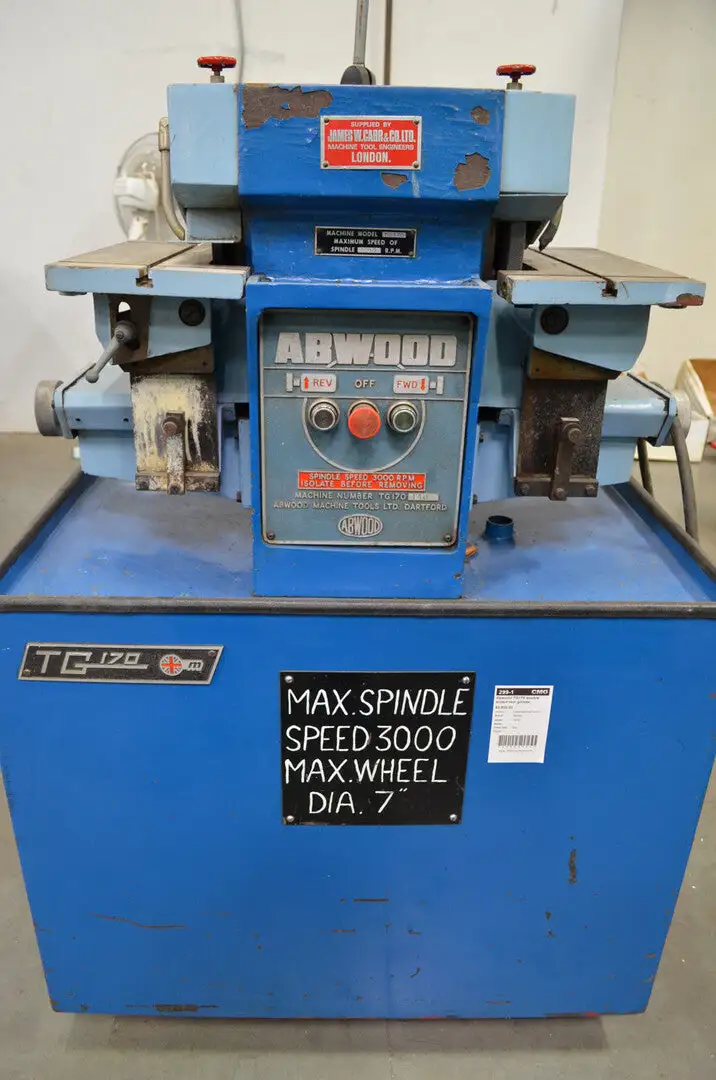

USED ABWOOD TG170

Type: Wheel
Voltage: 110 volts
Wheel Size (Abrasive & Diamond Face): 170 mm (7") dia. x 25 mm (1") Face
Spindle Speed: 2950 rpm
Table Area: 2 Tables 200 mm (8") x 400 mm (16")
Angle Tilt: +/- 15 deg.
Infeed: 65 mm (2-1/2")
Reciprocation: 0-38 mm (0-1-1/2")
Main Motor: 1 hp Built in Rotor Stator Unit
Coolant Pump: Electric Submersible Centrifugal 1/20 hp; 10 litres (3 galls) per min
Coolant Tank: 15 litres (4 galls) capacity
Switch Gear: Direct on line rotary reversing unit
Standard Equipment: Quick action clamp type protractor toolholder
