USED 2013 HD ELECTRIC CC-II/100

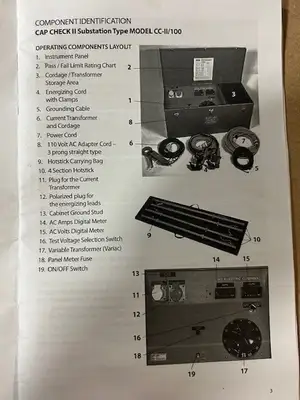

Operating & Instruction Manual - PDF
Electrical: 115 volts, 13 amps, 60 Hz
Includes:

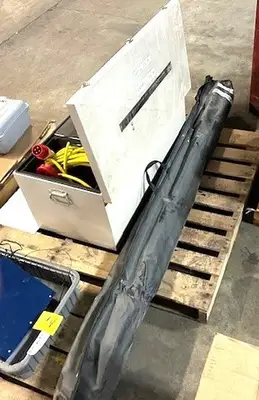

4 Section Hotstick
Hotstick Carrying Bag
Carrying Case Version (2112500004)
Features:
Designed to enable the testing of substation racks of capacitors

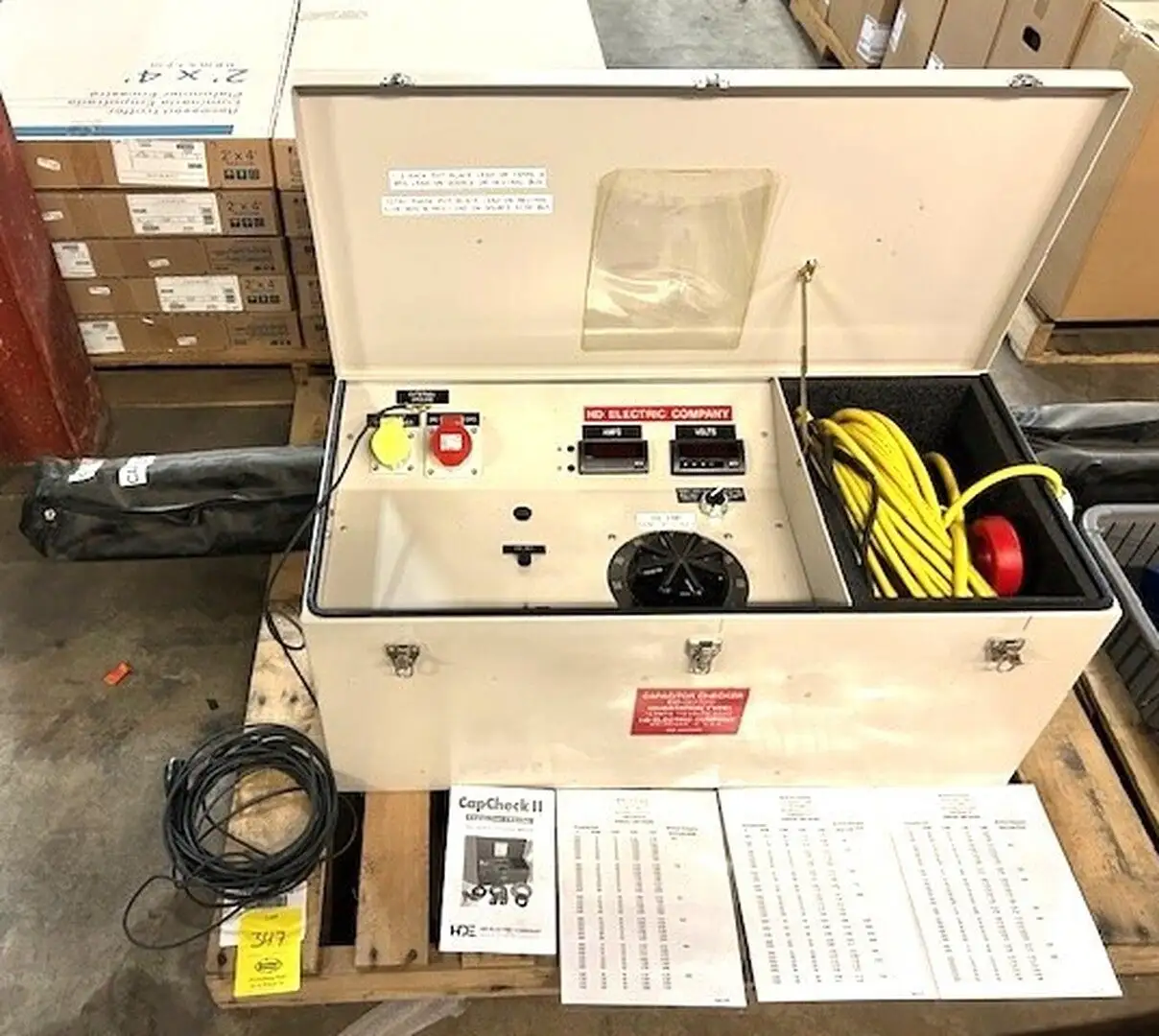

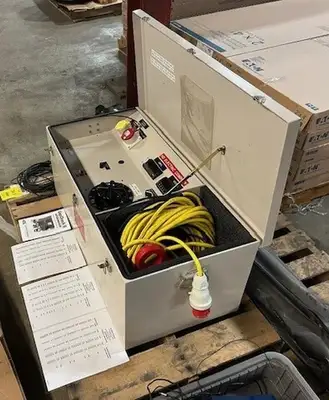

Housed in an aluminium carry case
Integrated digital voltmeter and milliammeter, variac control, and circuit breakers

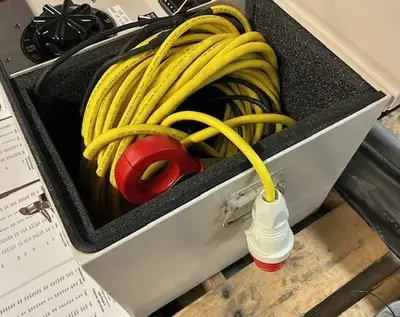

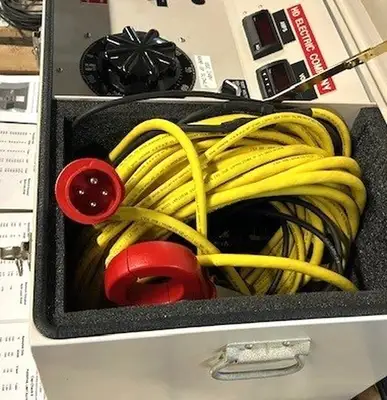

Supplied with four sets of 15m cords, a current probe, and modified hot-stick
Designed to be operated by a two-man crew
Powered by a 120V external supply
Check up to five-hundred substation capacitors per day
Individual capacitors do not have to be disconnected to be tested
Identify incipient faults, failures and ruptures
Test voltage ranges from 50V to 480V AC
50V AC must be applied to capacitors to identify incipient faults caused by shorting between individual plates
480V AC allows the user to determine the 'true' internal condition of capacitors
Can be used as a preventative maintenance tool for identifying failing or partially failing components
Faulty capacitors can be identified and changed preventing the unnecessary replacement of functional capacitors
Removal and replacement of faulty capacitors prevent forced outages
Accurately and reliably test new capacitors on receipt from the factory, preventing the installation of faulty units
Eliminate and/or significantly reduce clean-up costs and downtime
Identify and prevent dangerous situations
Provides excellent accuracy and repeatability
Suitable for use in the field and in laboratories
Test individual capacitors as well as banks of capacitors
Ideal for maintaining pole-mounted and substation capacitors
