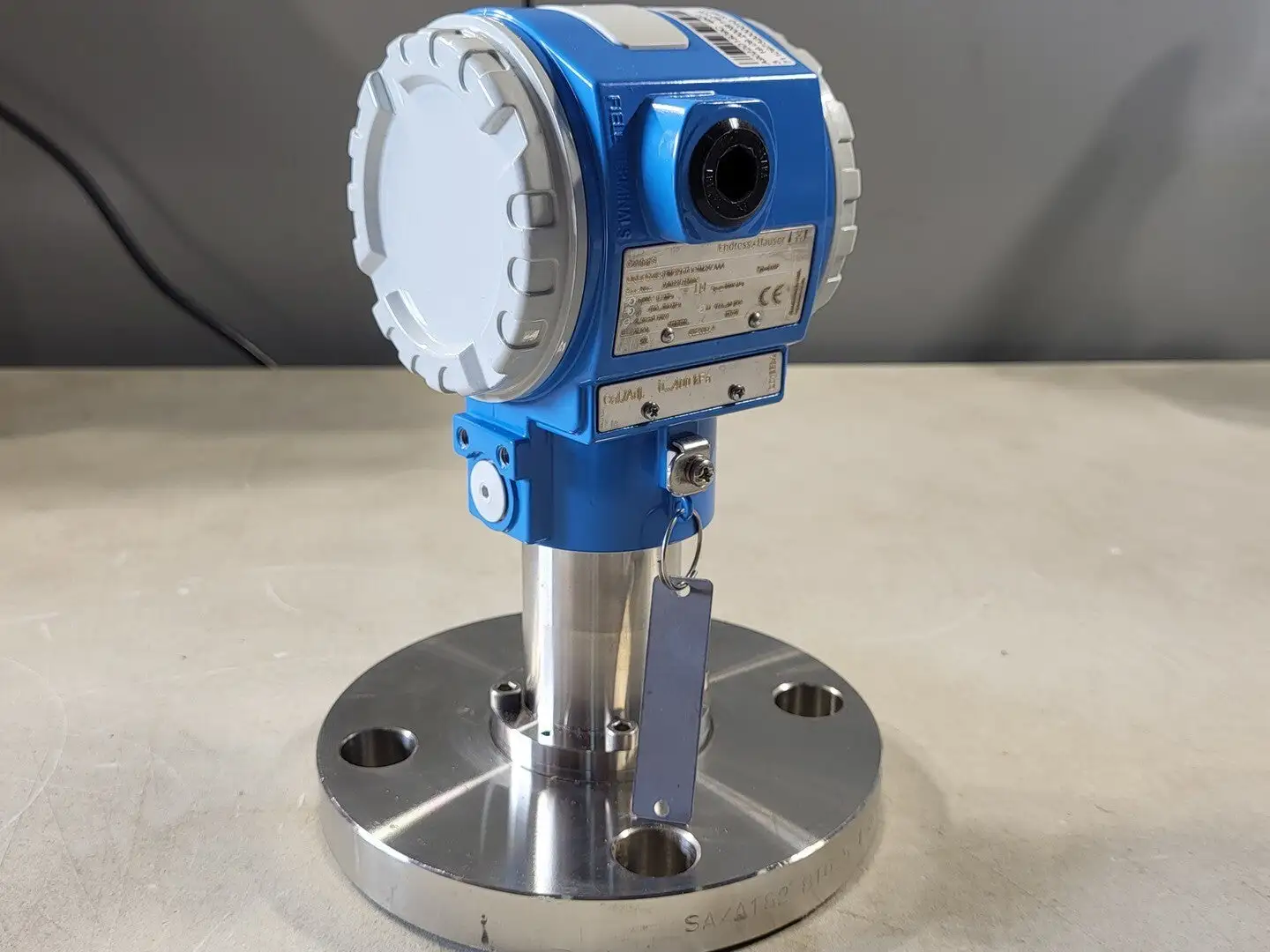

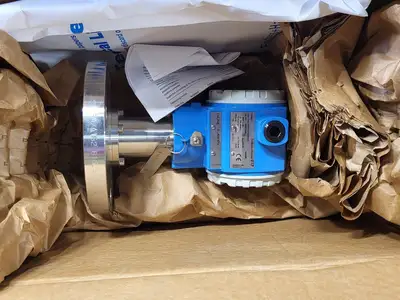

NEW ENDRESS+HAUSER PMC71-UCC1M2AFAAA

Measuring Principle: Absolute and gauge pressure
Characteristic: Digital transmitter with capacitive sensor and ceramic membrane, modular transmitter, long term stability, enhanced safety via self diagnostic functions, secondary process barrier
Supply Voltage: 4-20 mA HART, 10.5-45 VDC (Non Ex): Ex ia: 10.5-30 VDC, PROFIBUS PA: 9-32 VDC (Non Ex), FOUNDATION Fieldbus: 9-32 VDC (Non Ex)
Reference Accuracy: Standard: 0.05%, Platinum: up to 0.025%
Long Term Stability: 0.05% of URL/year, 0.08% of URL/5 year, 0.1% of URL/10 year
Process Temperature: -20 deg. C to 150 deg. C (-4 deg. F to 257 deg. F)
Ambient Temperature: -40 deg. C to 85 deg. C (-40 deg. F to 185 deg. F)
Measuring Cell: 100 mbar-40 bar (1.5 psi to 600 psi) relative/absolute
Smart Calibratable Span: 5 mbar (0.075 psi)
Vacuum Resistance: 0 mbar abs.
Maximum Turn Down: 100:1
Maximum Overpressure Limit: 60 bar (900 psi)
Process Connection: Thread: G1/2-G2, R1/2, MNPT 1/2-MNPT2; Flange: DN25-DN80, ASME 1"-4", JIS 10K
Process Connection Hygienic: Tri-Clamp DIN11851 Varivent N SMS DRD
Material Process Membrane: Ceramic
Material Gasket: Viton, EPDM, Chemraz, Kalrez, NBR
Fill Fluid: none, dry measuring cell
Material Housing: Die-cast aluminum AISI 316L
Communication: 4-20 mA HART PROFIBUS PA FOUNDATION Fieldbus
