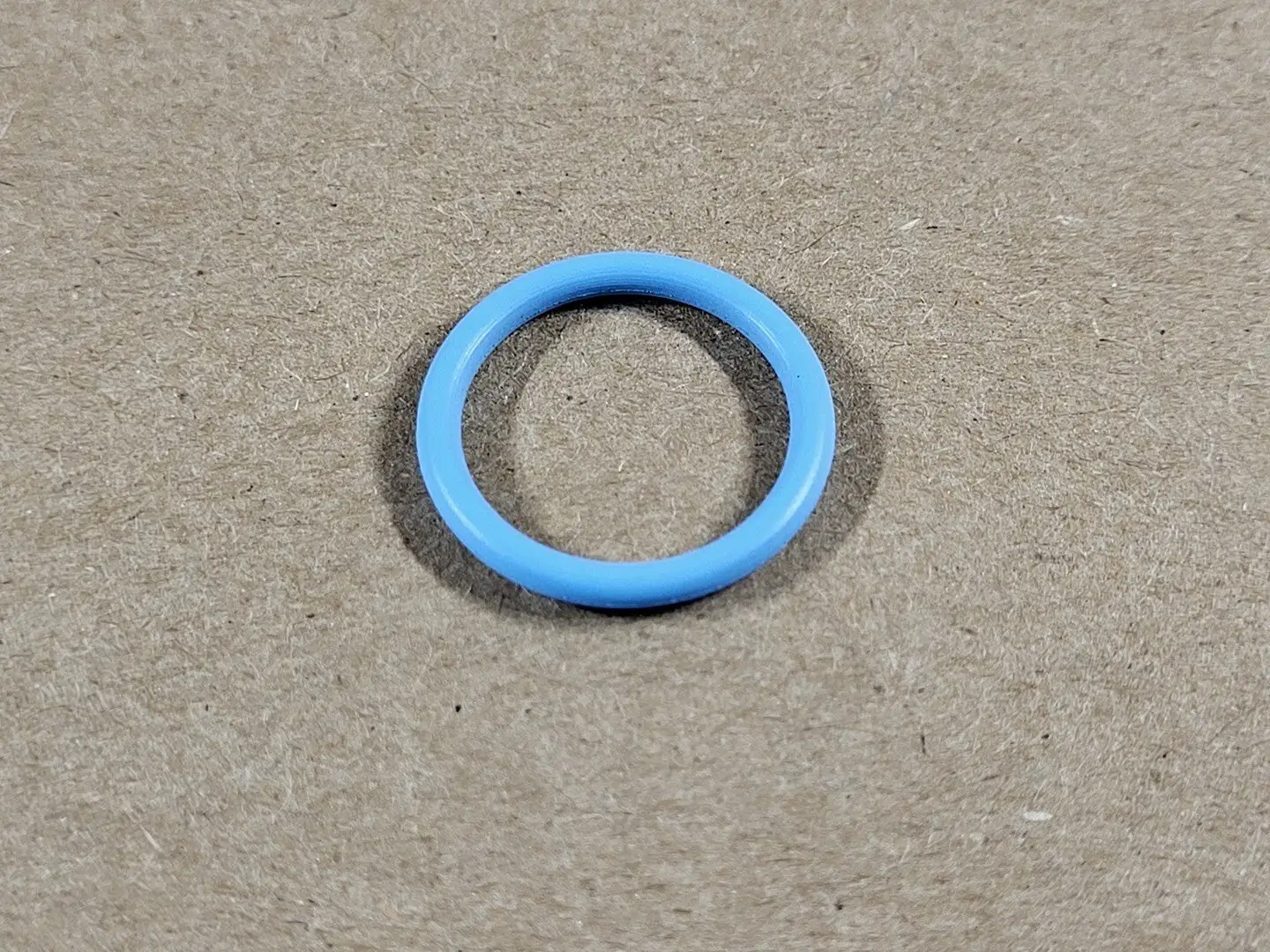

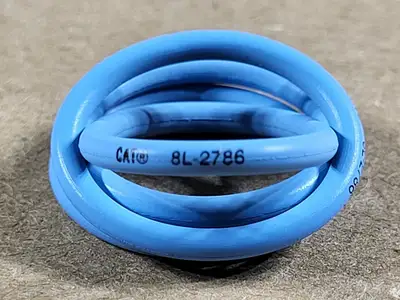

USED CATERPILLAR 8L-2786

SAE AS568 line size: -908
Cross-sectional diameter (in): 0.087
Outside Diameter (in): 0.818
Inner Diameter (in): 0.644
Hardness (Shore A): 75
Color: Light blue
Material: FKM - Fluoroelastomer, FKM (75),FKM
Material description: FKM rubber can be used at operating temperatures from -40 to 150 °C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber must not be used in applications requiring resistance to water or coolant.
Coating: PTFE coating protects the O-ring from installation damage and ensures easy installation.
Color Notes: Actual O-ring color may vary from image.
Notes: Dimensions and material descriptions for reference only.
Primary sealing material: Rubber
Compatible with: Diester lubricating oils; halogenated hydrocarbons (above 100 gr. C); very resistant to compression set; petroleum fluids; phosphate ester based fluids; silicone fluids; some acids
Temperature (°F): -40 - 350
Seal/O-ring Type: Standard
Not compatible with: Amines; brake fluids; engine coolant; flame retardant fluids; ketones; steam; water
Applications: High temperature applications requiring resistance to air, fuels, lubricating oils and hydraulic fluids
