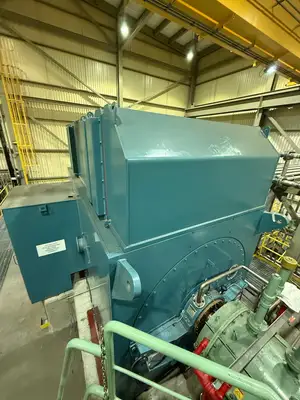

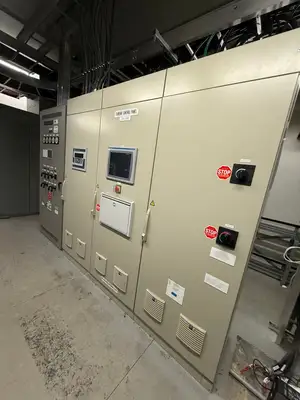

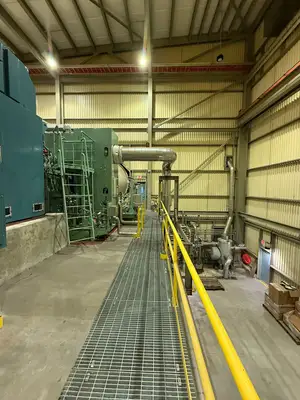

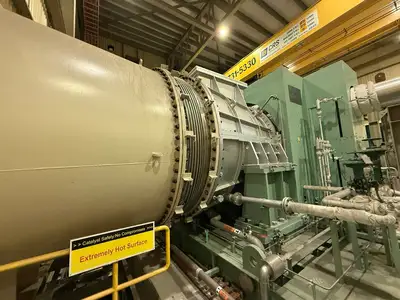

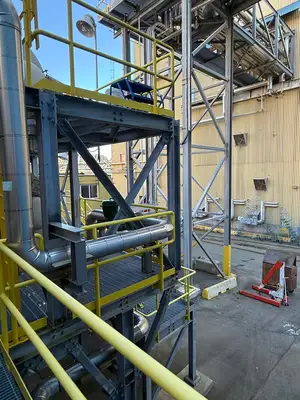

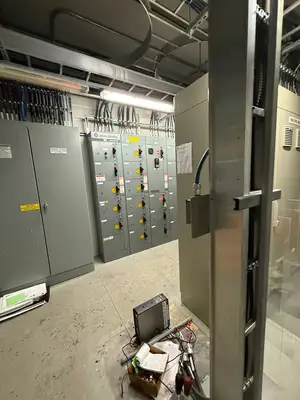

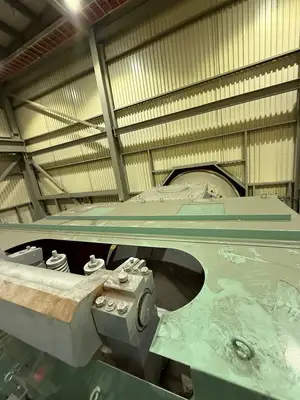

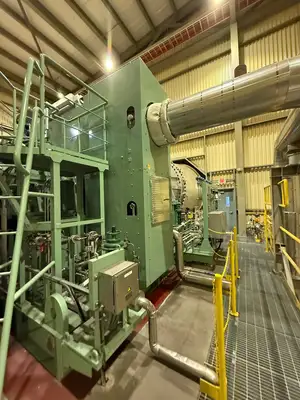

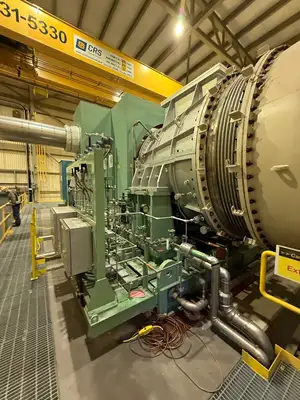

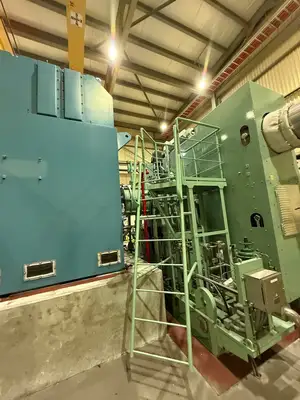

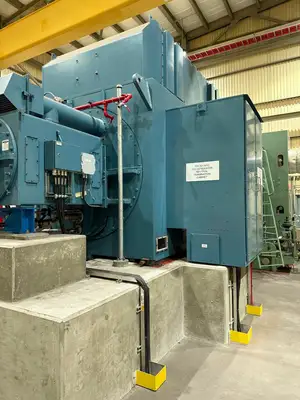

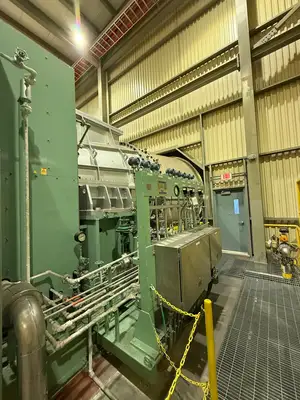

USED 2015 SNM TURBINE/ ABB ALTERNATOR C10-R6-X

Horsepower: hp
Mount: Stationary
Rating: Continuous
kVA: 11250 kVA
Voltage: 13800 volts
Phase: 3-phase
Package Brochure
G13 Generator - 3.2.5 Steam Turbine Specs with perf curve.pdf
G13 Generator - ABB-Alstom PWR -ASEA-ABB GTL-1050-EA Technical Data- 3 page.pdf
G13 Generator - ABB-ASEA Generator -4 G13 Outline drawings GTL-1050-EA.pdf
G13 Generator - ABB-ASEA Generator Wiring Diagram - Doc No. 4270-221-9 7 shts for GTL-1050.pdf
Steam Turbine:

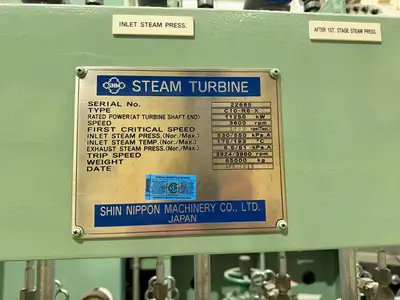

Make: Shin Nippon Machinery
Type: C10-R6-X
Inlet steam pressure (Nor./Max.): 530 / 550 kPa.A
Inlet steam temperature (Nor./Max.): 175 / 193 °C
Exhaust steam pressure (Nor./Max.): 6.5 / 51 kPa.A
Speed: 3600 rpm
First critical speed: 2200 rpm (Test.)
Trip speed: 3924 / 3960 rpm
Generator:
Power: 31930 kVA x 0.85
Speed: 3600 r/min
Excitation voltage: 80 Volts
Temperature Class: B (Stator/Rotor)
Insulation Class: F (Stator/Rotor)
Standard: ANSI C50.13-1977

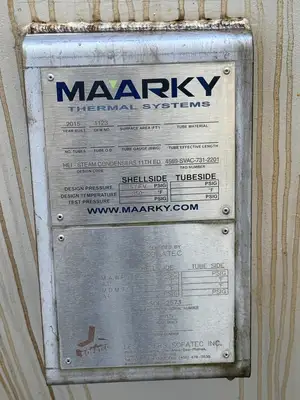

Condensing Unit:
Make: MAARKY Thermal Systems
Year built: 2015
Design code: HEI-STEAM CONDENSERS 11TH ED.
Shell side design pressure: 15 PSIG / F.V.
Shell side design temperature: 350 °F

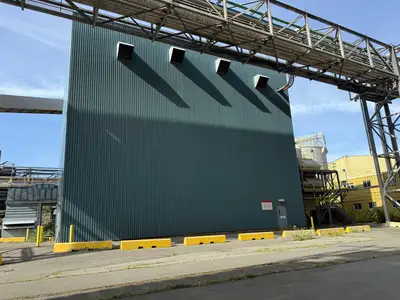

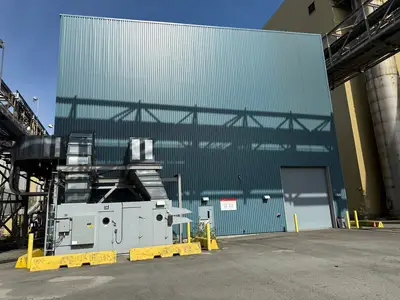

**Optional: Building available for separate purchase
Structural Steel/Building Plan Drawings
