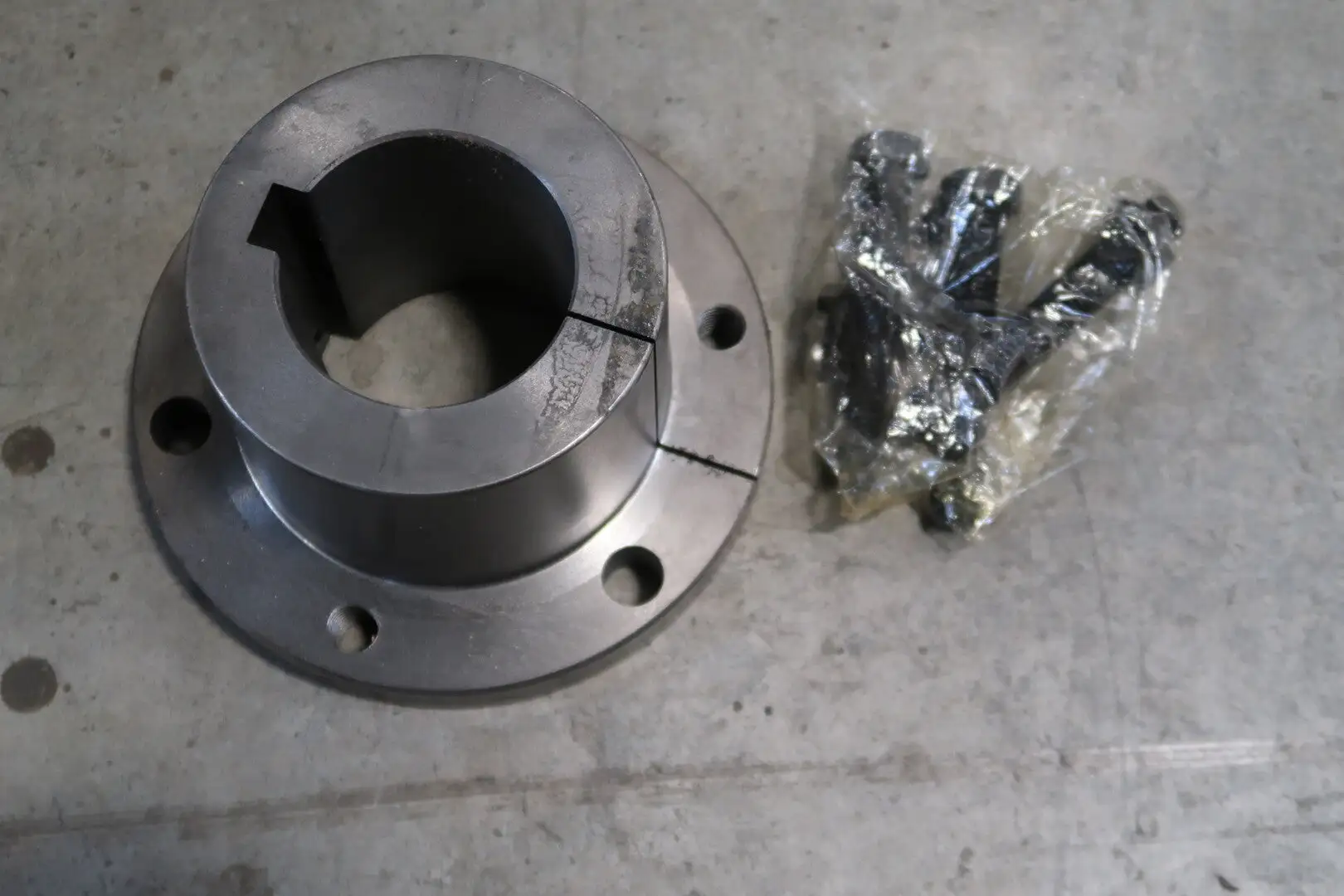

NEW BALDOR FX2-5/8

Type: QD Bushing
Bore Diameter: 2-5/8 "
Bushing Size: F
Bore Type: Finished w/ keyway
Keyway Size: 5/8 x 5/16 in.
Bore Diameter: 2.6250 in.
Flange Outside Diameter: 6.6250 in.
Flange Thickness: 0.8125 in.
Length Through Bore: 3.6250 in.
Material: Steel
Torque Capacity: 3000 in.
Screw Torque: 900 in.
Maximum Hub Outside Diameter: 7-1/4 (Steel) in., 7-3/4 (Class 30 Iron) in.
Barrel Diameter: 4.43 in.
Barrel Length: 2.82 in.
Bolt Circle Diameter: 5.63 in
Number of Bolt Holes: 3
Screw Thread Size: 9/16-12 in.
Screw Length: 3-5/8 in.
Mounting Type: Conventional or Reverse
