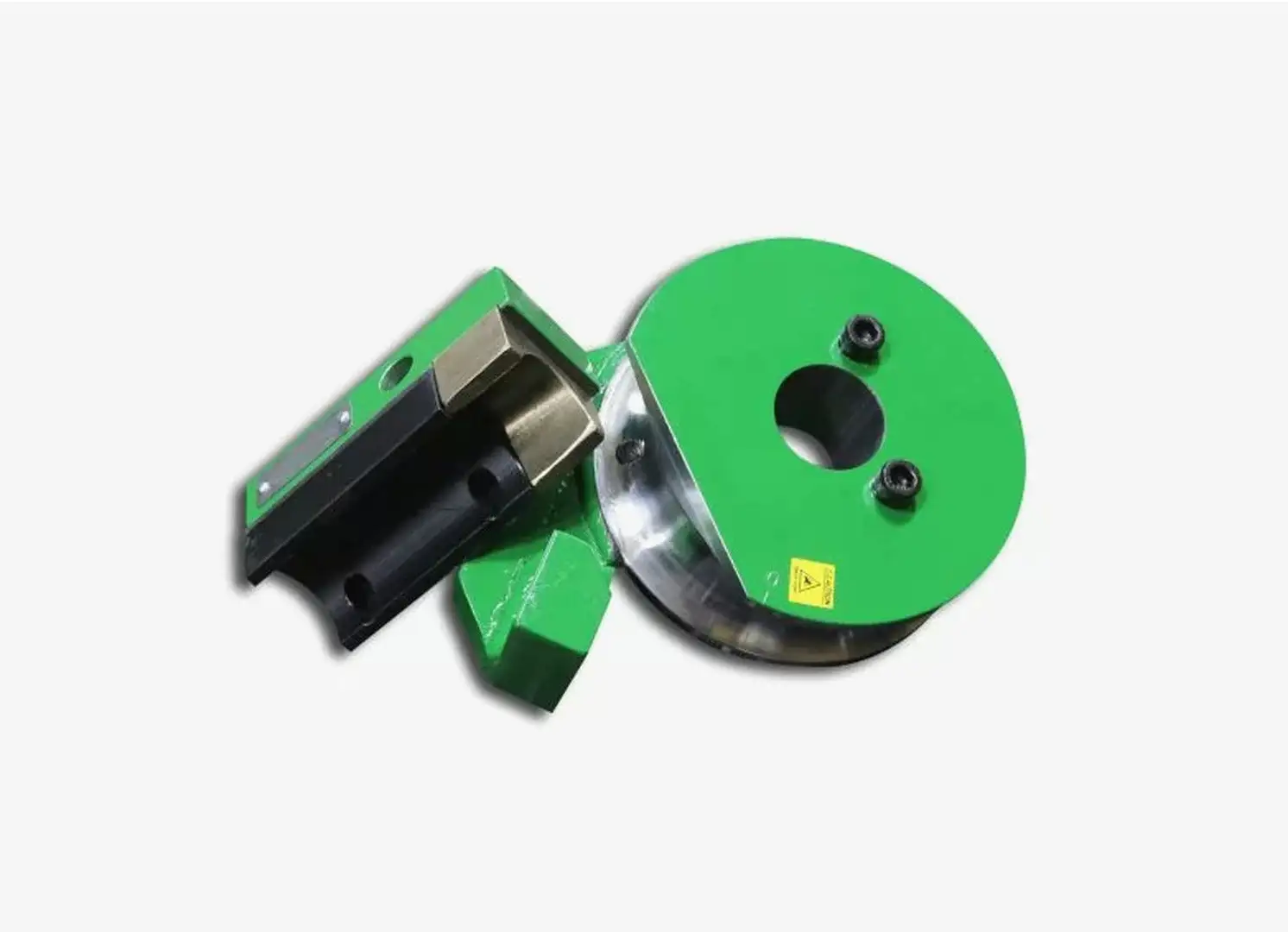

NEW BAILEIGH INDUSTRIAL DS-1000P-R300

Stock Number: DS-1000P-R300
Center Line Radius: 3"
Max. Bend: 180.000 deg
Wall Thickness: 0.133
Gross Weight: 22 lb
Material Dimensions: 1.31"
Feature:
1018 billet steel forming die
Replaceable / Consumable counter die inserts for counter die block
Welded / Bolted open side hook arm, for easy tube insertion and removal
Nonproprietary spindle bore
Optional Roller assemblies for special applications
Optional hardened 4140 billet dies for production heavy wall bending and production stainless bending
