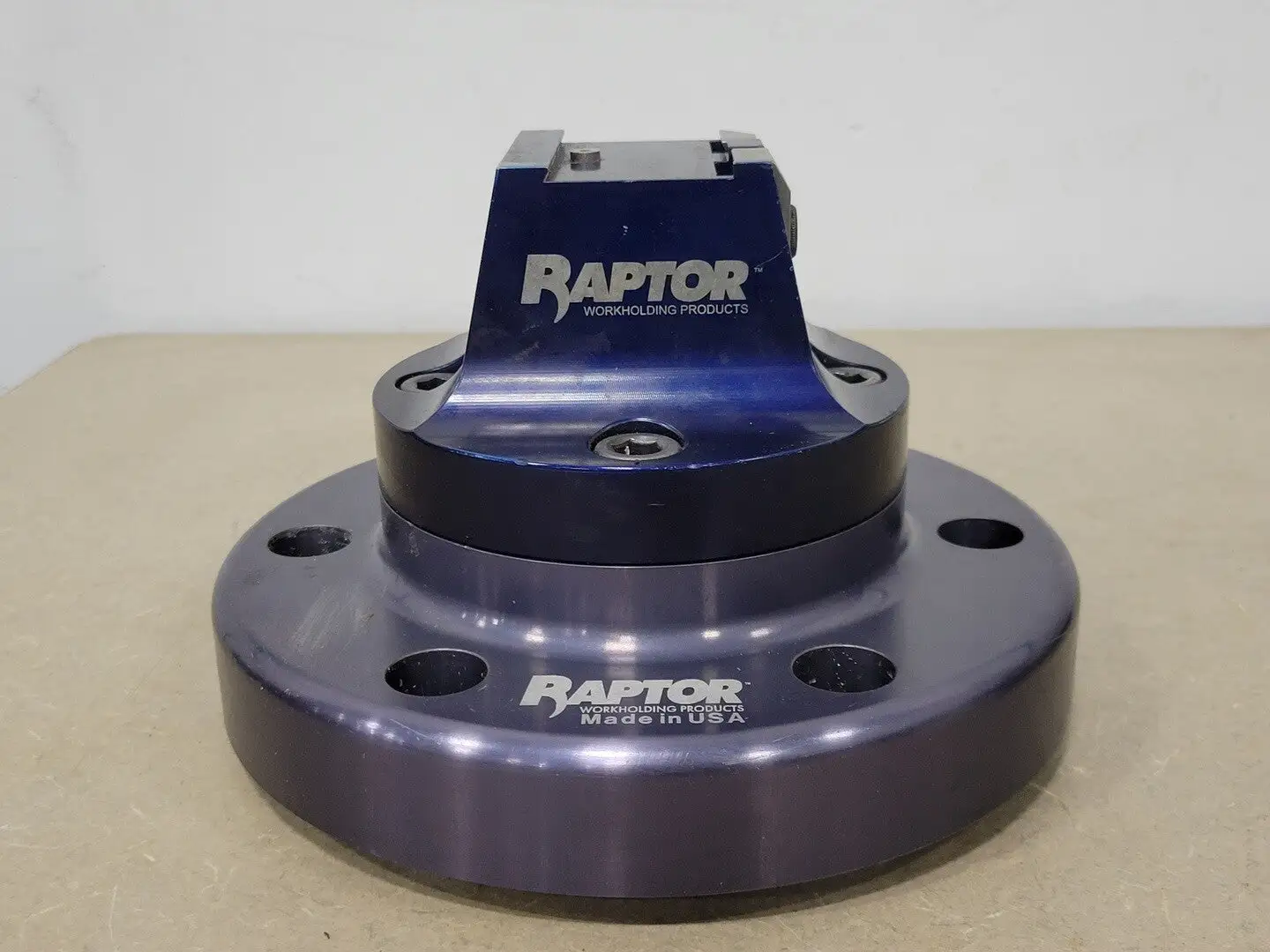

USED RAPTOR WORKHOLDING PRODUCTS RWP-202

RWP-202 Adapter
Material: Aircraft grade aluminum
Height: 2.00"
Diameter: 8.20"
Bolt circle diameter: 6.50" for (6) 1/2" SHCS
Boss/hole: 2.00" dia. x 0.375" boss
Mounts: All fixtures with a Raptor interface
Weight: 9 lbs
RWP-001 Dovetail Fixture (7075 Aluminum)
Workpiece size min: 2.35" L x 2.35" W x 0.50" H
Workpiece size max: 6.75" cube
Dovetail width: 1.5"
Dovetail height: 0.125"
Fixture diameter: 4.97"
Fixture height: 3.0"
Bolt circle diameter: 3.80" (Raptor interface)
