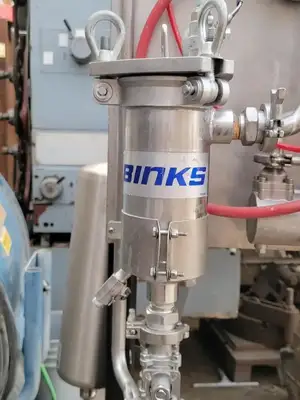

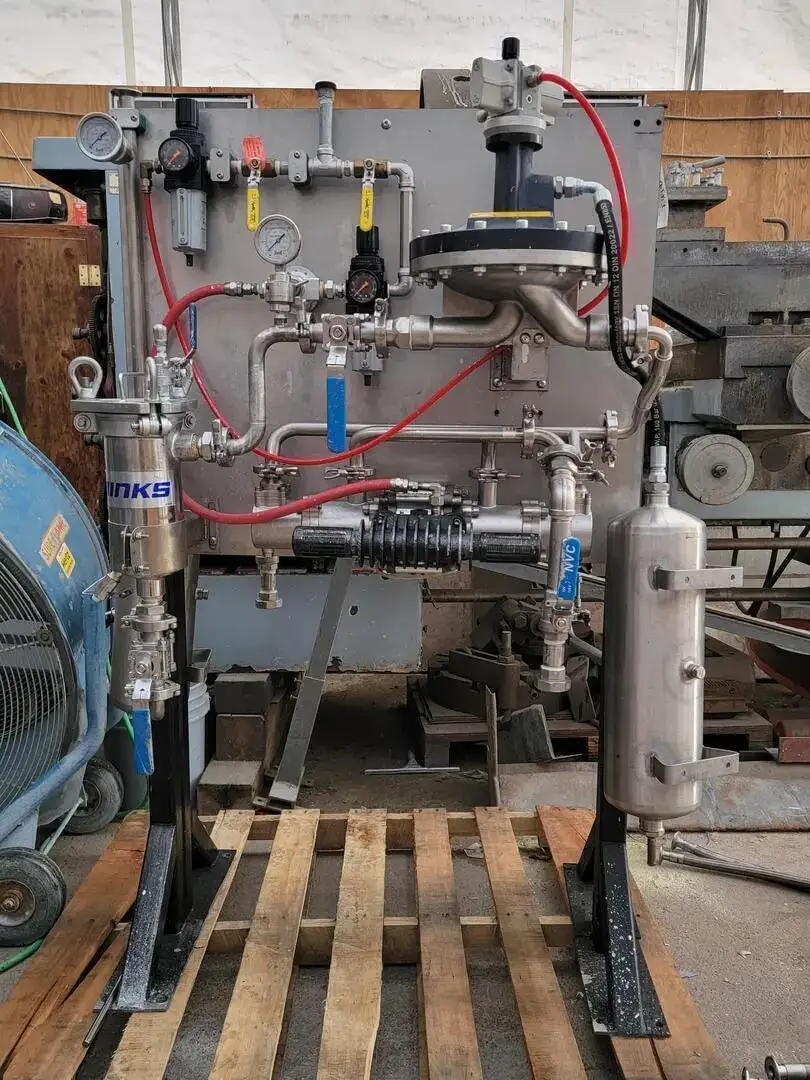

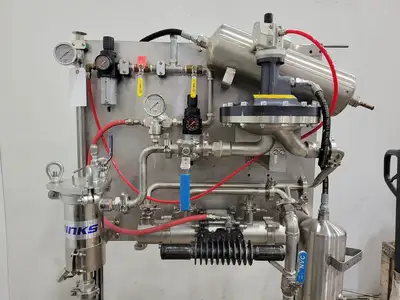

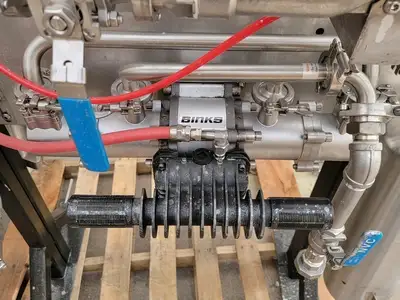

USED BINKS 104009

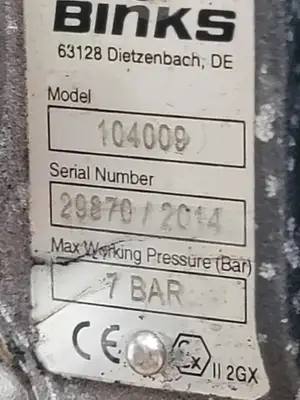

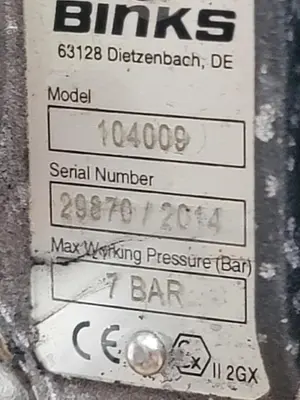

Part Number: 104009
Ratio: 3:1
Fluid Output @ 60 cycles/min: 22.5 L/min
Max. Continuous Cycle Rate: 20 cycles/min
Max. Intermittent Cycle: 40 cycles/min
Fluid Connection Inlet / Outlet: 1" Sanitary / 1" Sanitary
Max Air Inlet Pressure: 7 bar (102 psi)
Compressed Air Inlet: 3/8" BSPP/NPSM
Air Volume / Cycle @ 3.1 bar (45 psi): 4.8 L/min
Air Volume / Cycle @ 6.2 bar (90 psi): 9.3 L/min

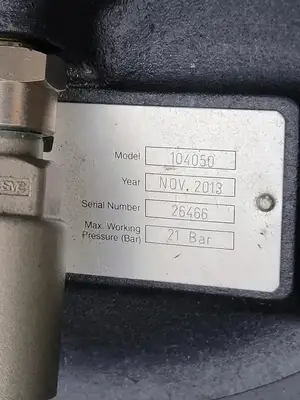

Model: 104050

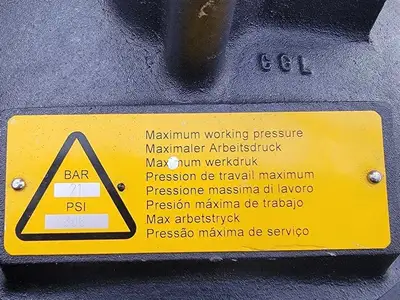

Max. Working Pressure: 21 bar (308 psi)

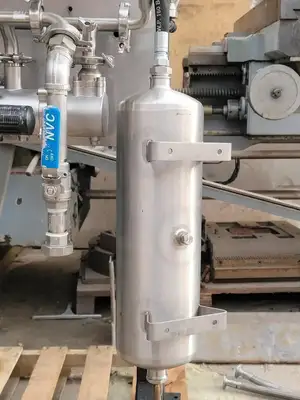

Tank Part Number: 105446
Tank Max. Pressure: 16 Bar
Tank Volume: 10 L
Tank Max/Min Temp.: 100oC / -10oC
