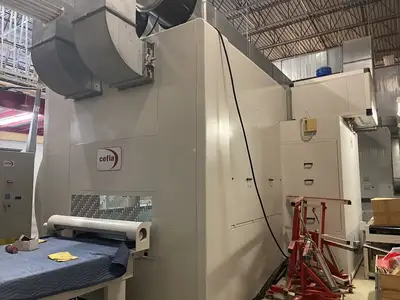

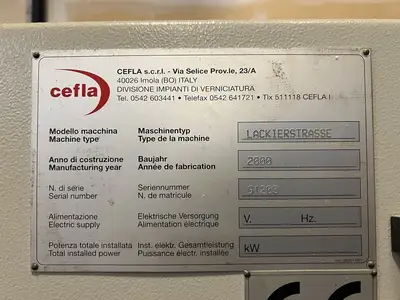

USED 2000 CEFLA SPRAYBOTIC/MD SPRAYING ROBOT

VIDEO LINK 1
VIDEO LINK 2
PDF TECHNICAL DRAWING
Features
This spray line has undergone refurbishing with replacement of all motors, feed belt, air and fluid lines. Light usage since restoration
Heavy duty frame construction
For robotic spraying, the "charge" of parts loads in, the belt stops, and the Sprayer executes to a spray pattern as programmed.
This machine also operates as a feed through reciprocating machine when that process is called for.
In-process gun maintenance is handled by a retractable brush gun cleaning device to keep the tip clean
Comes with stacking dryer

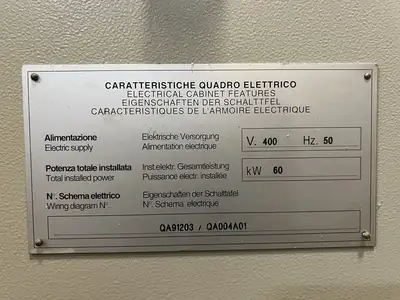

Total Electrical Power: 59.35 kW
Total Electrical Current: 140 A
Overall System Dimensions (set up as per technical drawings):
24288 mm (79.685 ft.) Long
5569 mm (18.271 ft.) High
LINE INCLUDES

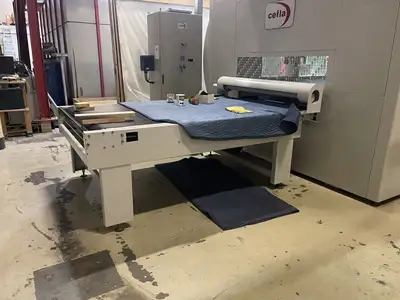

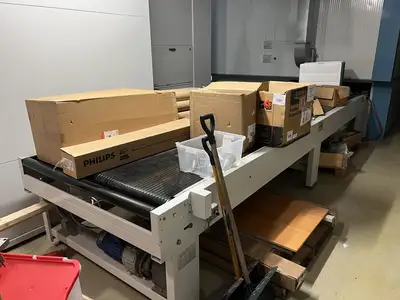

POS-1 Loading Belt Conveyor: Loading capacity of 5,500 mm

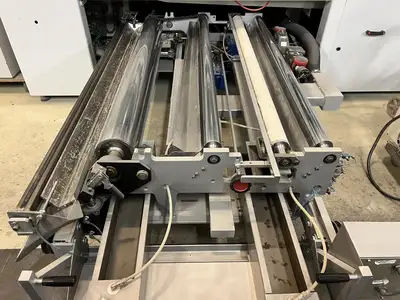

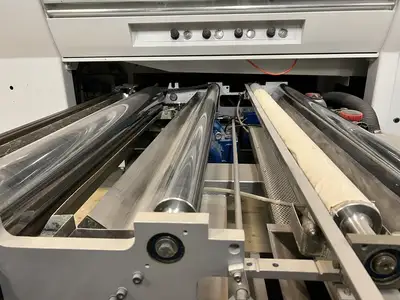

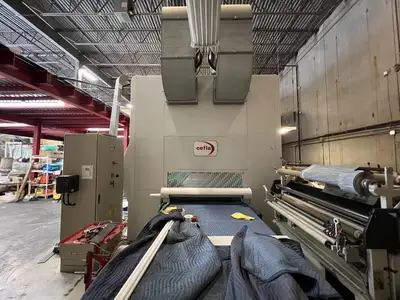

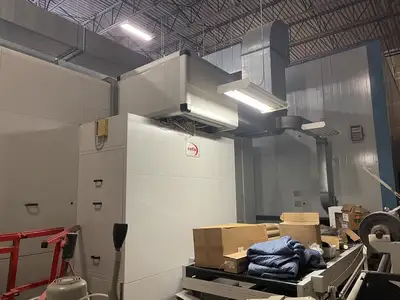

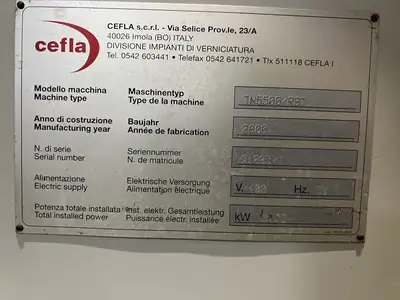

POS-2 CEFLA SPRAYBOTIC Spraying Robot: Includes continuous CFB Conveying System lacquer recovery by counterrotating rollers

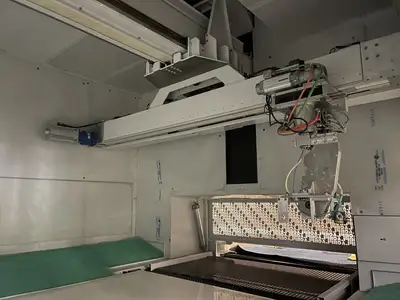

Spray Gun Arm: 5-Axis movement, electronically controlled. Parts are read by an electronic sensing system consisting of 208 photodiodes.
Sprayer Setup:

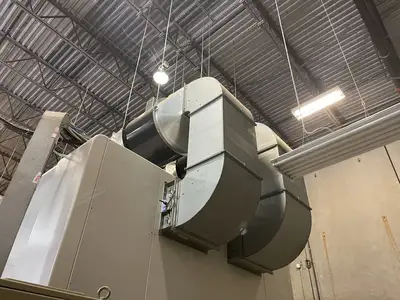

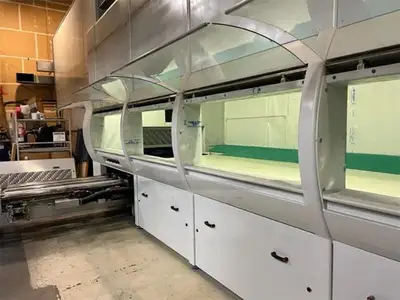

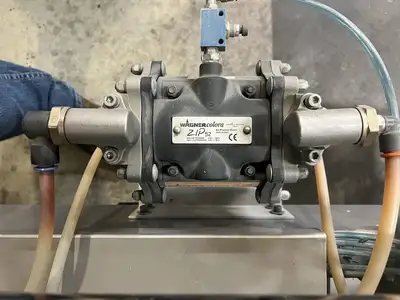

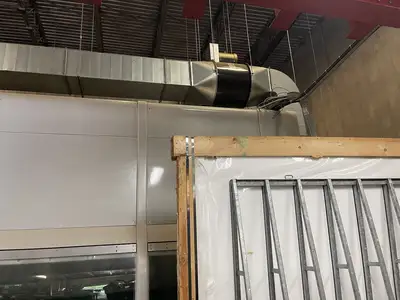

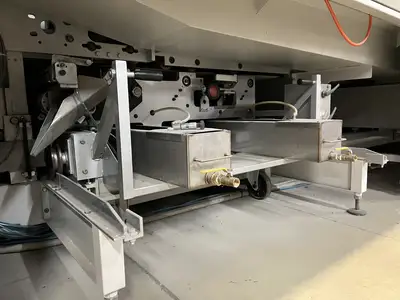

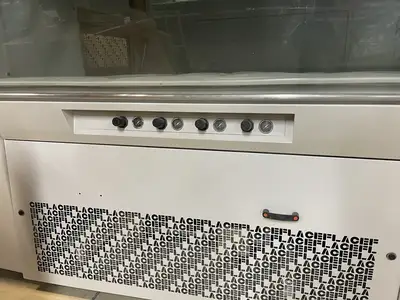

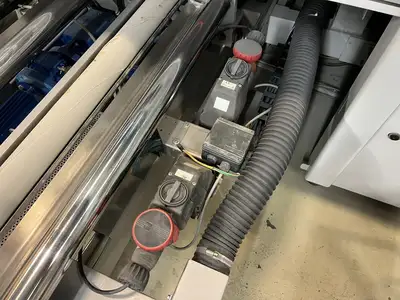

(2) Lacquer feeds, overspray collection & recovery by means of 4-roll belt cleaning trolley. The cabin is pressurized to maintain a positive pressure inside. Exhaust air is filtered through a dry filter system.

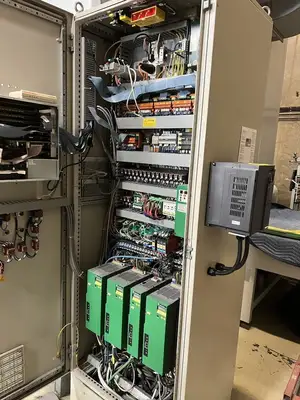

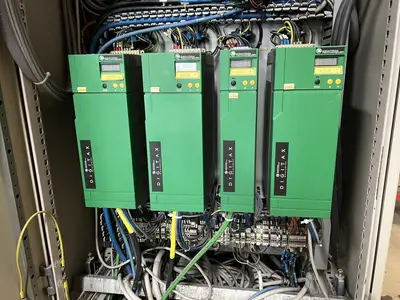

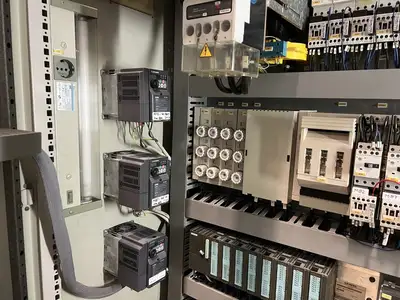

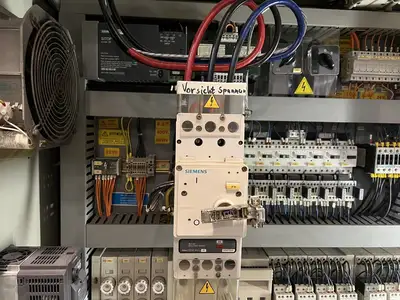

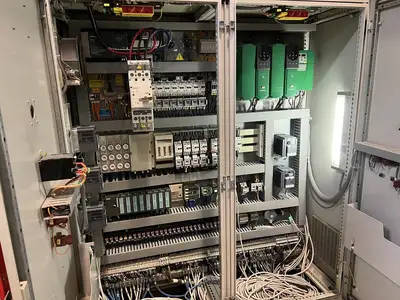

Controls Include:

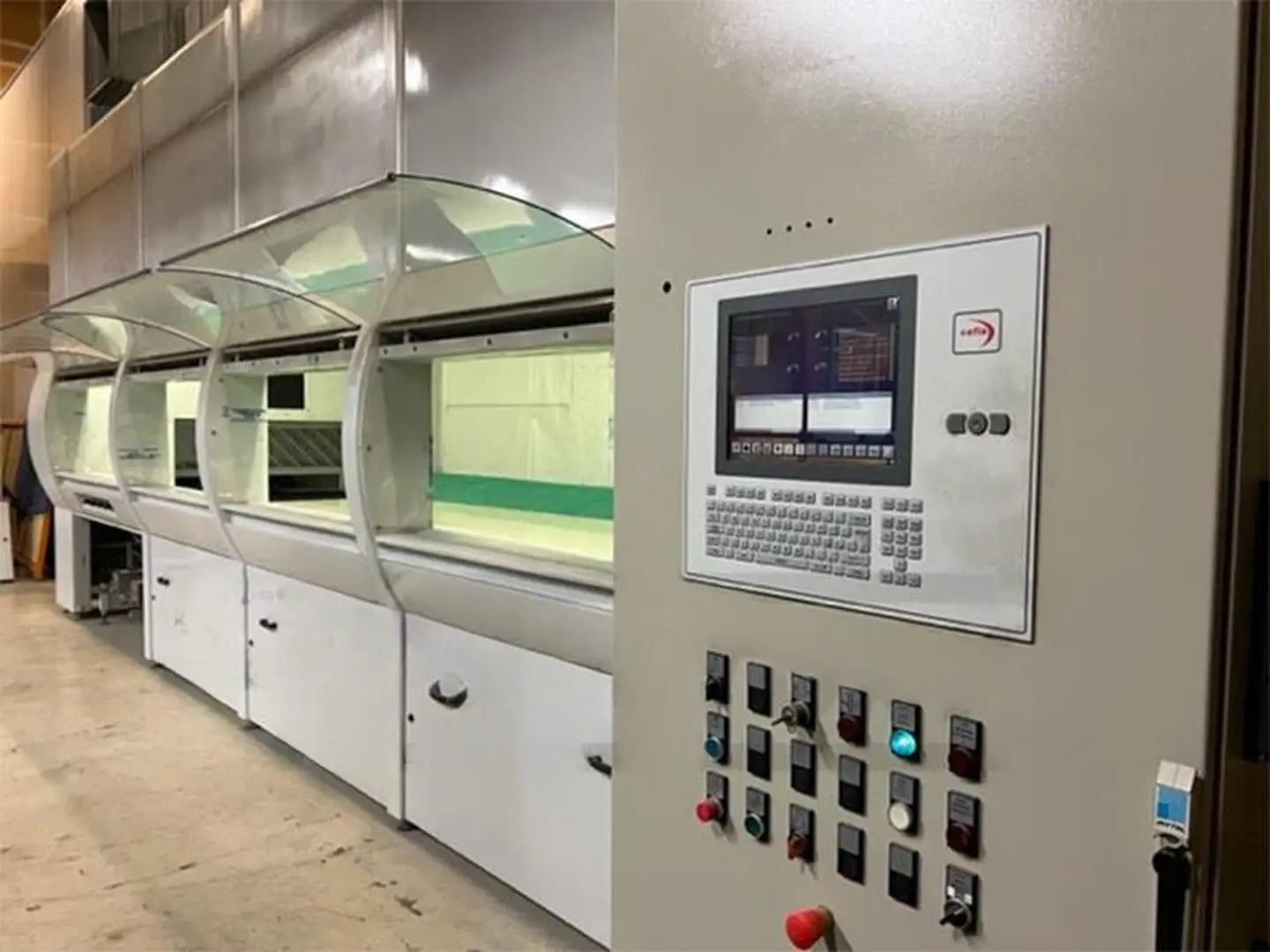

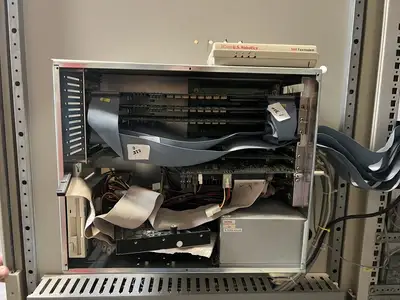

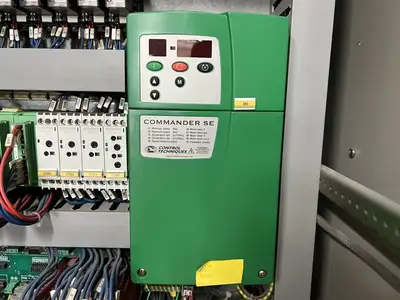

Operator interface program on PC controlling spray functions and speeds; PC Operating System Windows NT4.0
Y-Stroke: 3,500 mm
X-Stroke: 1,300 mm
Z-Stroke: 300 mm
Gun rotation: 360 deg. +/- 45 deg.
Gun inclination adjustable: +90 deg. to -30 deg.
PO-3: Belted Conveyor

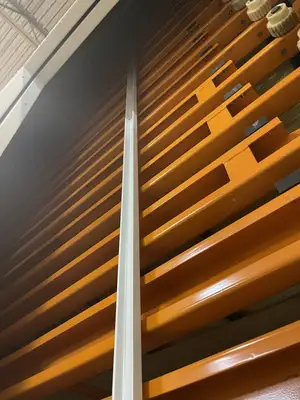

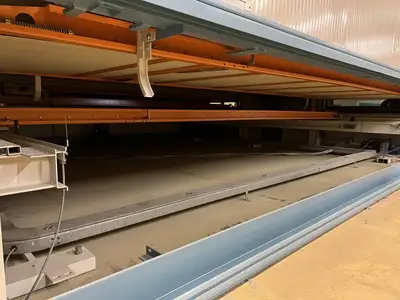

POS-4: Type "VN 3/3500/190/36" Hot Air Vertical Belt Oven with (3) chambers
Flash-Off Section: 2nd & 3rd Sections Drying areas with auto temp. control; 4th Section cooling area

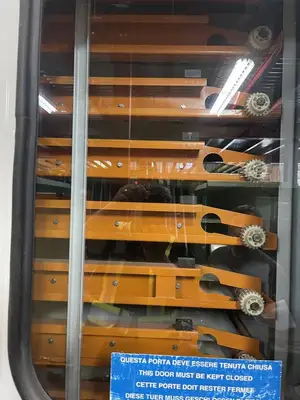

(36) Motorized belt trays with auto positioning: Installed thermal power is 144,000 kCal/hr
POS-5: 6-Belt style exit conveyors, 6 m long each for a total length of 12 m
Natural Gas Boiler System: Included for oven heating
