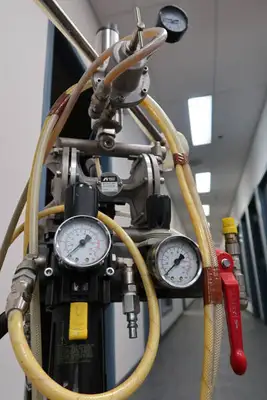

USED ANEST IWATA DPS-904N

Type: Wall Mount
Diaphragm Pump Model: DDP-90EN
Pressure Ratio: 1:1
Air Inlet: BSPP 1/4" (G 1/4")
Air Outlet (to spray gun): BSPP 1/4" (G 1/4")
Fluid Inlet: BSPP 1/2" (G 1/2")
Fluid Outlet: BSPP 3/8" (G 3/8")
Maximum Inlet Air Pressure: 98 psi (0.68 MPa, 6.8bar)
Maximum Fluid Working Pressure: 85 psi (0.59 MPa, 5.9 bar)
Maximum Fluid Output: 0.53 gal/min (2.0L/min)
Fluid Filter Set: 100 mesh
Suction Filter: 50 mesh (optional 100 mesh)
Maximum Fluid Viscosity: 300 cps (100sec/NK-2, 85 sec/Ford#4, 24 sec/Zahn#4)
Wetted Parts: Stainless Steel, PTFE, POM
Operating Ambient Temperature: 41 - 104 deg. F (5-40 deg. C)
Operating Air/Fluid Temperature: 41 - 109 deg. F (5-43 deg. C)
Noise Level: 71.7 dB (A)
Required Compressor (for pump): 1/2 - 2.0 hp
