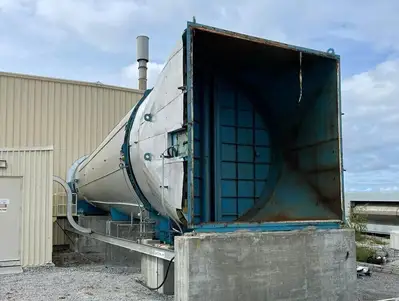

Axial Ventilation Fan & Air Tunnel w/ 1000hp Motor & Control Module
Specifications
Package includes:

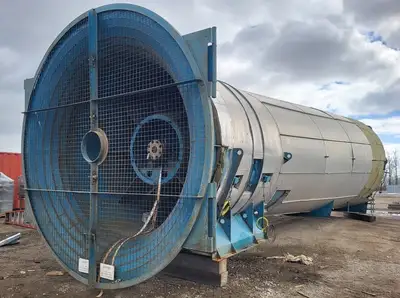

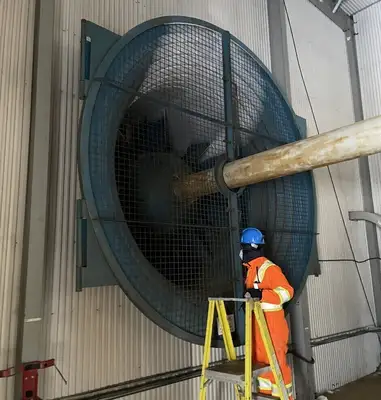

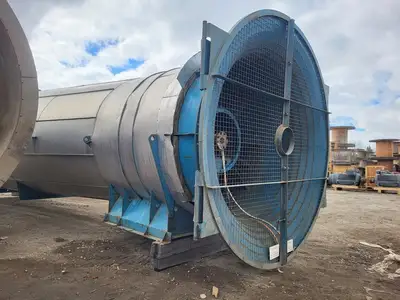

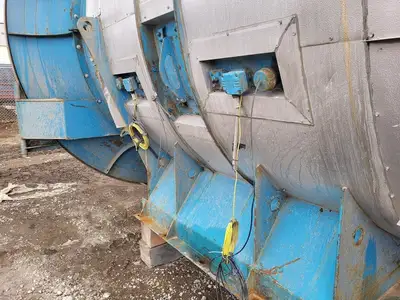

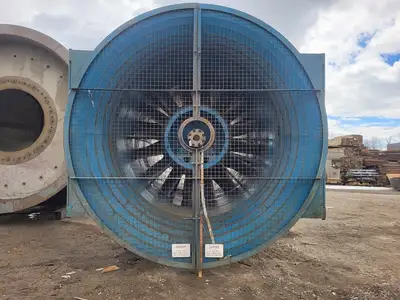

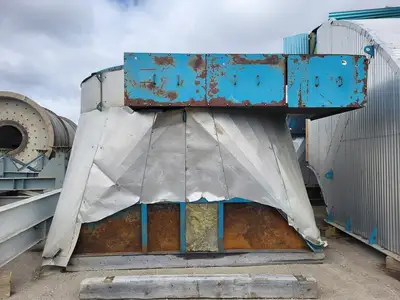

1 x ALPHAIR Axial Ventilation Fan

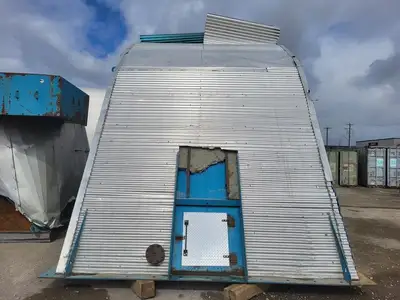

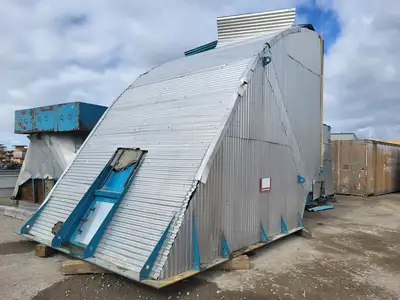

1 x ALPHAIR Axial Ventilation Air Tunnel

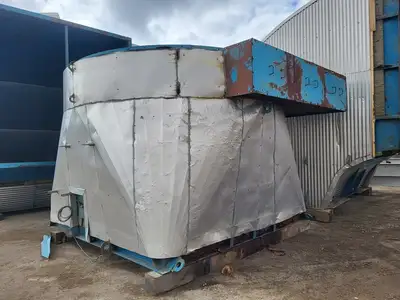

1 x ALPHAIR Axial Ventilation Elbow Connector

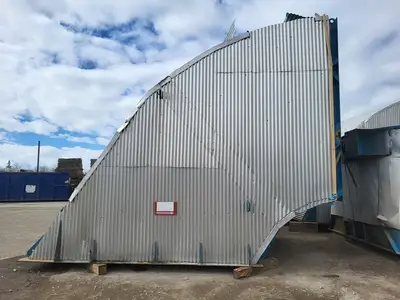

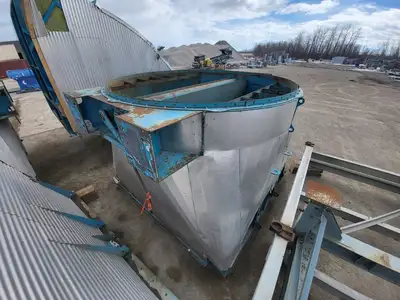

1 x ALPHAIR Axial Ventilation Elbow

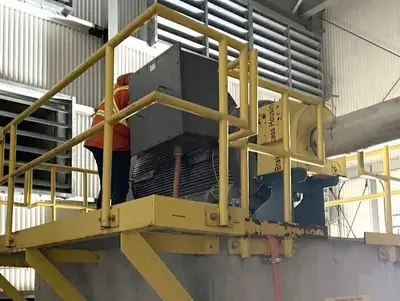

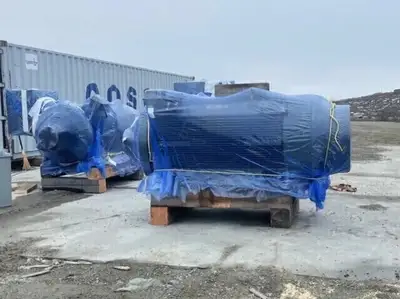

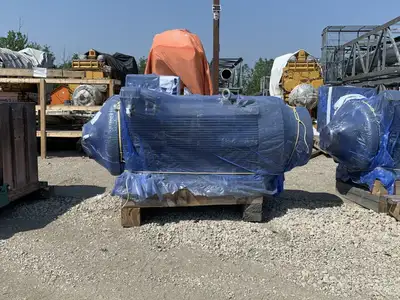

1 x TECO-WESTINGHOUSE 1000hp, 4000V Premium Efficiency 3-Phase Severe Duty Motor

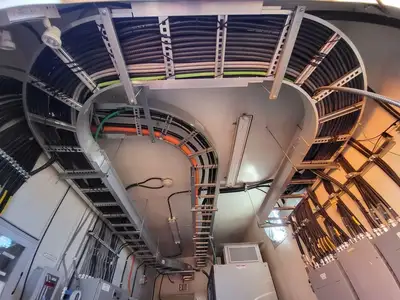

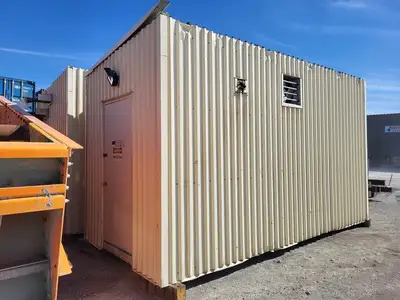

1 x Electrical/Control Module w/ 1000hp VFD
Fan Performance:
Max. Air Flow: 375,000cfm
Min. Air Flow: 276,000cfm
Static Pressure: 12.73 in. wg.
Fan RPM: 880rpm
Inlet Density: 0.075lbs/ft cu.
Blade Tip Angle: 34deg.

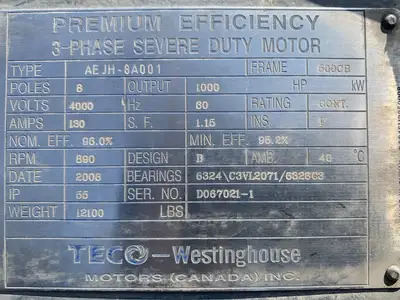

Motor Specifications:
Make: TECO-WESTINGHOUSE
Desc.: Premium Efficiency 3-Phase Severe Duty Motor
Type: AEJH-8A001
Poles: 8
Output: 1000hp
Volts: 4000v
Rating: Cont.
Amps: 130a
RPM: 890rpm
IP: 55

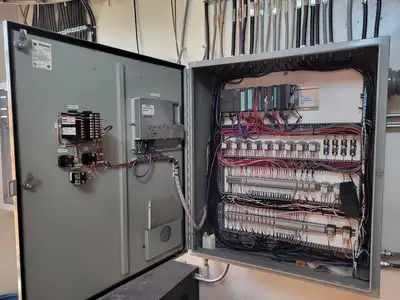

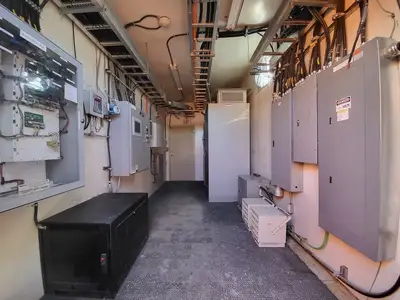

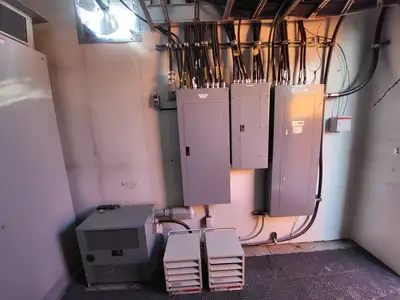

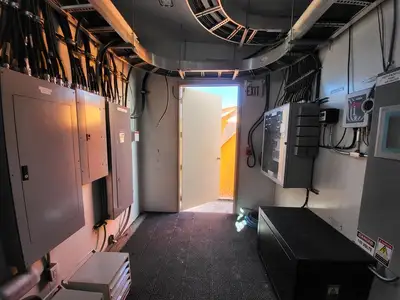

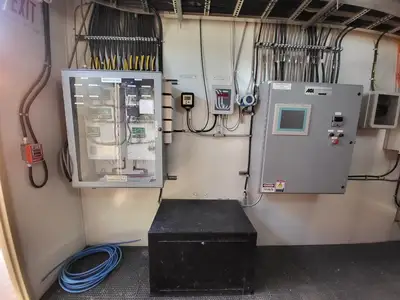

Control Module Components:
ALLEN-BRADLEY PowerFlex 7000, 1000hp VFD
Controls for Heater/Burner Modules (Modules Sold Separately)
Motor and Fan Controls

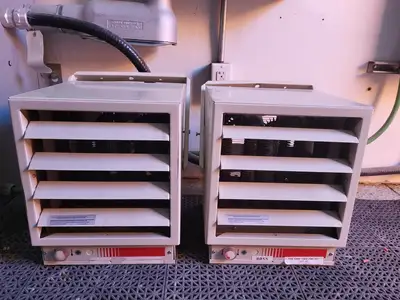

Building Heating Units

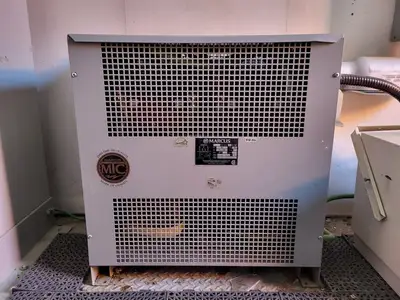

Control Transformers

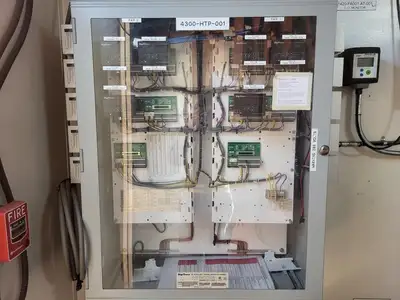

Heat Trace Control Panel and Power Supply for Insulated Fuel Lines (In FAR #1 Control Module Only)
