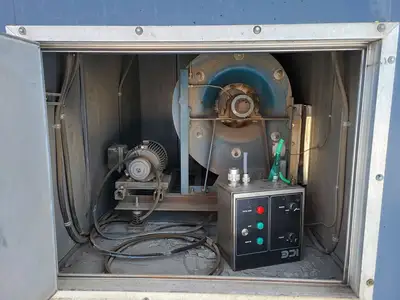

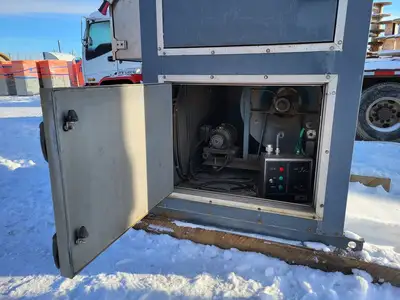

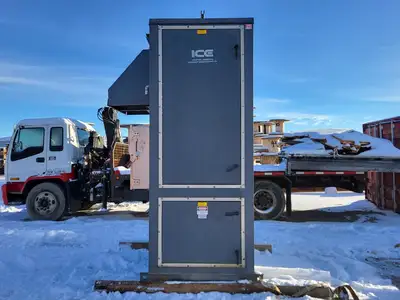

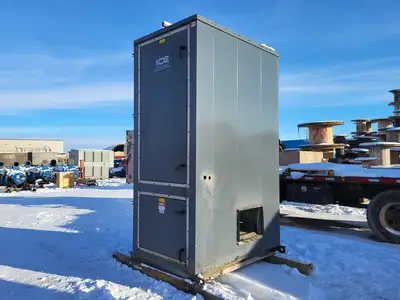

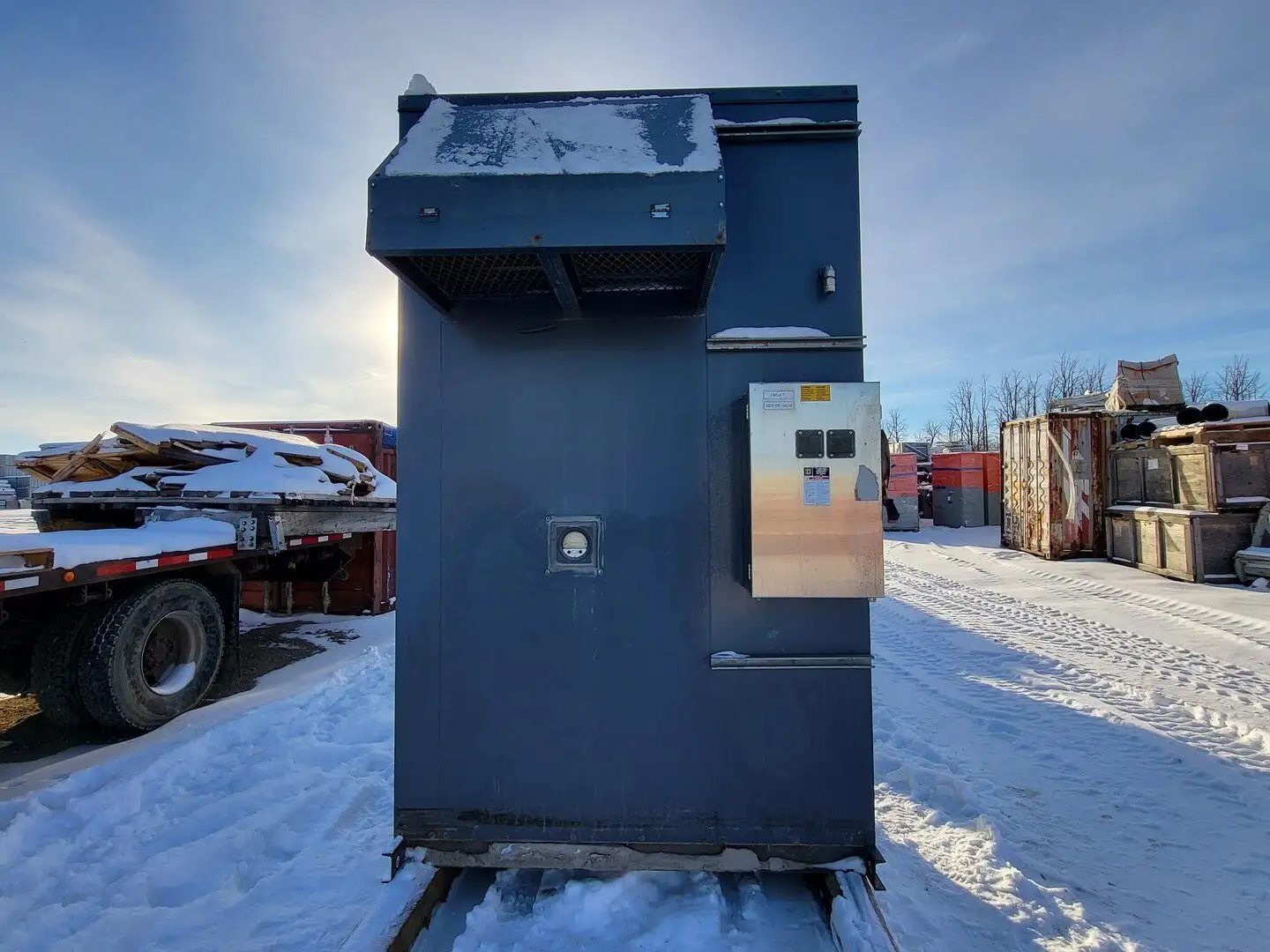

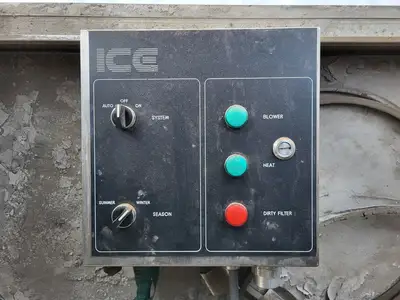

USED INDUSTRIAL COMMERCIAL EQUIPMENT ICE BMAE 115

USD $4,232.83
1 available
Overview
Type:
Blowers
Model:
BMAE 115
Stock #:
117771

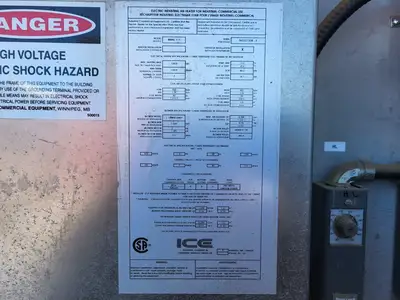

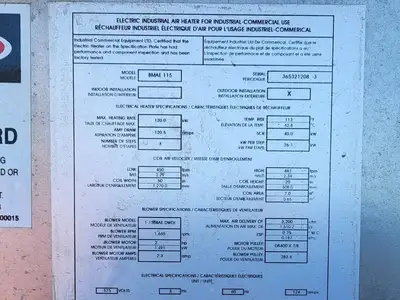

Specifications

Watts: 120,000

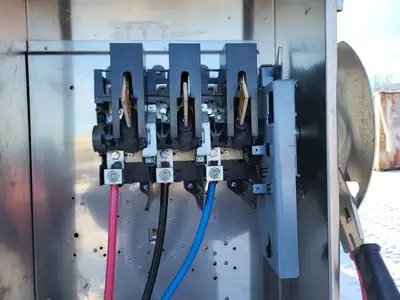

Electrical Specifications: 575V, 124A, 3-Ph, 60hz

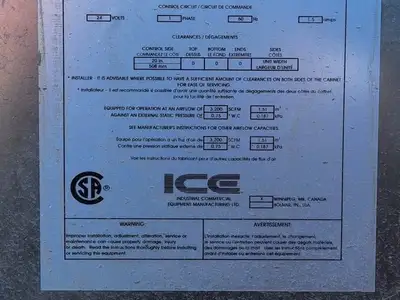

Control Circuit: 24V, 1.5A, 1-Ph, 60hz
Heater Specifications:
Max. Heat Rating: 120kW
Amp Draw: 120.5A
Temp. Rise: 113 Deg. F
Number of Steps: 3
SCR: 40kW
kW/Step: 26.7kW
Coil Air Velocity:
Low: 450fpm (2.29m/s)
High: 461fpm (2.34m/s)
Coil Width: 50in.
Coil Height: 20in.
Coil Area: 7ft^2

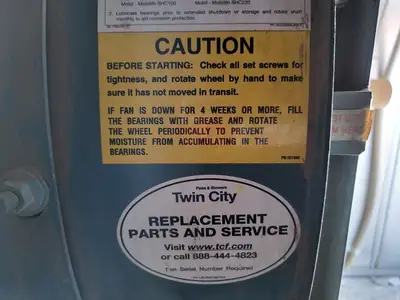

Blower Specifications:
Make: TWIN CITY FAN & BLOWER
Model: 1-150BAE-DWDI
Serial: 12-471869-1-4
Class: 2
CFM Max.: 3200cfm
RPM: 1665RPM

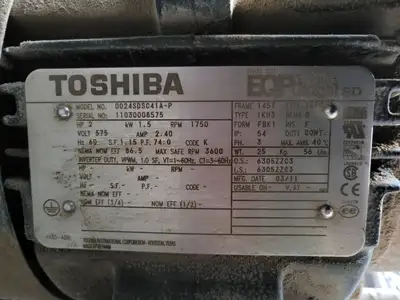

Motor Specifications:
Make: TOSHIBA
Model: 0024SDSC41A-P
Serial: 11030008575
Specifications: 2HP, 575V, 1750RPM, 145T Fr., Type IKH3
