USED 2010 FRICK RWF II 399H

Voltage: 4160 volts
CFM: 2347 cfm
** Included Equipment:
One Compressor Package
Three Aircooled Condenser Units
PDF Condenser Units
PDF Technical Drawings

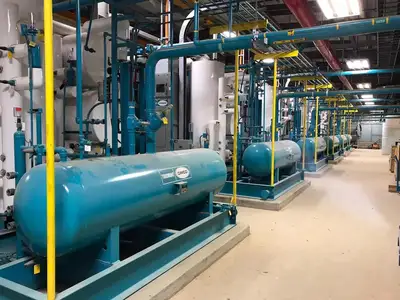

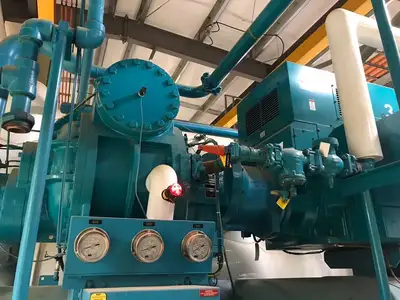

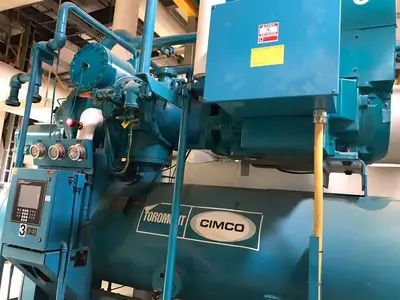

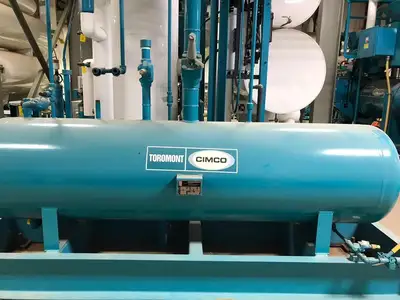

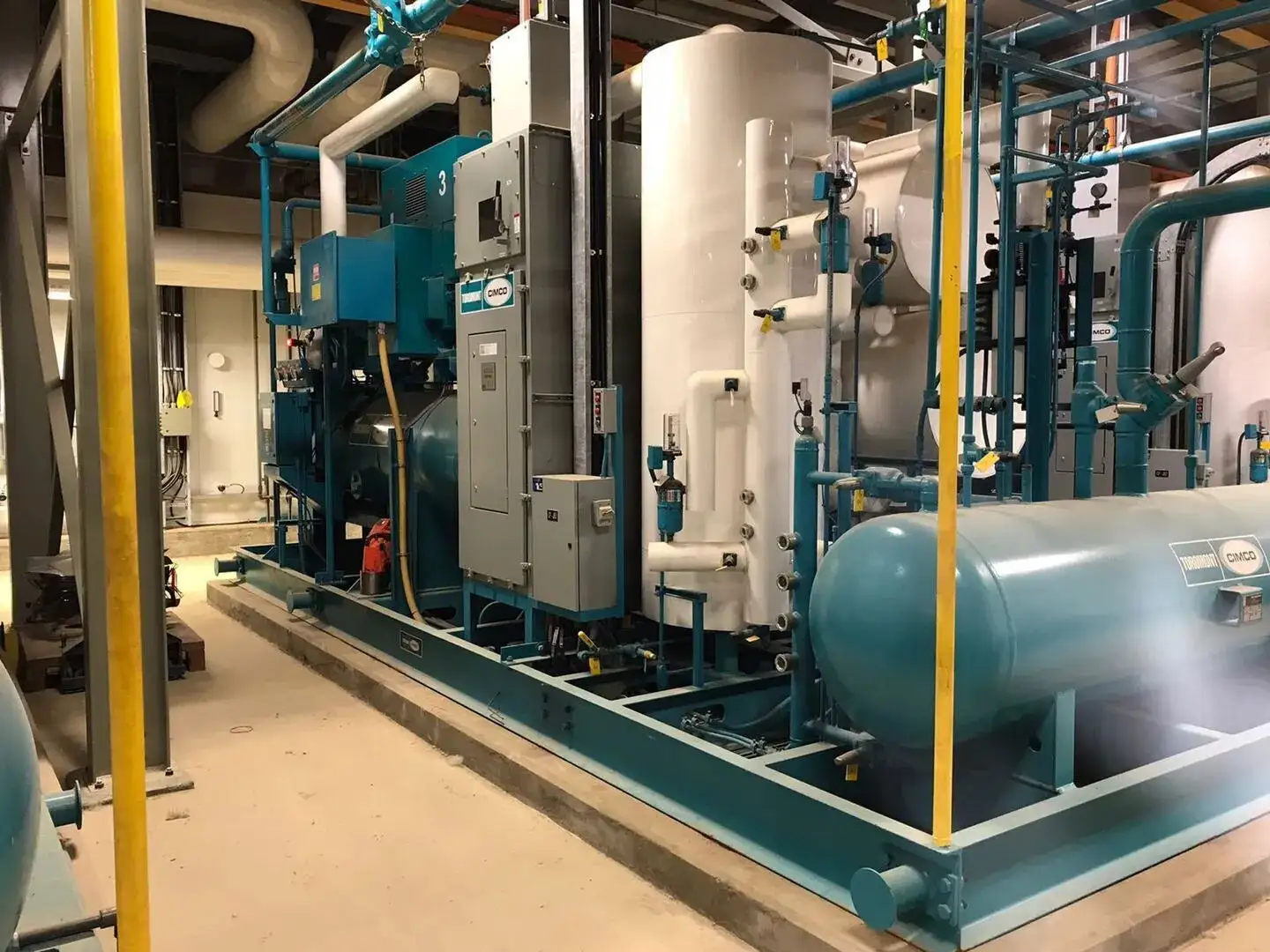

Compressor Package
Package Model: RWF II 399H
Refrigerant: R717 Ammonia
Max Design Pressure: 300 psig

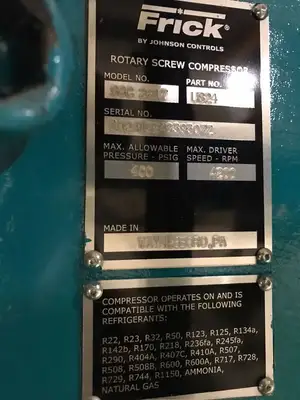

Compressor Model: SGC 2817
Horsepower: 800 hp
FLA: 98 A
Max. Allowable Pressure: 400 psig
Max. Driver Speed: 3580 rpm
(3) Aircooled Condenser Units (NH3)
Model: S-MCAH 092B/2x5-N(H)
Capacity: 1,855,507 Btu/h
Air Flow: 155,793 cfm
Rated Working Pressure: 464 psi
Refrigerant: NH3
Electrical Supply: 575 V, 3-ph, 60 Hz
Fan Motor HP: 4 hp
Qty Fan Motors Per Condenser: 10
RPM: 910 rpm
** The 50 hp and 25 hp Pump Packages shown in the PDFs above can be purchased at additional cost if desired.
** Contact for more info.
