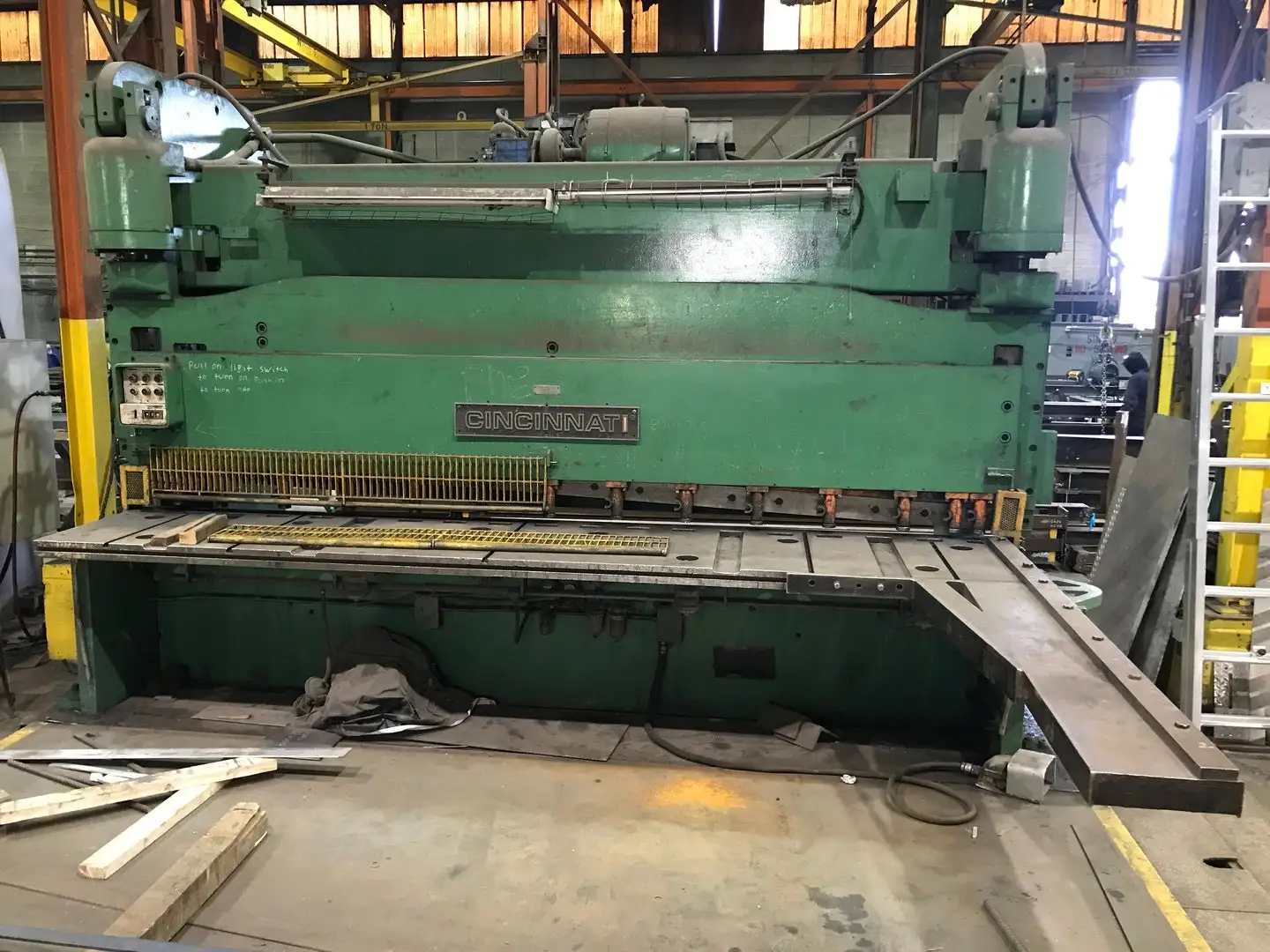

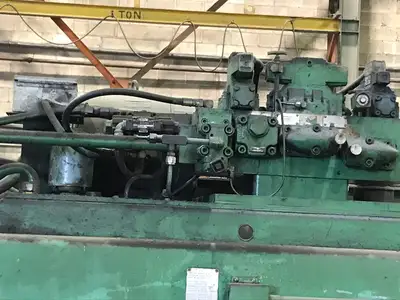

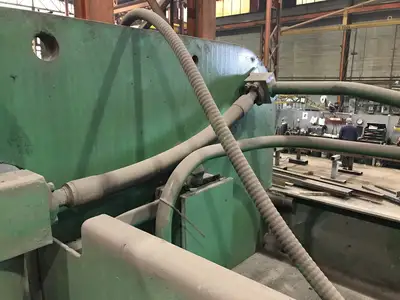

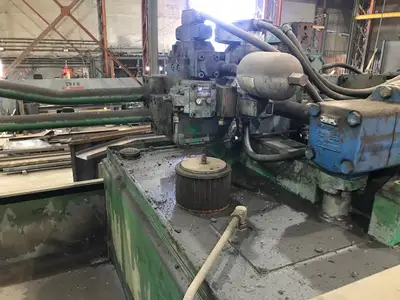

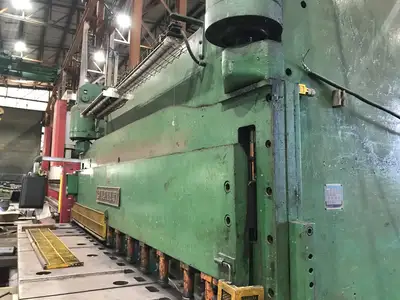

USED CINCINNATI 3DL12

Gauge Capacity: 0.375 in
Horsepower: 30 hp
Bed Length: 3/8" x 12'

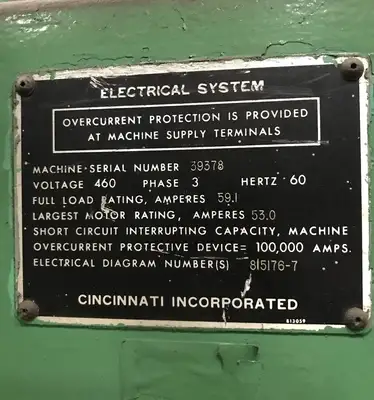

Voltage: 460 volts
Phase: 3-phase
Full Load Rating Amperes: 59.1 Amps
Largest Motor Rating Amperes: 53.0 Amps
Electrical Diagram Numbers: 815176-7

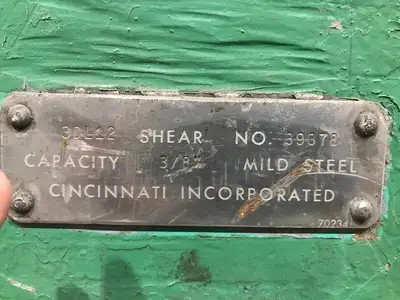

Cut Capacity at 9/32" Rake: 3/8" Mild Steel
Cut Capacity at 7/16" Rake: 1/2" Mild Steel
Cut Length Capacity: 12'
Length of Knife: 148.5"
Length Between Housings: 12' 3"
Length of Gap: 18"
Strokes per minute Full Length: 24 spm
Strokes per minute 24" Length: 50 spm
Nominal Rake Taper per Foot: 6/32"
Frequency: 60 Hz
