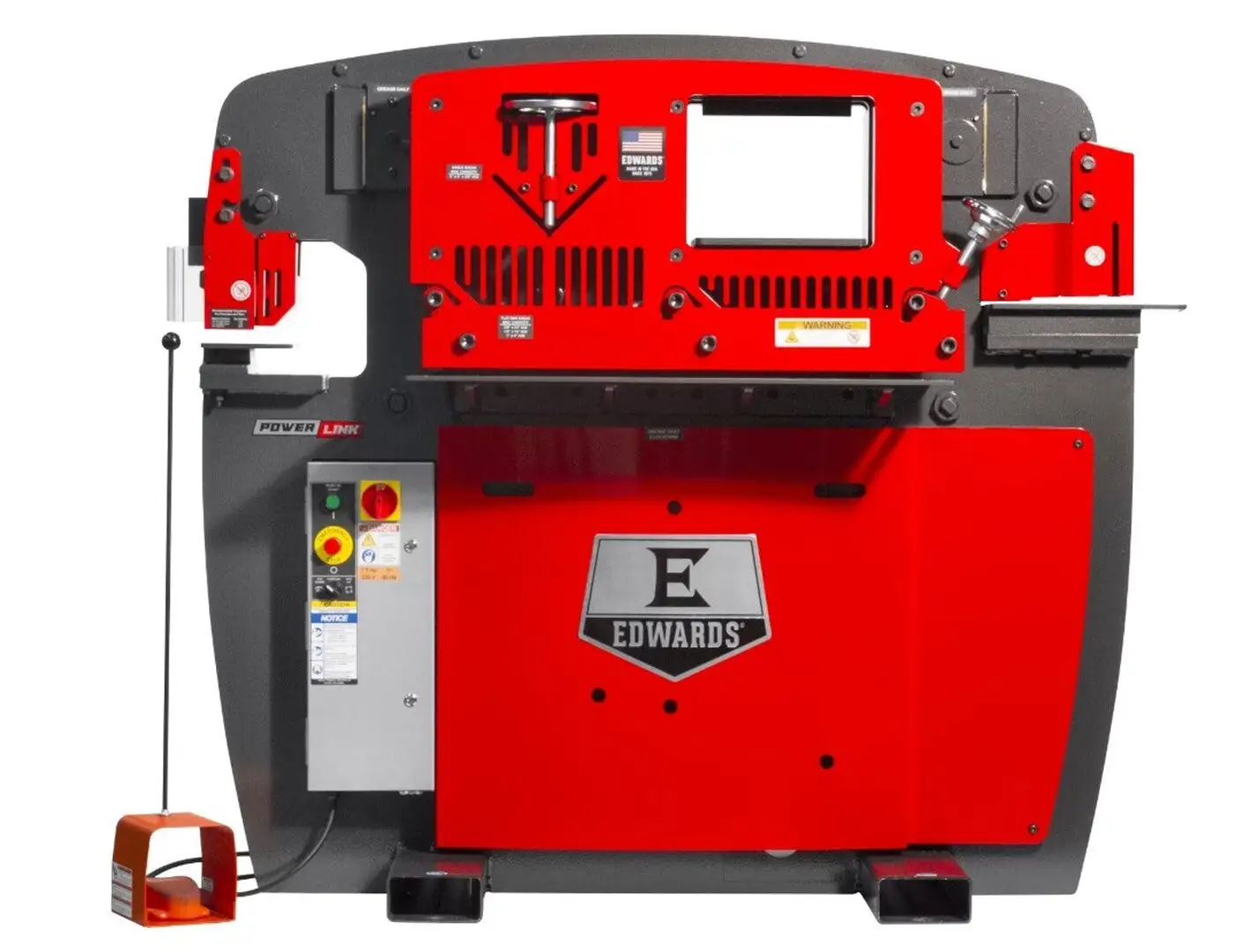

NEW EDWARDS ED9-IW65-3P230-A

Voltage: 230 volts
Phase: 3-phase
Tons: 65 ton
Stock Number: ED9-IW65-3P230-A
Features
Adjustable electric stoke control
Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
ANSI B11.5-1988(02) Compliant Guarding
ETL Certified Controls
Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear, and Coper Notcher. Open Cavity (1): Customize your ironworker with four optional attachments including Brake, Rod Shear, Multi-Shear, and Pipe Notcher
Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
Optimized workstation heights for improved efficiency
Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Amperes: 22 Amp
Angle Shear Max Capacity 3/8": 5 x 5
Angle Shear Work Height: 43-1/2"
Coper Notcher Max Capacity: 2-1/2" x 5" x 3/8"
Coper Notcher Work Height: 39-1/2"
Flat Bar Shear Max Capacity 1/2": 14
Flat Bar Shear Max Capacity 3/8": 24
Flat Bar Shear Max Capacity: 3/8" x 24" 1/2 x 14"1x4
Flat Bar Shear Max Round Capacity: 1"
Flat Bar Shear Max Round: 1"
Flat Bar Shear Max Square: 1"
Flat Bar Shear Rating: 65 Tons
Flat Bar Shear Work Height: 34-1/2"
Hydraulic Pump: 10-1/2 gpm
Hydraulic Reservoir: 17 gal
Hydraulics: 3500 psi
Motor Amps: 22 Amp
Horsepower Motor: 7.5 hp
Motor Speed: 1765 rpm
Overall Dimensions (L x W x H): 45" x 62"-1/8 x 57"
Punch Max Capacity: 1-1/16 diam. in 3/4 mild steel
Punch Open Height: 8-3/4"
Punch Rating: 65 Tons
Punch Shut Height: 6-15/16"
Punch Stroke: 1-13/16"
Punch Work Height: 36-9/16"
Rating: 65 Tons
Reservoir: 17 Gal
Valve Pressure: 3500 psi
